6146/6156 DC Voltage/Current Generators Operation Manual
4.2 Functions in Detail
4-4
4.2 Functions in Detail
4.2.1 Operations in DC Source Mode
DC voltage or DC current is output in the DC source mode.
The following table shows operations in the DC source mode.

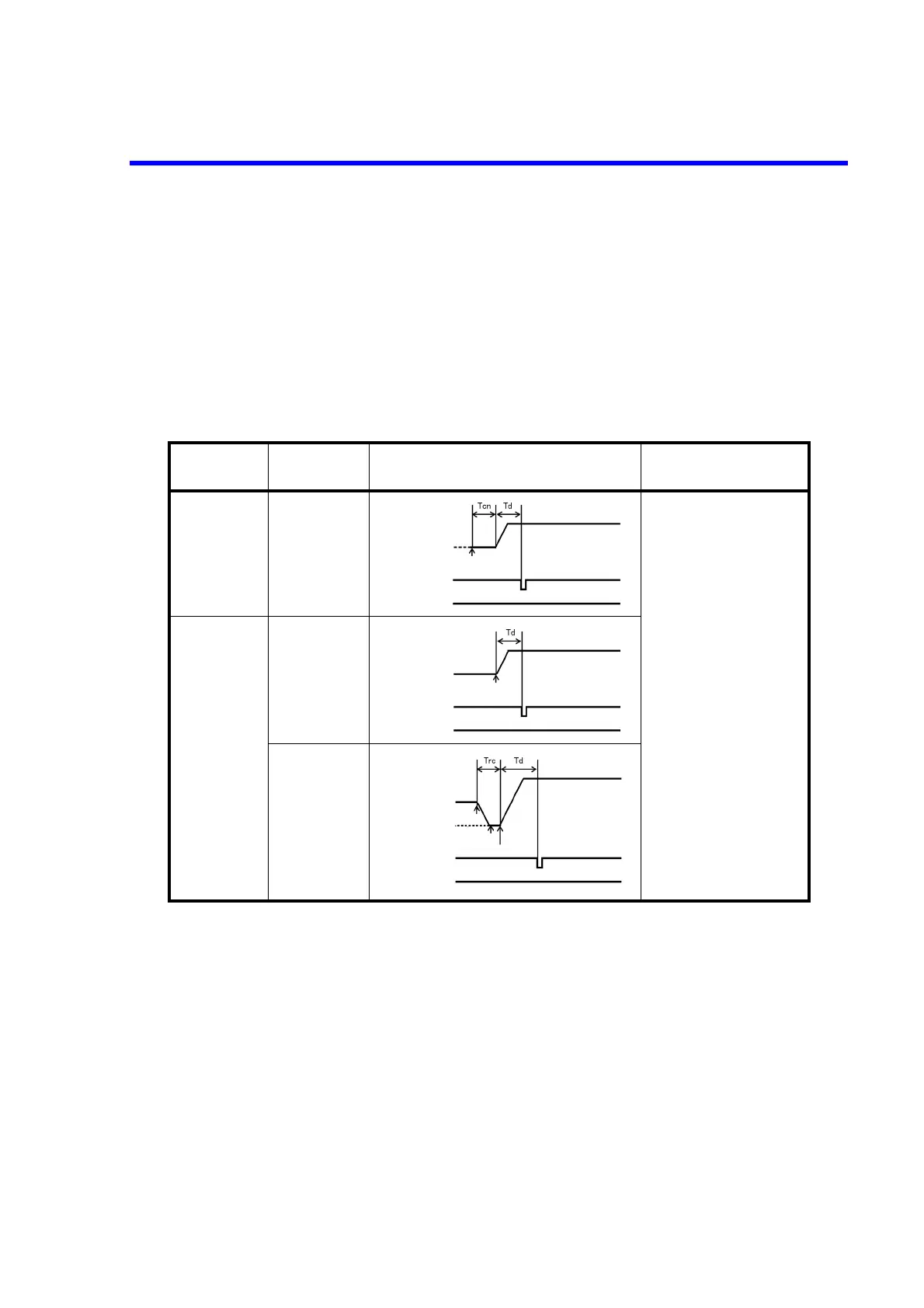

Table 4-2 Operations in DC Source Mode
Operational
condition
Description Operation Remarks
Operate ON Outputs the set-
ting source value
continuously.
Td:
READY output delay time
Tcn:
Operate processing time
Trc:
Range change processing time
Changing the
source value
Source value
changing does not
induce range
changing.
Source value
changing induces
range changing.
READY OUT
SYNC OUT
Output
Standby
Operate
Source value
READY OUT
SYNC OUT
Output
Previous
value
Changes the
source value
Changed source value
READY OUT
SYNC OUT
Output
Starts changing
the source value
Sets the source value
Changed source value
Changes the range
0
Previous
value
