6146/6156 DC Voltage/Current Generators Operation Manual
2.1.1 Front Panel
2-3
2.1.1.3 OUTPUT CONTROL Section

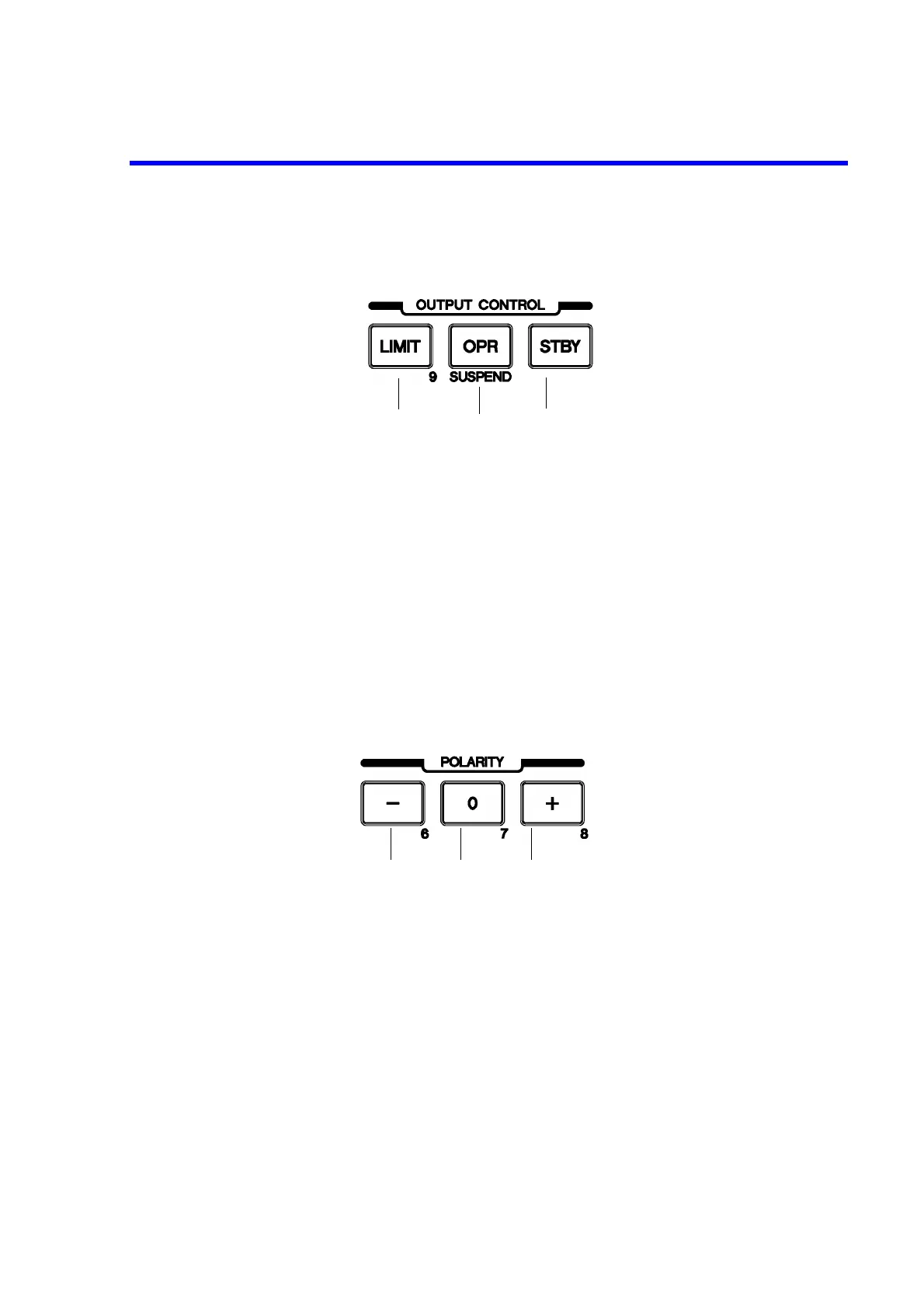

Figure 2-4 OUTPUT CONTROL Section
1. LIMIT key Sets the limit values.
2. OPR key Switches between Operate and Suspend*.
*: Suspend status outputs the suspended voltage without turn-
ing OFF the output relays. OPR indicator blinks in Suspend
status.
3. SUSPEND (SHIFT, OPR) key Sets Suspend regardless of Operate or Standby status.
4. STBY key Sets the output status to Standby.
2.1.1.4 POLARITY Section
Figure 2-5 POLARITY Section
1. - key Sets the polarity of the source value to negative.
2. 0 key Sets the source value to zero level.
3. + key Sets the polarity of the source value to positive.
1
2, 3
4
1
2
3
