6146/6156 DC Voltage/Current Generators Operation Manual
4.2.10 Operating Multiple 6146/6156
4-28
2. Three unit synchronous operation using SYNC OUT
The source timing is synchronized in the sweep source mode or memory recall mode. Operating the
master makes its slaves step up as well.
The following shows the setting and connection for the synchronous operation.

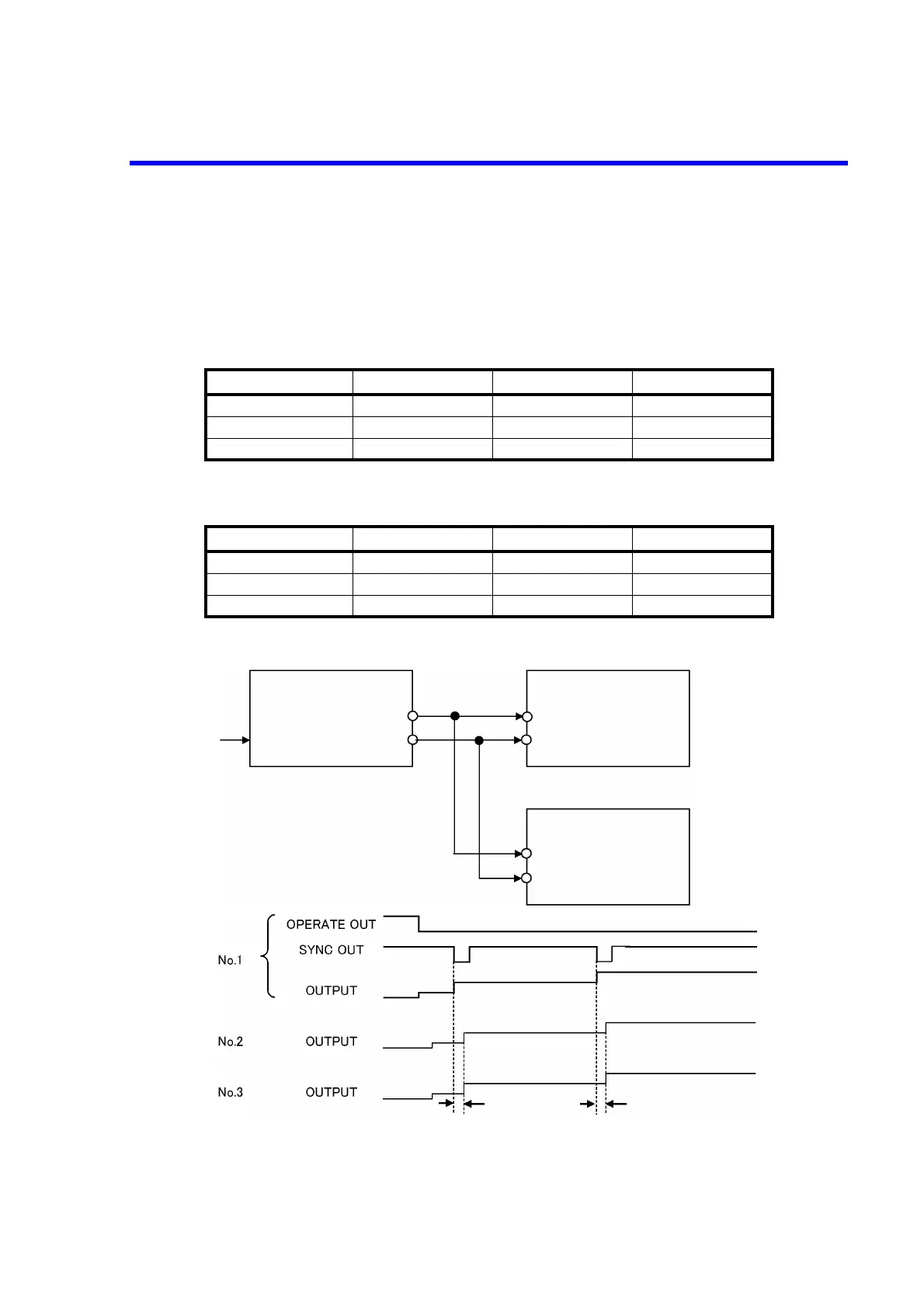

Figure 4-16 Connection for Three Unit Synchronous Operation Using SYNC OUT
Table 4-11 Setting for Three Unit Synchronous Operation in Sweep Source Mode Using SYNC OUT
Parameter No. 1 (master) No. 2 (slave) No. 3 (slave)
Sweep mode Other than REPEAT HOLD HOLD
E.SIG SYNC - -
OP.I/O OP.OUT OP.SBY OP.SBY
Table 4-12 Setting for Three Unit Synchronous Operation in Memory Recall Mode Using SYNC OUT
Parameter No. 1 (master) No. 2 (slave) No. 3 (slave)
Scan Mode Any setting HOLD HOLD
E.SIG SYNC - -
OP.I/O OP.OUT OP.SBY OP.SBY
Operation
6146/6156 No.1
OPERATE IN/OUT
SYNC OUT
(Master)
(Slave)
(Slave)
6146/6156 No.2
OPERATE IN/OUT
TRIGGER IN
6146/6156 No.3
OPERATE IN/OUT
TRIGGER IN
Tsync
Synchronous delay time:Tsync
Tsync
To Next Page
