6146/6156 DC Voltage/Current Generators Operation Manual
1.5.2 Power Specification
1-6
1.5.2 Power Specification
Table 1-4 below shows the 6156/6156 power supply specification.
CAUTION: To prevent damage to the 6146/6156, do not apply a voltage or frequency that exceeds the specified
range.
Ensure that the power voltage setting on the instrument rear panel matches the voltage of the commercial
power supply.

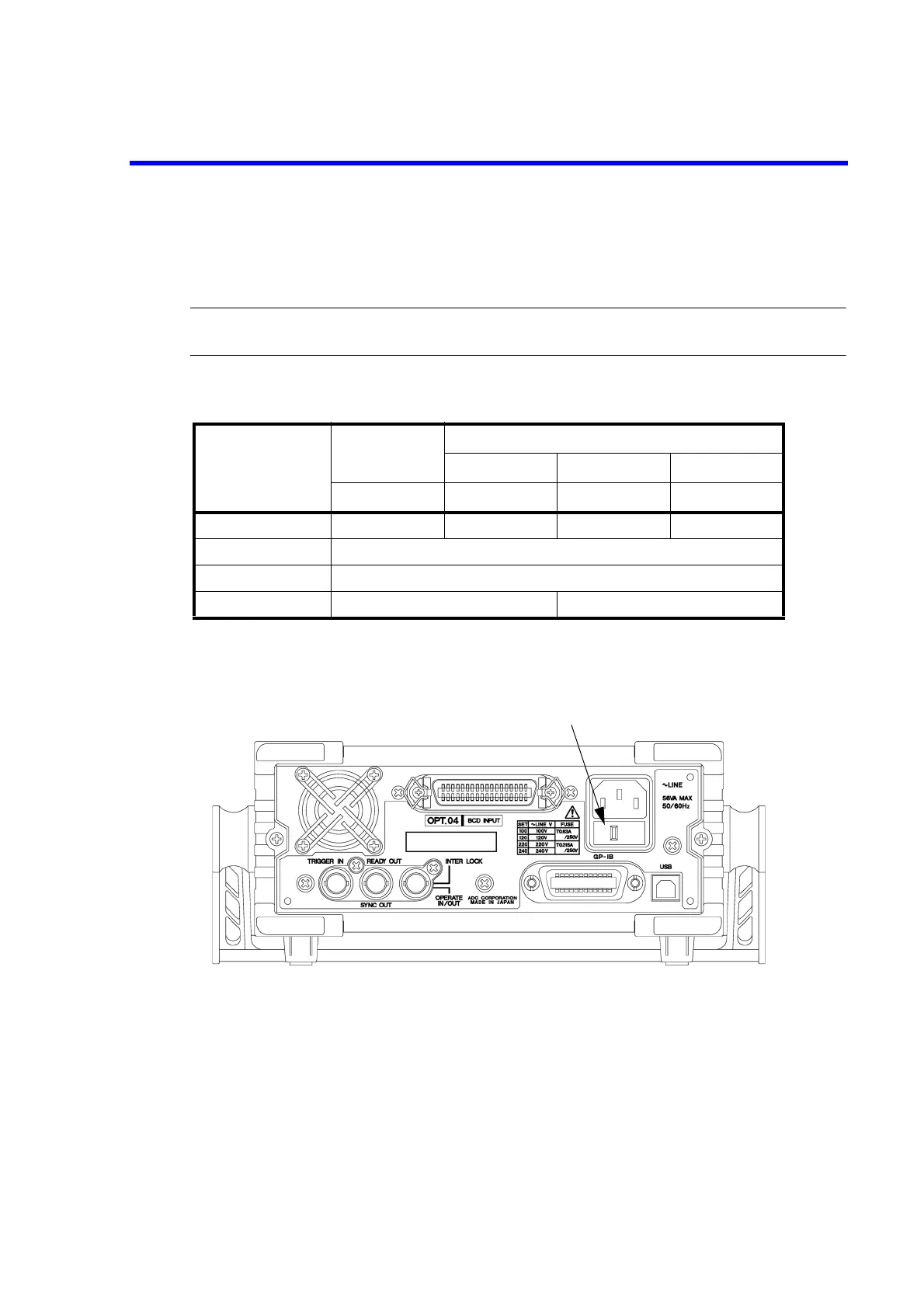

Figure 1-2 Set Power Voltage Indicator
Table 1-4 Power Supply Specification
Standard
Optional
32 42 44
100 VAC 120 VAC 220 VAC 240 VAC
Input voltage range 90 V to 110 V 108 V to 132 V 198 V to 242 V 207 V to 250 V
Frequency range 48 Hz to 66 Hz
Power consumption 56 VA or less
Fuse T0.63 A/250 V T0.315 A/250 V
Voltage setting indicator
