4.2.5 Source Function
4-13

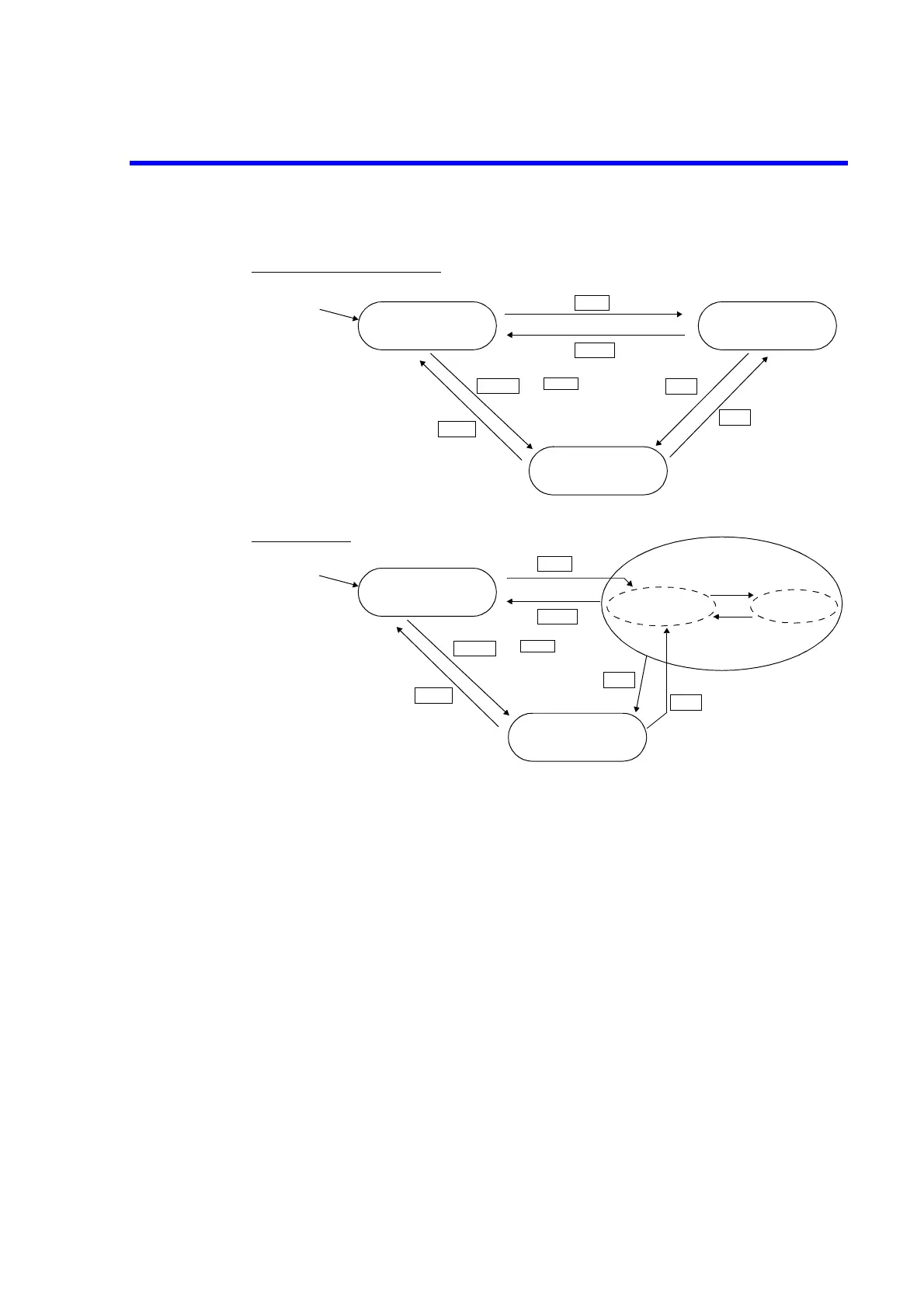

Figure 4-5 Shifting between Operate, Standby and Suspend
2. Suspend function
Using the Suspend function can reduce unnecessary relay ON/OFF action, which reduces deteriora-
tion of the throughput due to relay operation time and improves the life spans of the relays.
Therefore, setting in Suspend status is recommended whenever turning OFF the output to change the
source conditions.
For the 3 V or 30 V range, Suspend status can be selected between HiZ (high resistance: constant cur-
rent of ±5 mA) and LoZ (low resistance).
For other ranges, the statuses shown in the following table are applied regardless of the suspend set-
ting.
Figure 4-6 shows a conceptual diagram of output status, and Table 4-6 shows output statuses and in-
ternal setting values.
Standby Status
DC source mode/memory recall mode
Operate Status
Suspend Status
Power ON
OPR
STBY
OPR
STBY
SHIFT
+
SUSPEND
OPR
Standby Status
Sweep source mode
Operate Status
Suspend Status
Power ON
OPR
STBY
OPR
STBY
SHIFT
+
SUSPEND
Bias output status
Sweep start
Sweep status
Sweep stop
OPR
