6146/6156 DC Voltage/Current Generators Operation Manual
2.2.5 Polarity Setting Mode (Unipolar/Bipolar)
2-31
2. Rotate two clicks counterclockwise.
The polarity of the source value changes to negative.
The polarity also can be changed by or .
Changing the source value in the unipolar mode (POL UN.POL)
When the source value reaches zero, the source value cannot be changed any more
with , or .
That is, the source value cannot be changed from positive polarity to negative polarity
or vice versa continuously.
1. Move the cursor to the position indicated in the figure below.
Example using the 6156
2. Rotate two clicks counterclockwise.
The source value becomes zero, however the polarity does not change to nega-
tive.
A buzzer sounds, notifying that no more operation is available.
3. To change the polarity to negative, press .

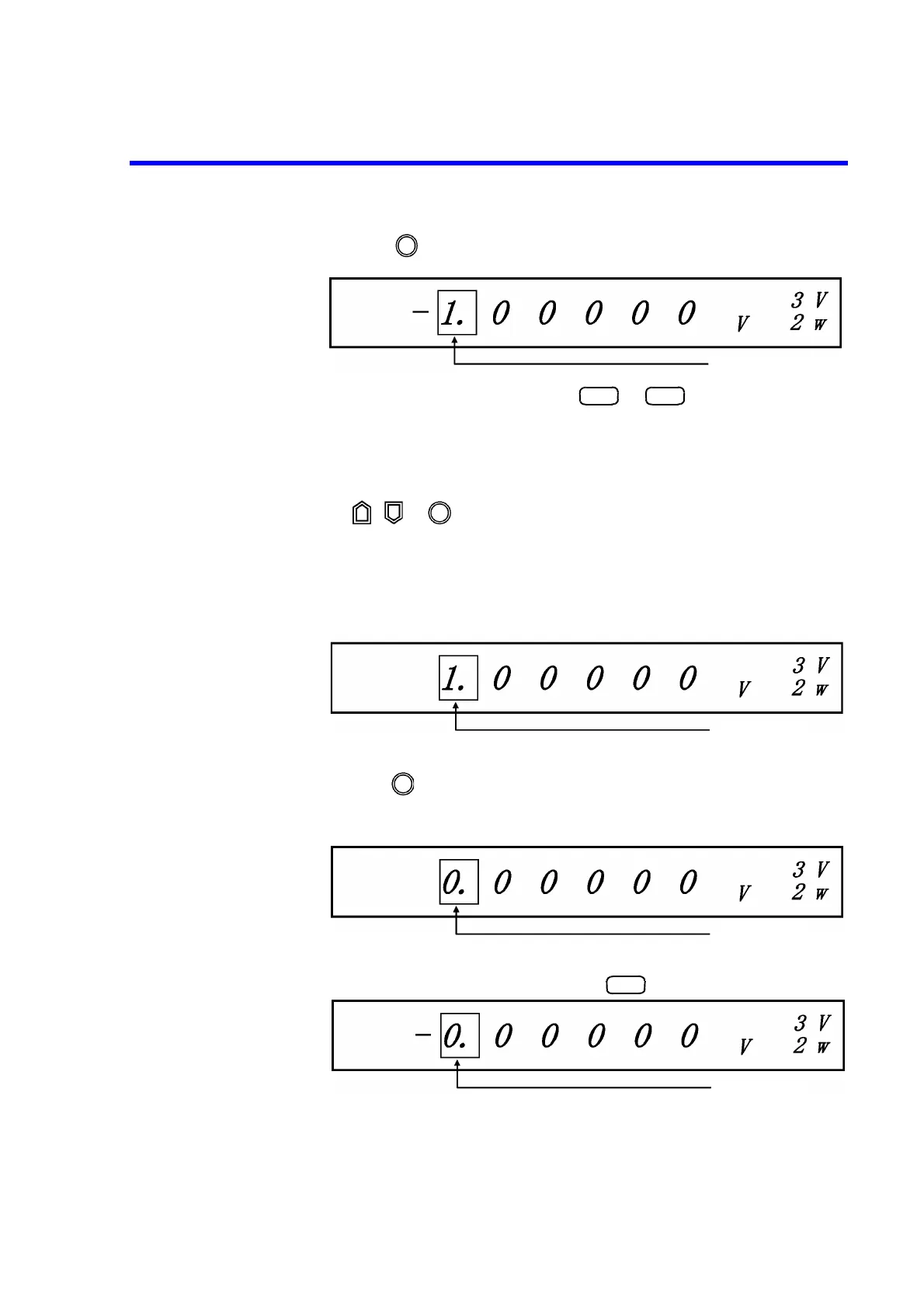

Cursor (blinking)
-
+
Cursor (blinking)
Cursor (blinking)
-
Cursor (blinking)
