ADCMT 6156 - Page 67

6146/6156 DC Voltage/Current Generators Operation Manual
2.2.6 Count Fix Function
2-33

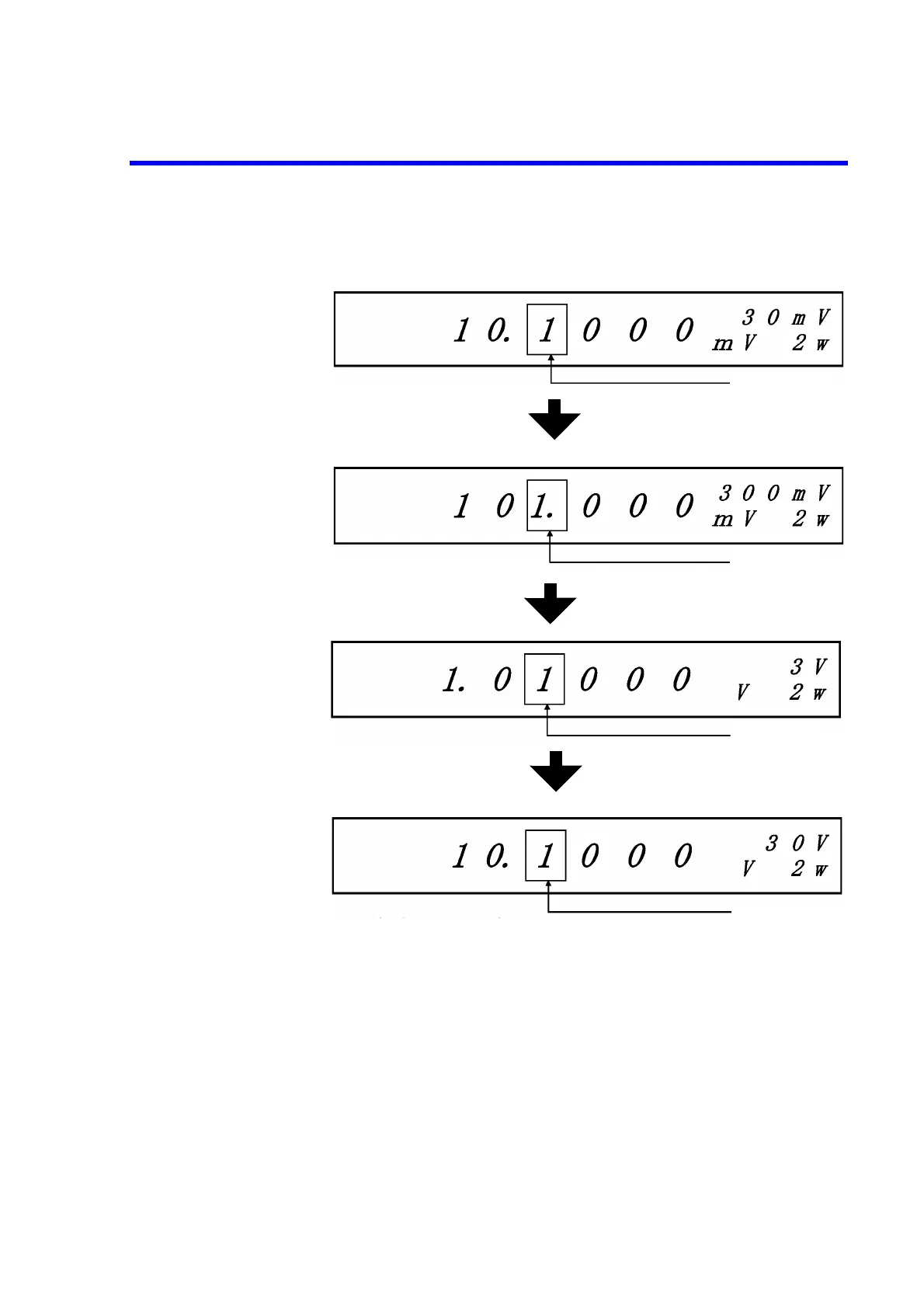

Changing the range with the count fix set to ON (CO.FIX.ON)
Example using the 6156
The cursor position does not change at the range change.
UP
(300 mV range)
Source value: 101 mV
(30 mV range)
Source value: 10.1 mV
Cursor (blinking)
Cursor (blinking)
UP
UP
(30 V range)
Source value: 10.1 V
(3 V range)
Source value: 1.01 V
Cursor (blinking)
Cursor (blinking)
