ADPRO iFT Series Hardware Installation Manual
27817_08 33

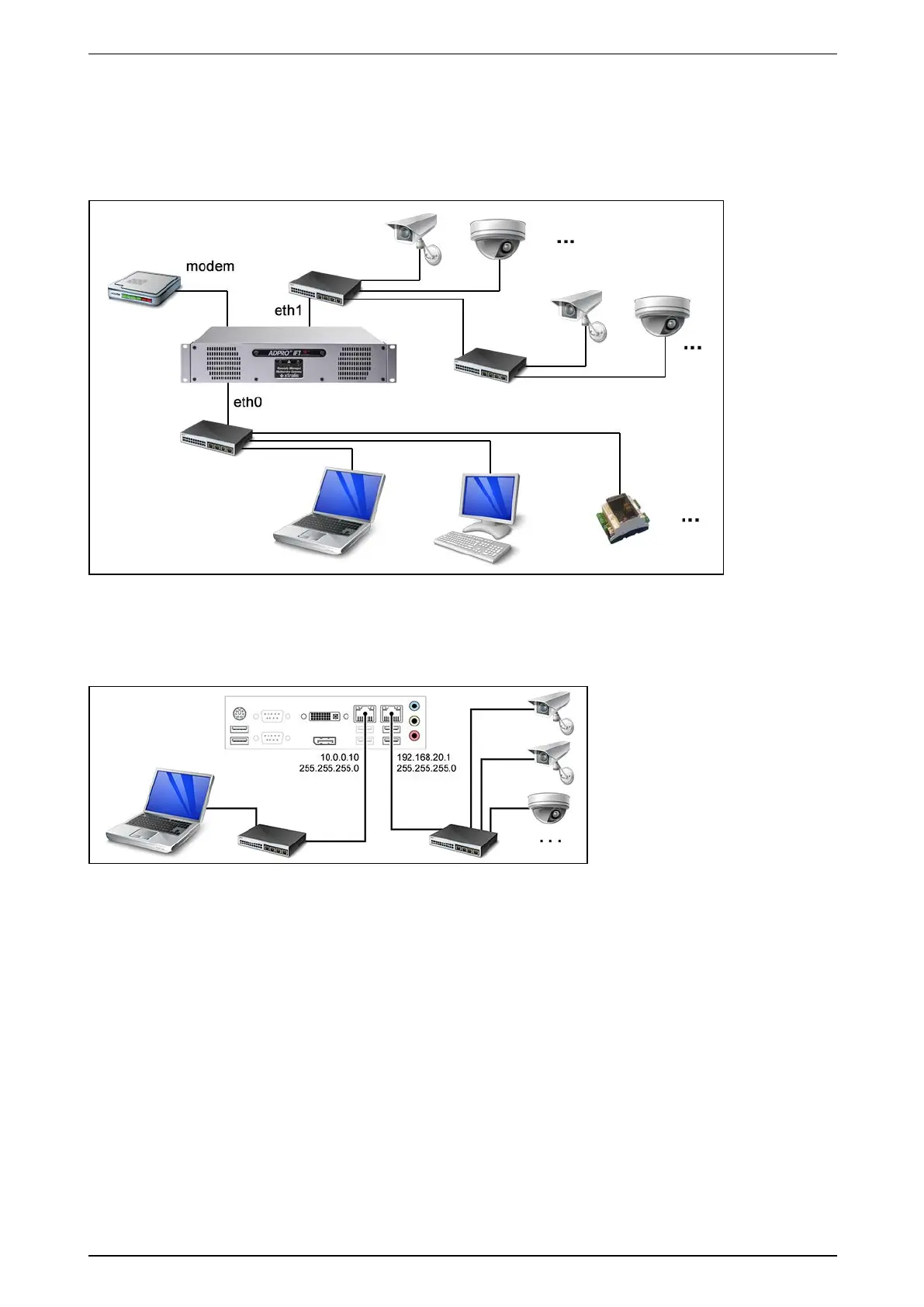

AllIPcamerasconnectedtoeth1needanIPaddressinthesamerange(samenetworksegment).However,in
largerbuildingsitmayhappenthattheIPcamerasareonmultiplenetworksegmentsusingmultipleIPaddress
ranges.AsoffirmwareversionXO4.0,youcanusestatic routes toextendtheeth1cameranetworktothese
othernetworksegments.Fortheconfigurationofthestaticroutes,seetheXO Client Software User Manual
(21796).
ThePH10LUmotherboardhastwoLANconnectorsonboard.JustconnecttheIPcameranetworktotheeth1
portusinganEthernetcable.
YoumustsettheEthernetconnectionofyourXOdevice(eth0)andtheEthernetconnectionofthecamera
network(eth1)todifferentIPranges.
