7 Main I/O Card
7.1 Features
TheMainI/O(MIO)NextGenerationcardisaninternalI/Ocard,pre-installedinsidetheiFTSeriesdevice.Itis
alsocalledOTB(on-the-box)card.
TheMIOcardoffers:
l 8tamper-protectedinputsand4relayoutputs(rated14VDC@1A)
l GNDforeveryinput
l driverforaudiomodule/VM22audioswitcher;withimprovedaudioquality
l driverforthefrontLEDindicators.
IfyouneedtoreplacetheMIOcard,youcanfinddetailedinstallationinstructionsinthedocumentMain I/O and
Extension I/O Cards – Next Generation(27820).

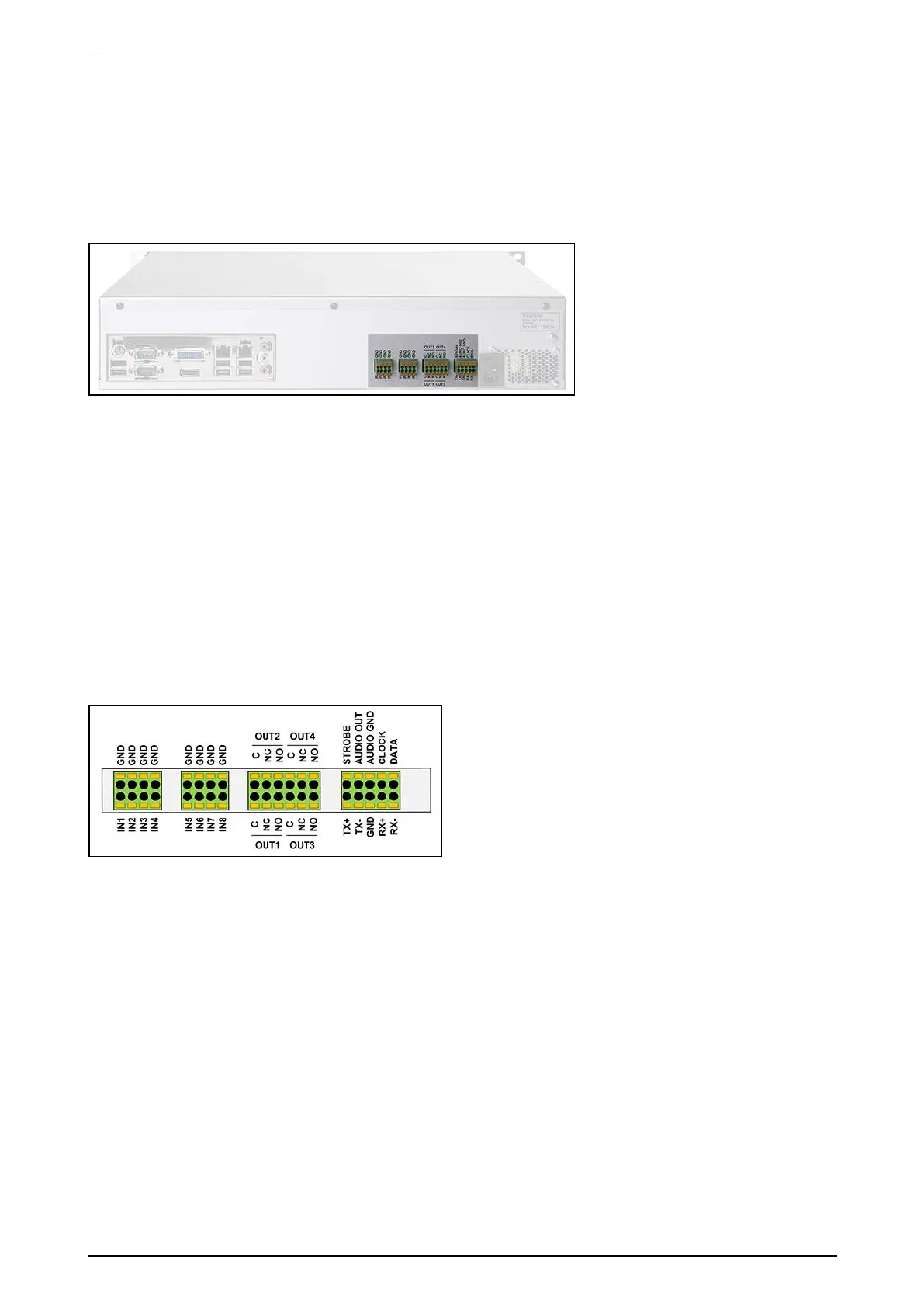

7.2 Connection of Inputs and Outputs
7.2.1 Overview of Inputs and Outputs
IN1–8arevoltage-freecontactinputs.
OUT1–4arevoltage-freerelaycontactoutputs.
7.2.2 Input Circuits
BelowaretheNEOL,SEOL,andDEOLconfigurationsfortheinputs.Forcorrectoperation,youalsohaveto
indicatetheusedinputcircuitconfigurationintheXOclientsoftware.Formoreinformation,seetheXO Client
Software User Manual(21796).
