ADPRO iFT Series Hardware Installation Manual

27817_08 49

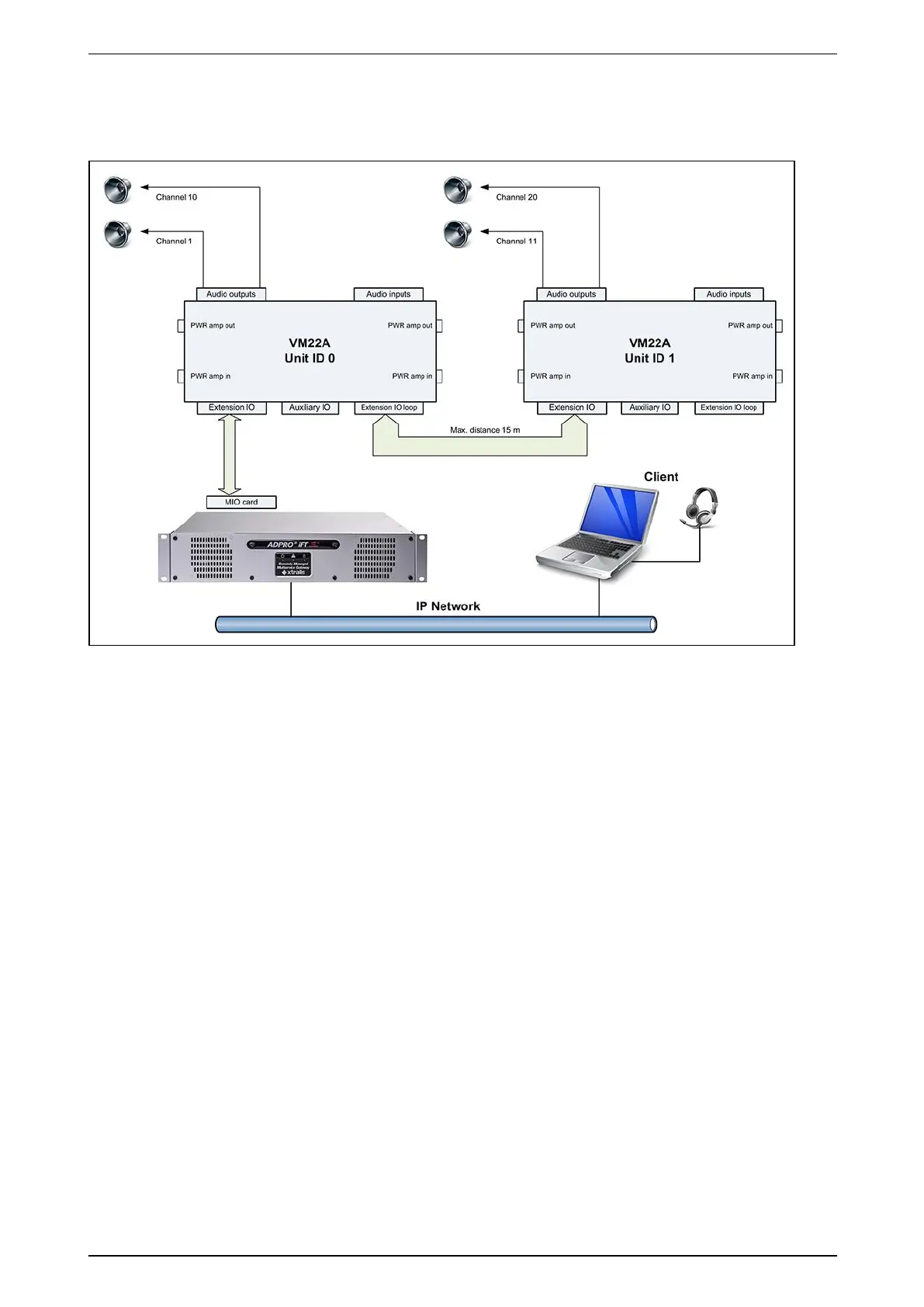

Thediagrambelowshowsatypicalsetupthatallowstalkbackonthemonitoredsite:itprovides20audiooutputs

(loudspeakers)viatwoVM22Aunitsincascade.AheadsetconnectedtotheclientPCservesastheaudioinput

(microphone).

Formoreinformation,seetheVM22A Audio Switcher – Installation and User Manual.
