ADPRO iFT Series

To Next Page

To Previous Page

iFT Series Hardware Installation Manual ADPRO

56 27817_08

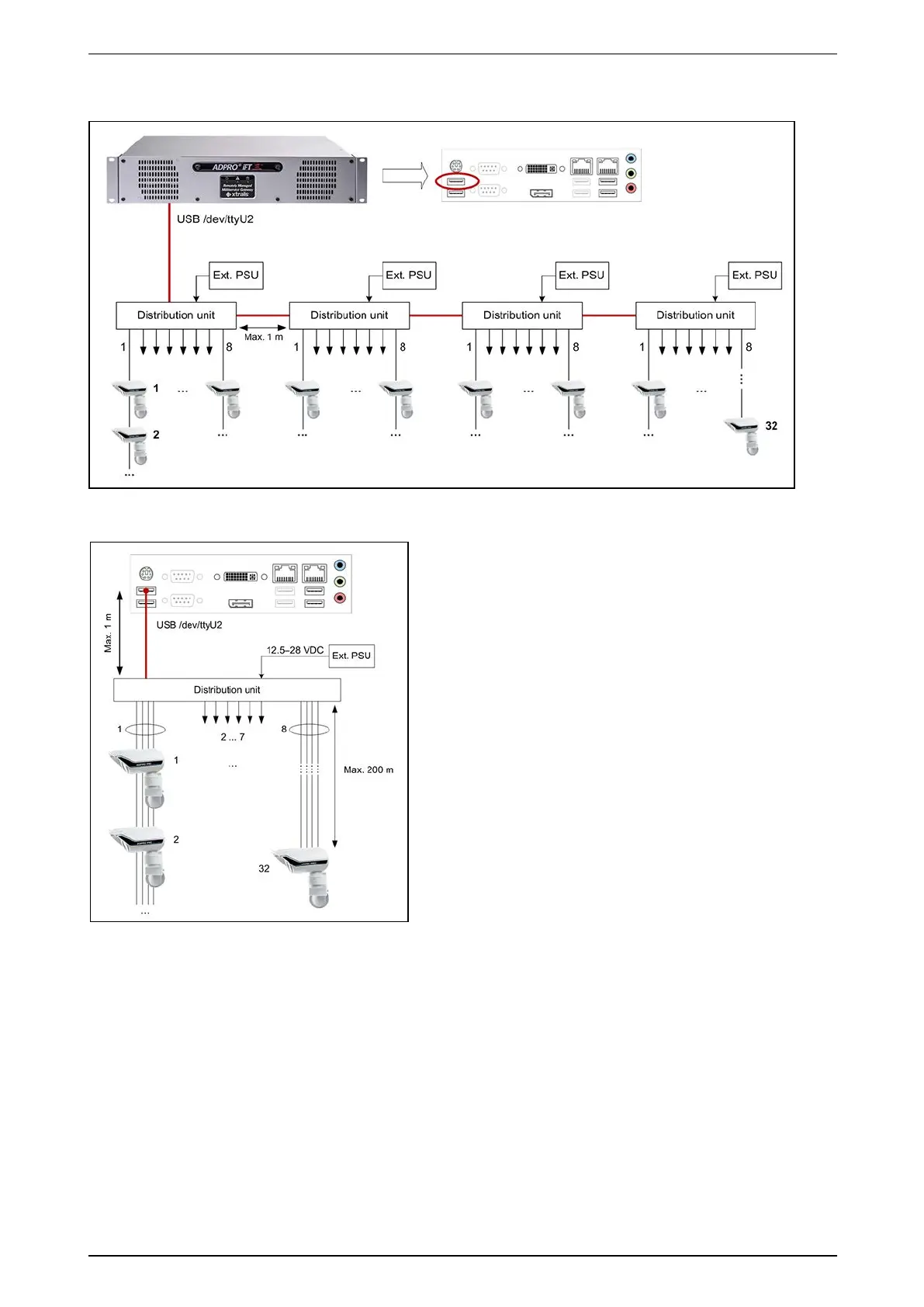

Anexampleofdistributionunitsincascade:

Adetailedviewofaconnecteddistributionunit:

ThemaximumlengthoftheUSBcablebetweentheXO

deviceandthedistributionunitis1m.

FourwiresconnectthePIRdetectortothedistributionunit

(powersupplyandcommunication).

ThemaximumdistancebetweendistributionunitandPIR

detectoris200m.Ifthedistanceislongerthan200m,then

thePIRdetectorneedsaseparatelocalpowersupply.
