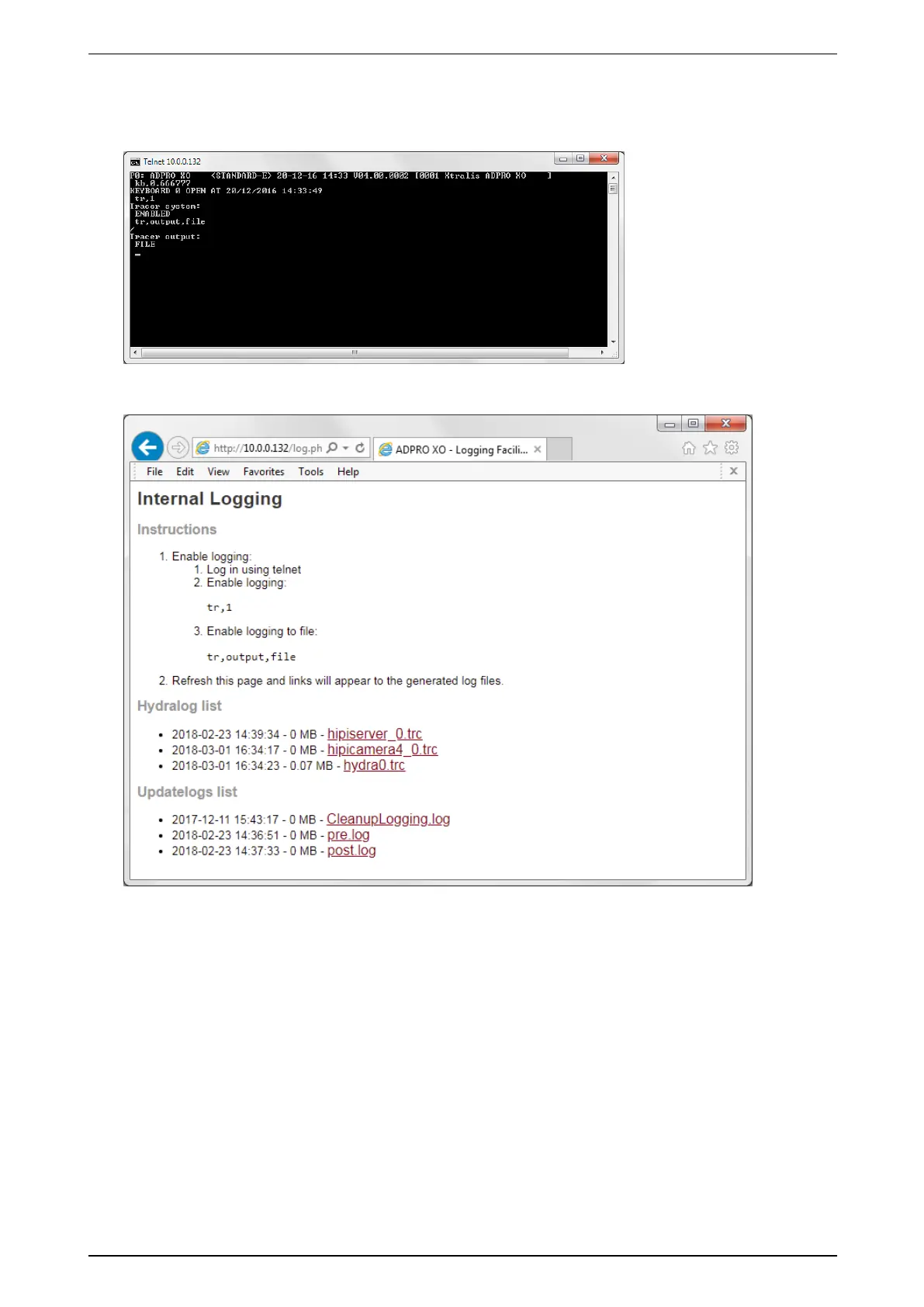

2. Toenablelogging,connecttothedeviceviaTelnetandenterthefollowingTelnetcommands:

tr,1

tr,output,file

Afteryouhaveenabledlogging,linkstothelogfilesappearonthewebpageintheLog list:

3. Toretrievealogfile,clickthelinkonthewebpage.

Dependingonyoursystemsettings,thesystemwillopenthefileinthebrowser,orwill(askto)download

thefile.
