Hybrid Standalone NVR User Guide 3 Local Menu Operations
The Main Stream supports: 2048x1536 (3M), 1920x1080 (1080P), 1280x1024 (SxGA),
1280x960 (1.3M), 1280x720 (720P), 704x576 (D1).
The Sub Stream supports 704x576 (D1), 352x288 (CIF).
Frame Rate (FPS)
This ranges from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in PAL mode.
Bit Rate Type
The system supports two types: Constant Bit Rate (CBR) and Variable Bit Rate (VBR). In VBR mode,
you can set video quality.
Quality
Only appears when VBR is selected above. There are six levels ranging from 1 to 6. The sixth level
has the highest image quality.
Audio / Video
Use this checkbox to enable or disable the video/audio.
3.2.3.2 Overlay

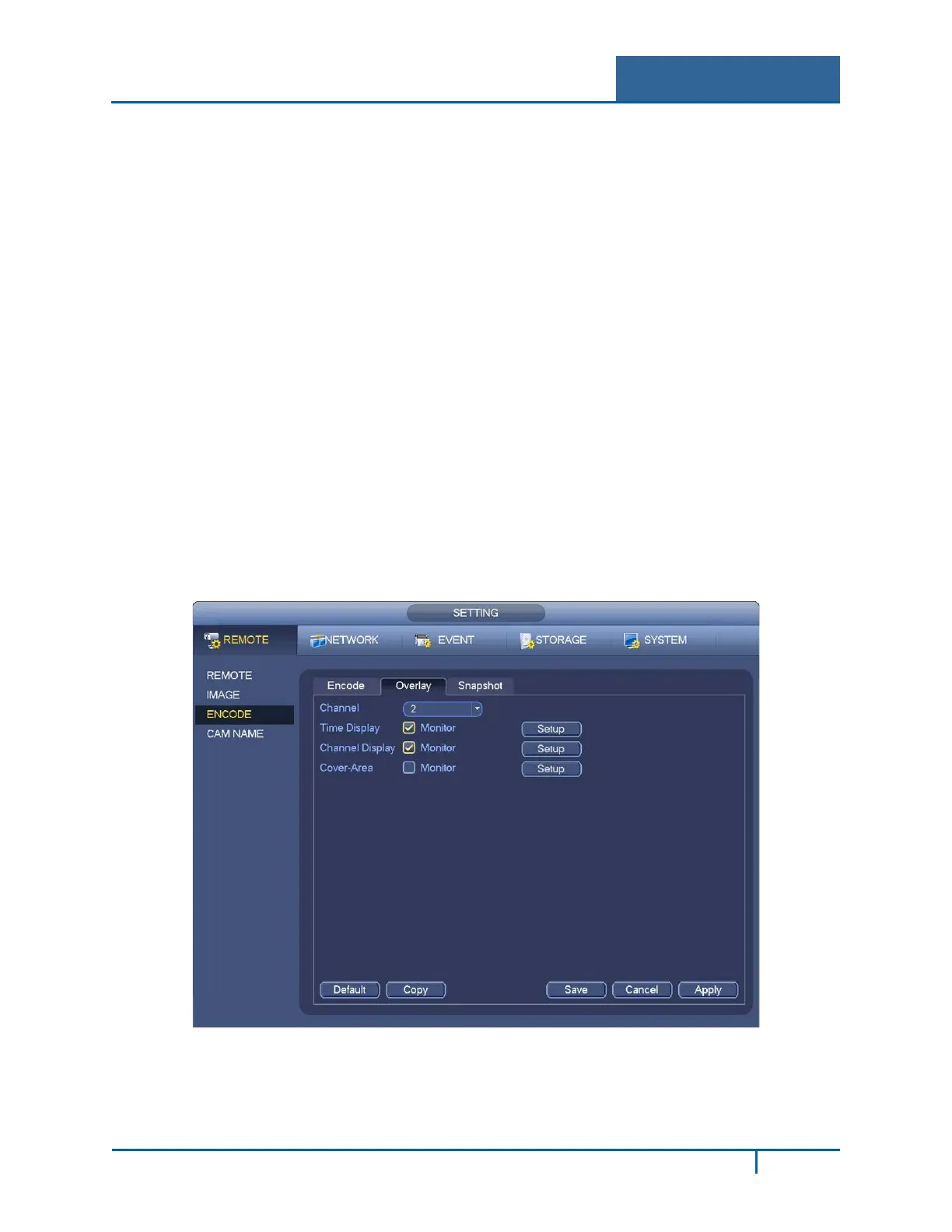

Click the Overlay tab to open the Overlay dialog, which determines whether the following items are
displayed on the monitor screen.
Figure 3-9
Channel. Select the target channel from the dropdown list.
NVR4200 Series User Guide
38
