AFL FlexScan FS200 OTDR User Manual

24

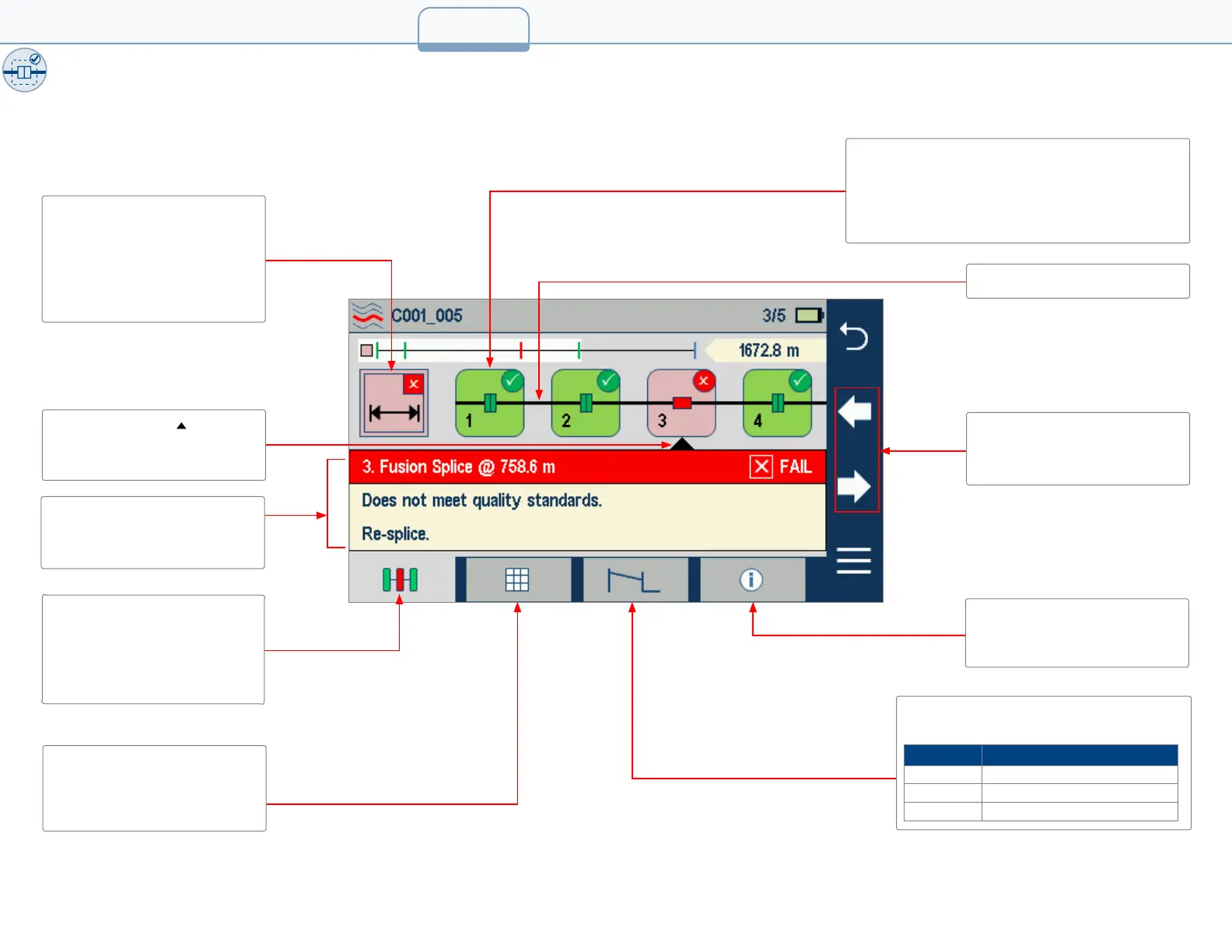

LinkMap tab: when in any
other test results viewer
(Event Table, Trace view,
Info view), touch to return
to LinkMap view
Event Table tab: touch to
display measurements for
the currently selected Link
Summary, Event, or Section
Trace tab - touch to display Trace view
that depends on active icon:
Icon Display View
Summary Trace of entire network
Event Trace around event
Section N/A
Link Summary icon: may be
green (all events passed),
red (one or more events
failed, but no major fault
detected), or black (one or
more major faults detected)
Info tab: touch to display
summary of OTDR settings
used for this test
Event icon: event icons may be green (pass),
red (fail), or black (major fault). Pass/Fail/
major fault is based on event loss and
reectance thresholds congured by the
currently selected Pass/Fail Rule.
Link Section between events
Details of the currently
selected Summary, Event,
or Section
Touch to move to next
or previous event or link
section
Selection marker indicates
active view icon: Summary,
Event, or Section
