Collimator camera
The collimator can be equipped with a camera to visualize the anatomical
region of interest.

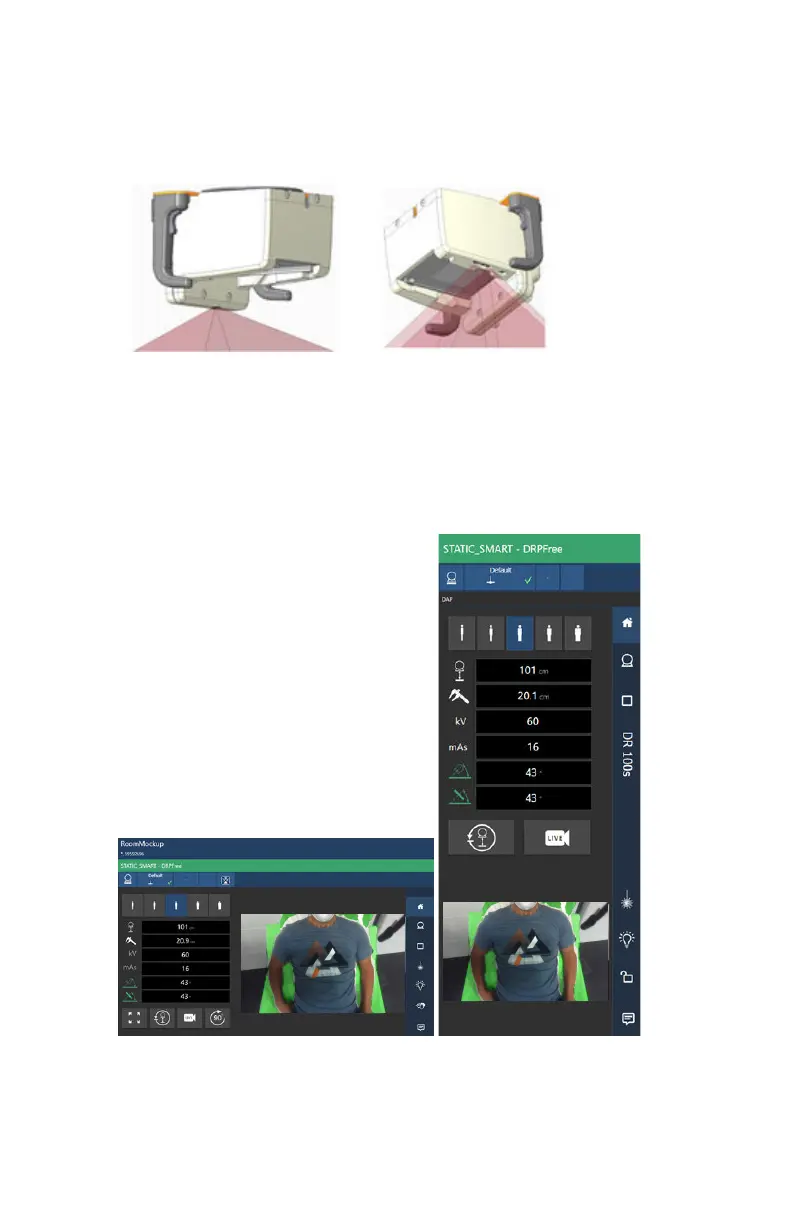

Figure 16: Location of the camera’s in the collimator
The live camera image is visible on the tube head display or on the NX
workstation in the software console.
The camera has 3D depth sensing. This data is used to measure the source-
image-distance (SID) and to provide guidance for dose adaptation by
monitoring the patient size.
Figure 17: Live camera image on the tube head display and on the software
console
By pressing the camera button, the live camera image can also be viewed in
the Examination window or in the Editing window.
