AGFA DR 100s - Manual Collimator

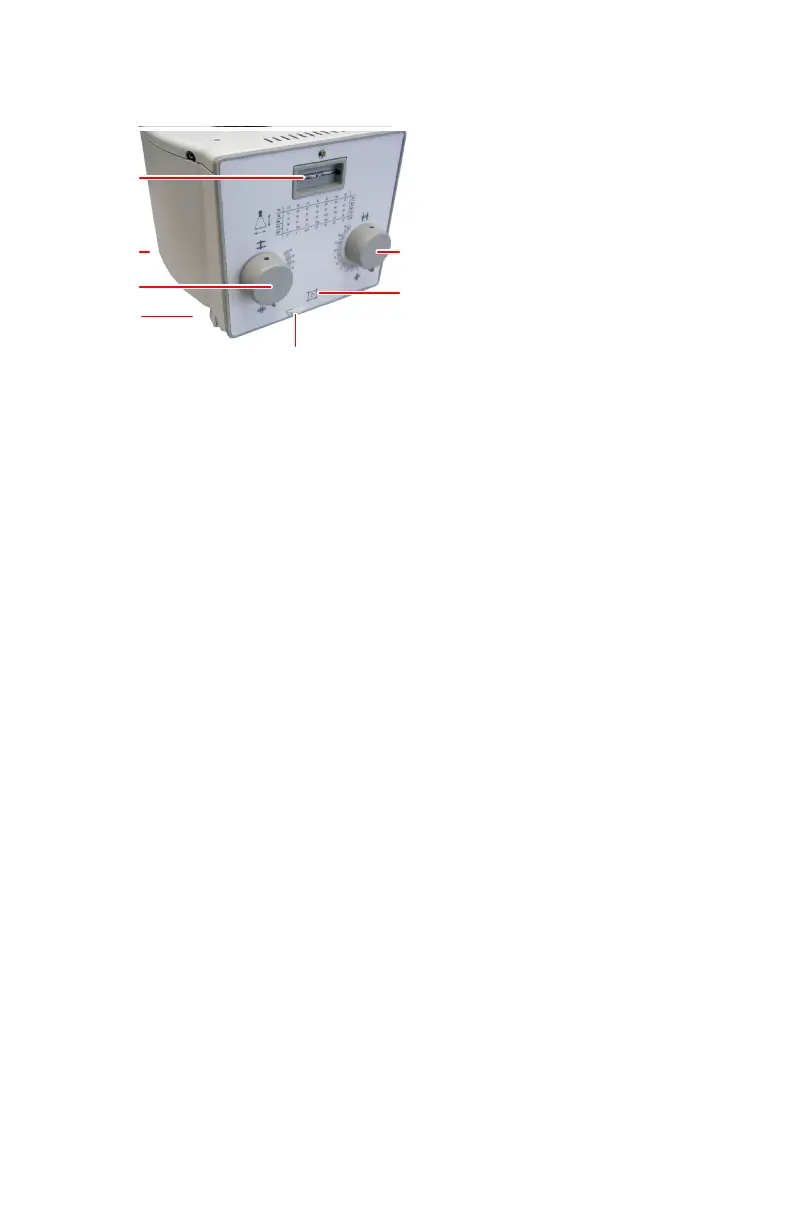

Manual Collimator
1
2
3
5
6
7
4
1.
Longitudinal collimation
2.
Button to switch on the light field indicating the collimated area and the
laser light indicating the center position.
After pressing the button, they remain lit for half a minute before
automatically switching off.
3.
Rails to insert a DAP meter or a filter.
4.
Switch to shield the laser light.
5.
Measurement tape to measure the source image distance (SID).
The measurement tape is at the rear side of the collimator.
6.
Transversal collimation
7.
Filter selection.
Filter indicator.
The filter selection and the laser light are optional.
Another button to switch on the light field is available on the software console
and on the exposure button.
