AGFA DR 100s - Connectors

Connectors for the hospital network, DR detectors and
accessories
1
2
3
4
1.
IR Data Communication Unit for registering a DR Detector.
2.
Network connector to connect the NX workstation to the hospital network.
3.
Network connector to connect the Registration Cable for registering a DR
Detector.
4.
USB port to connect accessories, e.g. a keyboard.

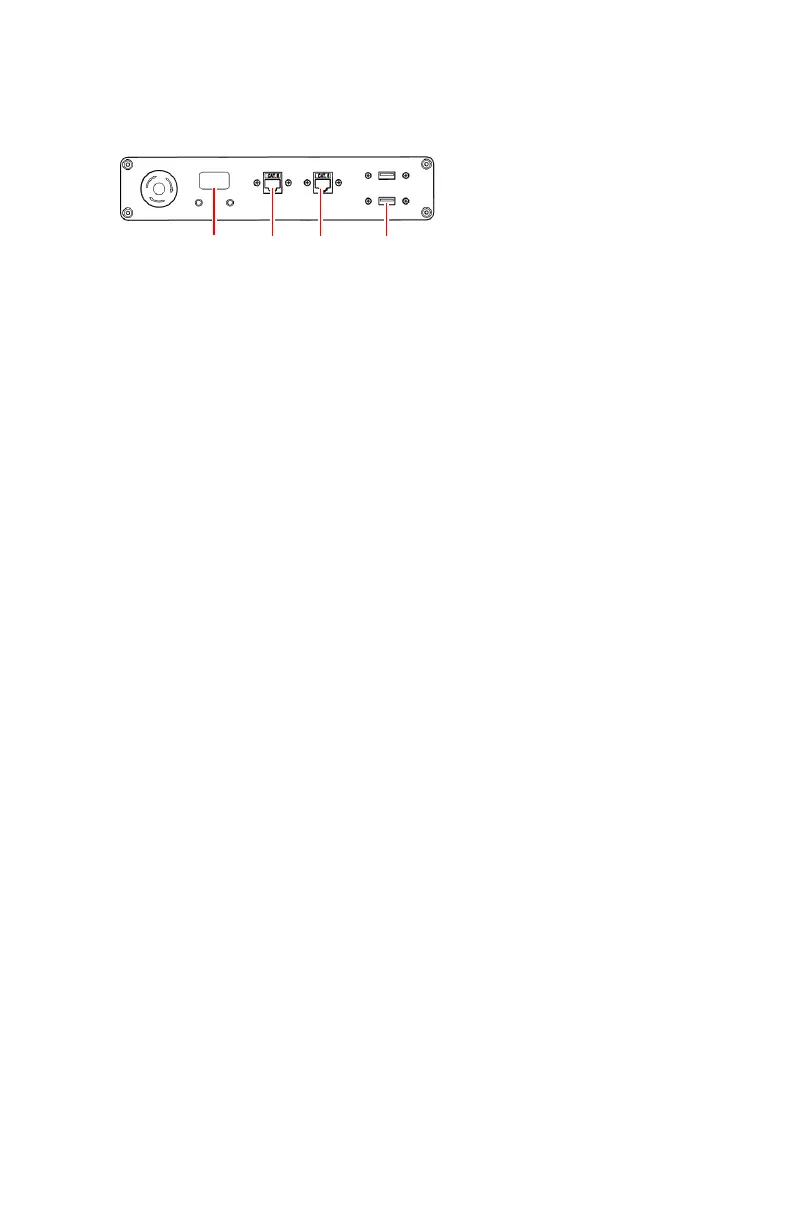

Figure 23: Connectors on the front panel of the X-ray system
