102 Agilent Restricted Agilent 5110/5100 ICP-OES Service Manual
4 Removal/ Installation, Replacement and Adjustment
Air cooling flow sensor

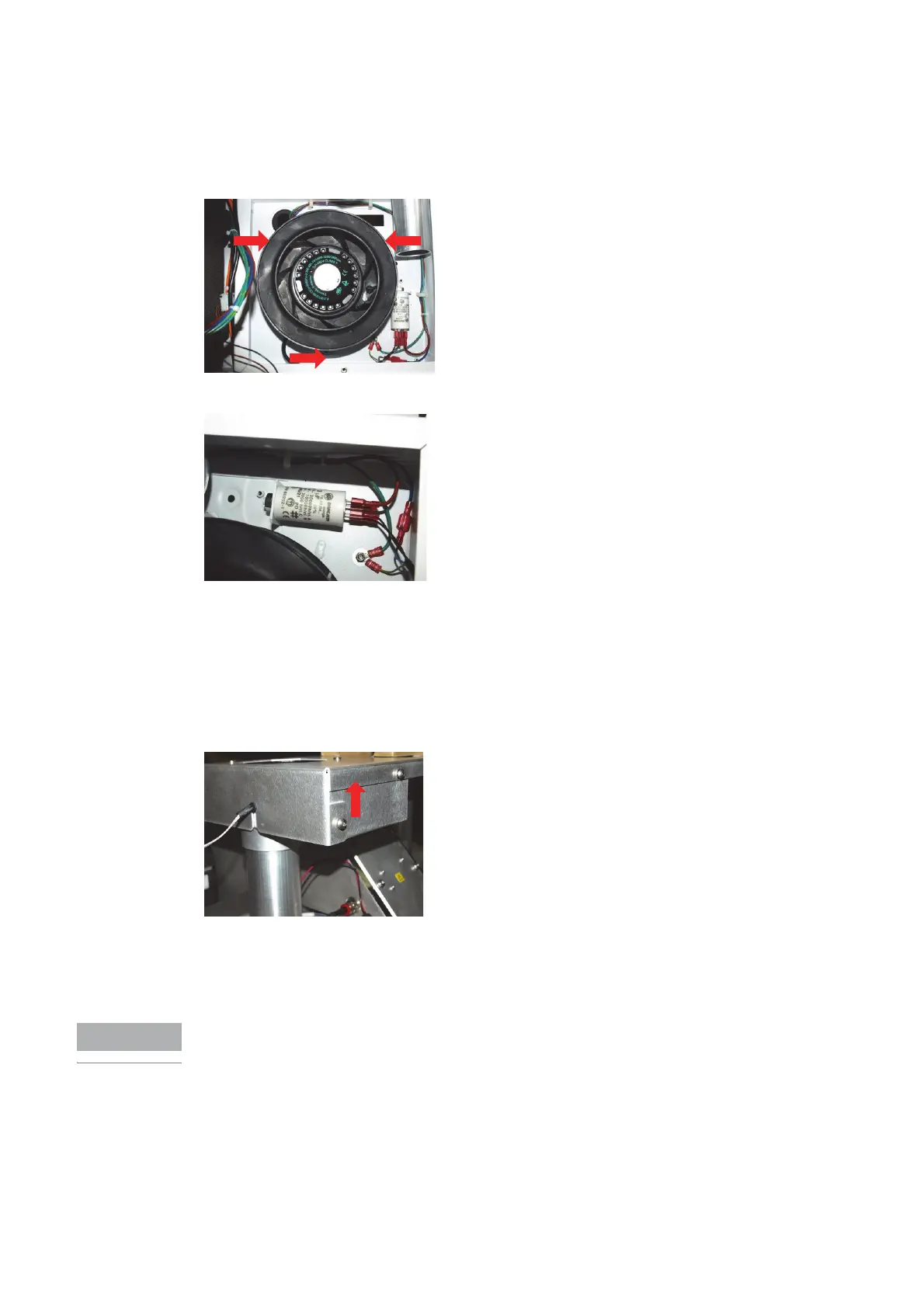

1 To remove fan assembly remove single torx screw and remove cover by lifting up and
dislocating tabs from base assembly.
2 Remove 3 rawl screws (screws with rubber cushion).
3 Disconnect wires from capacitor and remove assembly. Replacement is reversal of
disassembly. Do not overtighten rawl screws as these provide vibration damping!
Air cooling flow sensor
1 Disconnect sensor from SSRF control board.
2 Remove sensor assembly from top of chimney by pushing in an upward direction.
3 Replace assembly as required.
The Air flow sensor may not spin or may spin slowly with the covers removed. To check correct
performance of the sensor, make sure covers are fitted to prevent air leakage.
