Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 87
4 Removal/ Installation, Replacement and Adjustment

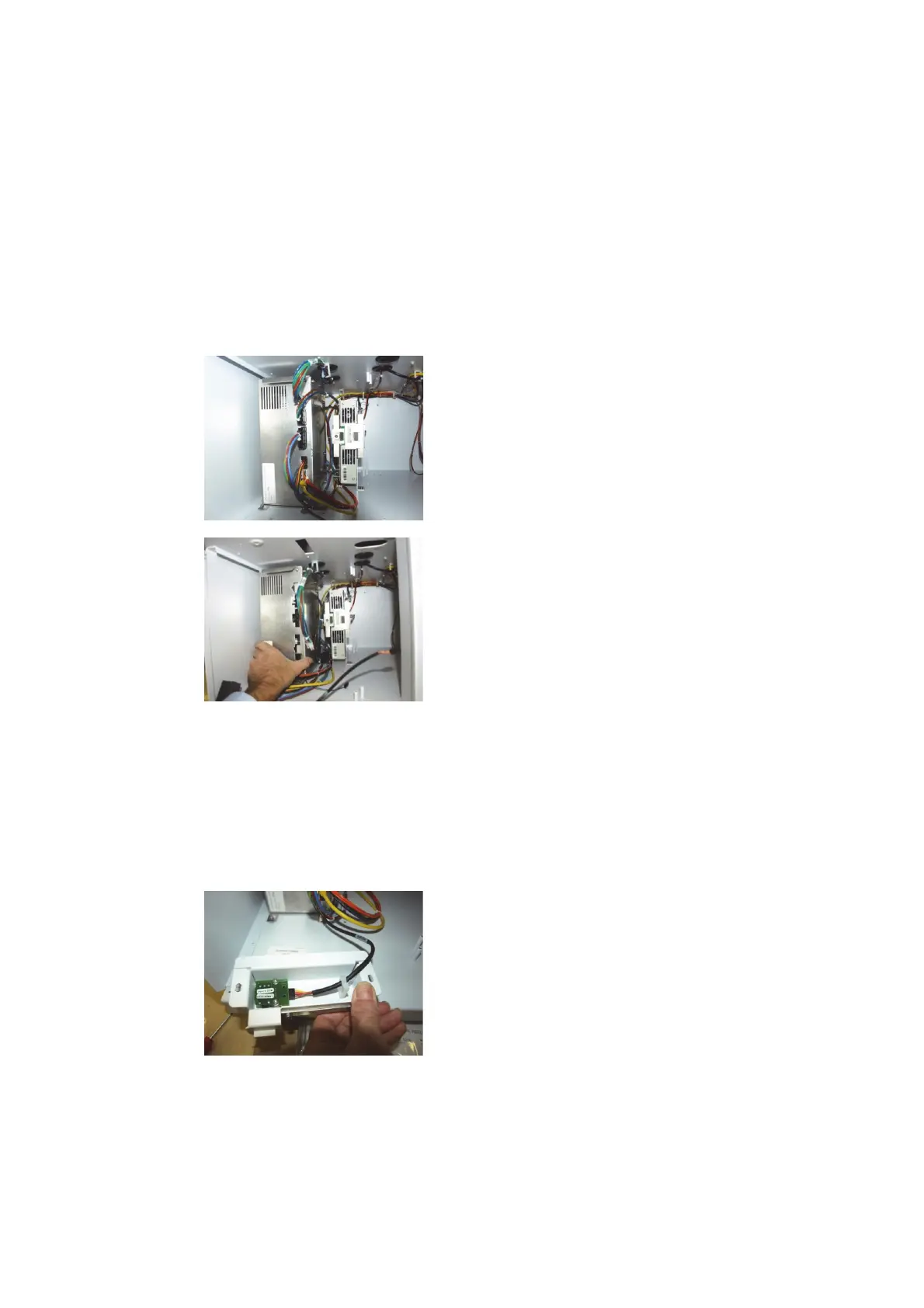

Mains Power Module
Mains Power Module
The mains module distributes power to all parts of the instrument and contains a 24 Volt switch
mode power supply that feeds the distribution PCA within the module.
There are no user serviceable parts within the module. Any failure will require the replacement of
the entire module.
The module is located in the lower left hand front of the instrument and is accessible via
removal of the lower left hand front cover.
1 To replace the power module, loosen the two torx mounting screws and disconnect all
cables from the front of the module. Lift and slide the module away from the screws.
Replace and reconnect.
Standby power switch
1 To replace the power on switch remove the 2 torx screws that hold the bracket in place and
slide switch assembly from chassis. Disconnect switch assembly and replace.
