Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 69
4 Removal/ Installation, Replacement and Adjustment

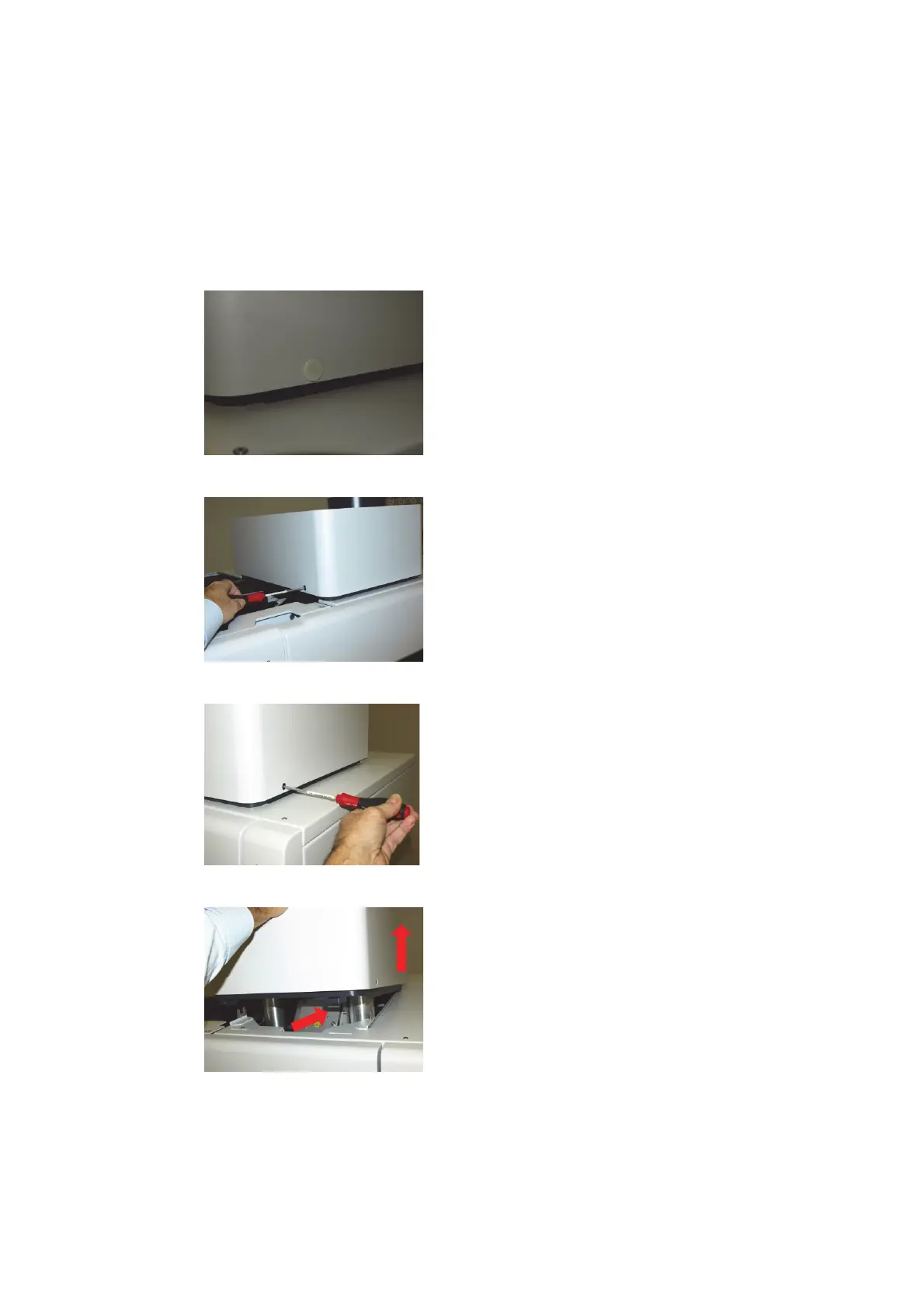

Chimney
4 Lift top cover, push back (to release rear tabs) and remove cover.
Chimney
1 Remove 2 white plugs to reveal screws.
2 Loosen torx 20 screw (Left hand).
3 Loosen torx 20 screw (right hand).
4 Push chimney back and up to release from front tabs.
