74 Agilent Restricted Agilent 5110/5100 ICP-OES Service Manual
4 Removal/ Installation, Replacement and Adjustment
Sample introduction
Sample introduction
Section Contents:
Torch 74
Torch loader micro switch 75
Torch loader 77
Axial Cone Cooling interface 80
Peristaltic Pump 81
Advanced Valve System (AVS) 82
Torch
The Agilent 5110 ICP-OES is supplied with a pre aligned bonded torch for sample analysis.
Demountable torches are available as an option.
The torch is installed with one action using the torch loader which removes the need to connect
and disconnect gas and sample tubes as well as providing repeatable positioning of the plasma
bullet in the optical path.

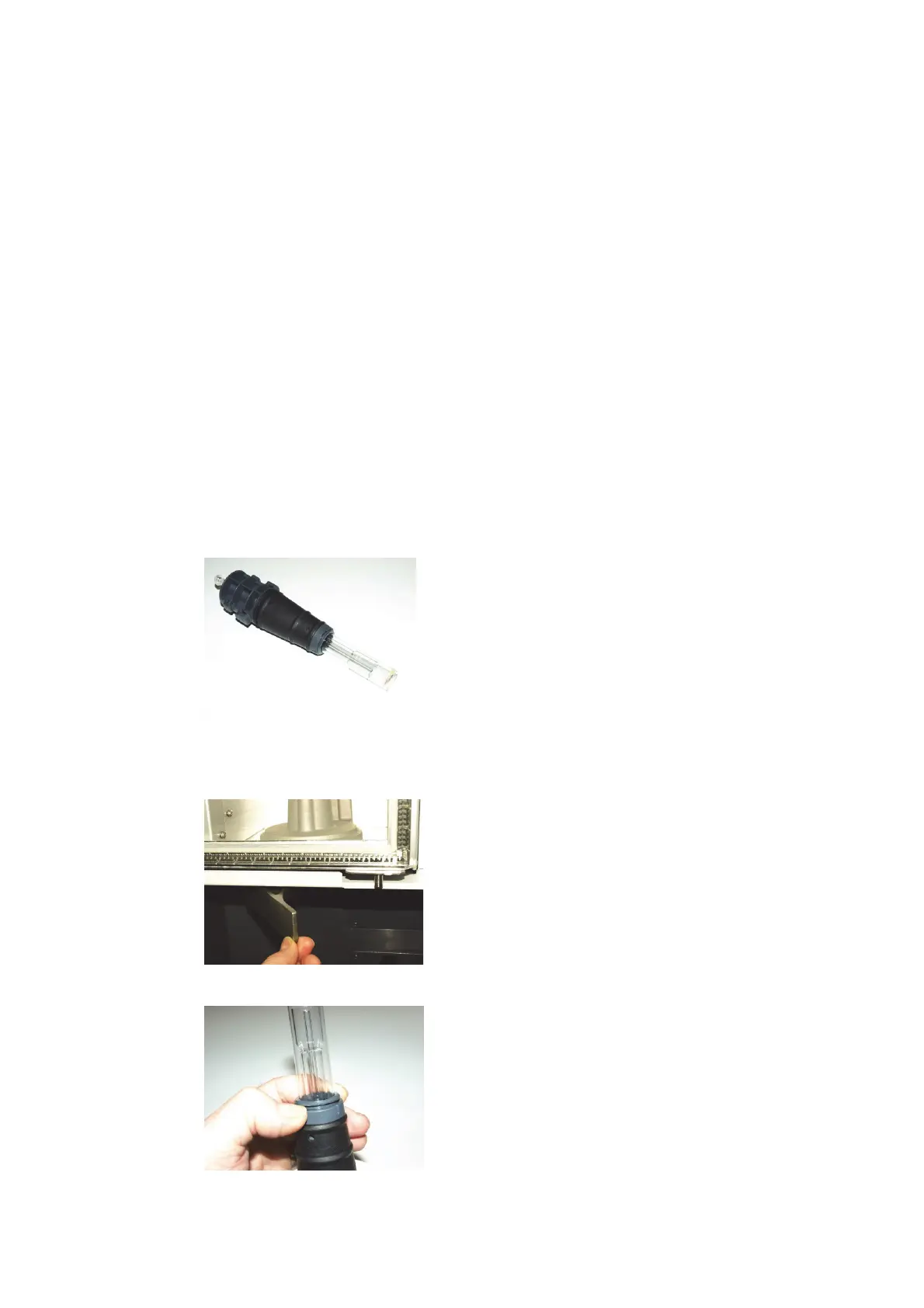

1 To remove the torch pull the handle to the left and pull torch down and out.
