8Support Parts

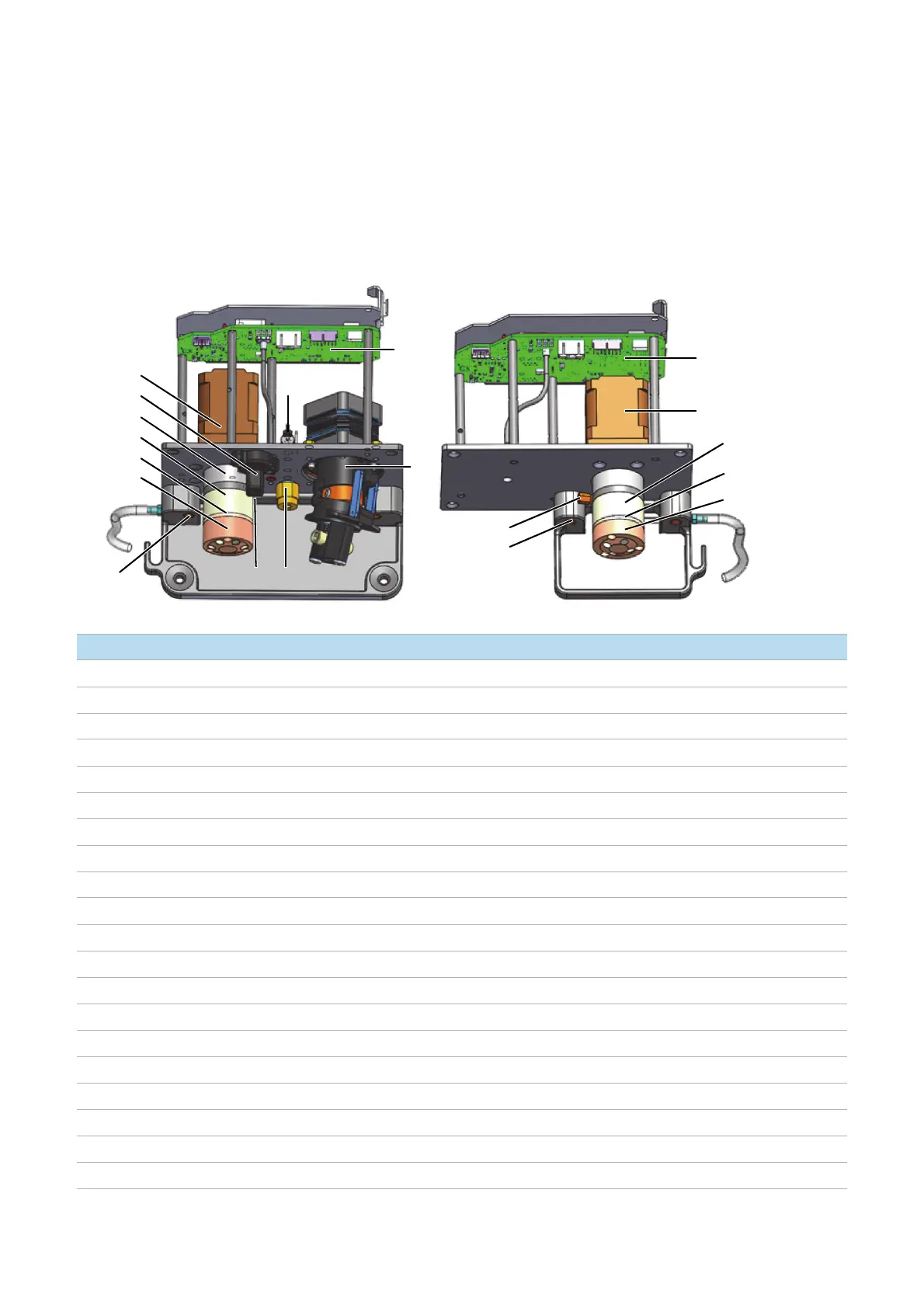

Advanced Valve System (AVS)
Advanced Valve System (AVS)
Return to step 17
1
2
12
14
13
4
5
2
7
15
9
11
10
3
8
6
AVS 6/7 AVS 4
4
1
5
Item Description Part Number Remark
1 Assy PCA Switching Valve G8495-60304
2 Motor Drive Switching Valve G8495-60300 Does not include valve
3 Assy High Flow Pump G8495-60301 Complete pump, including pump head and piston
4 Screw Clamp Ring G8495-60305
5 Mounting Post Drip Tray 2pc G8495-60302
6 Assy Bubble Injector G8495-60303
7 Mount Sample Loop G8495-60306
8 Check Valve Outlet for AVS, Non-Metallic G8010-60300
9 Spare valve, 7 port, 2 position for AVS7 G8495-60000 Consumable item
10 Spare Stator for 7 Port Valve for SVS7 G8495-60001 Includes 3 stator mounting screws
Stator + rotor for 7 port valve for AVS7 G8495-60003 Includes 3 stator mounting screws
11 Rotor seal for 6-7 port valve for AVS6/7 G8494-60002
9 Spare valve, 6 port, 2 position for AVS6 G8494-60000 Consumable item
10 Spare Stator for 6 Port Valve for SVS6 G8494-60001 Includes 3 stator mounting screws
Stator + rotor for 6 port valve for AVS6 G8494-60003 Includes 3 stator mounting screws
12 Spare valve, 4 port, 2 position for AVS4 G8493-60000 Consumable item
13 Spare stator for 4 port valve for AVS4 G8493-60001 Includes 3 stator mounting screws
14 Rotor seal for 4 port valve for AVS4 G8493-60002
Stator + rotor for 4 port valve for AVS4 G8493-60003 Includes 3 stator mounting screws
15 Mounting assy for switching valve AVS6/7 G8494-60004
To Next Page
