Maintenance
Agilent 55B AA Spectrometer User’s Guide 99

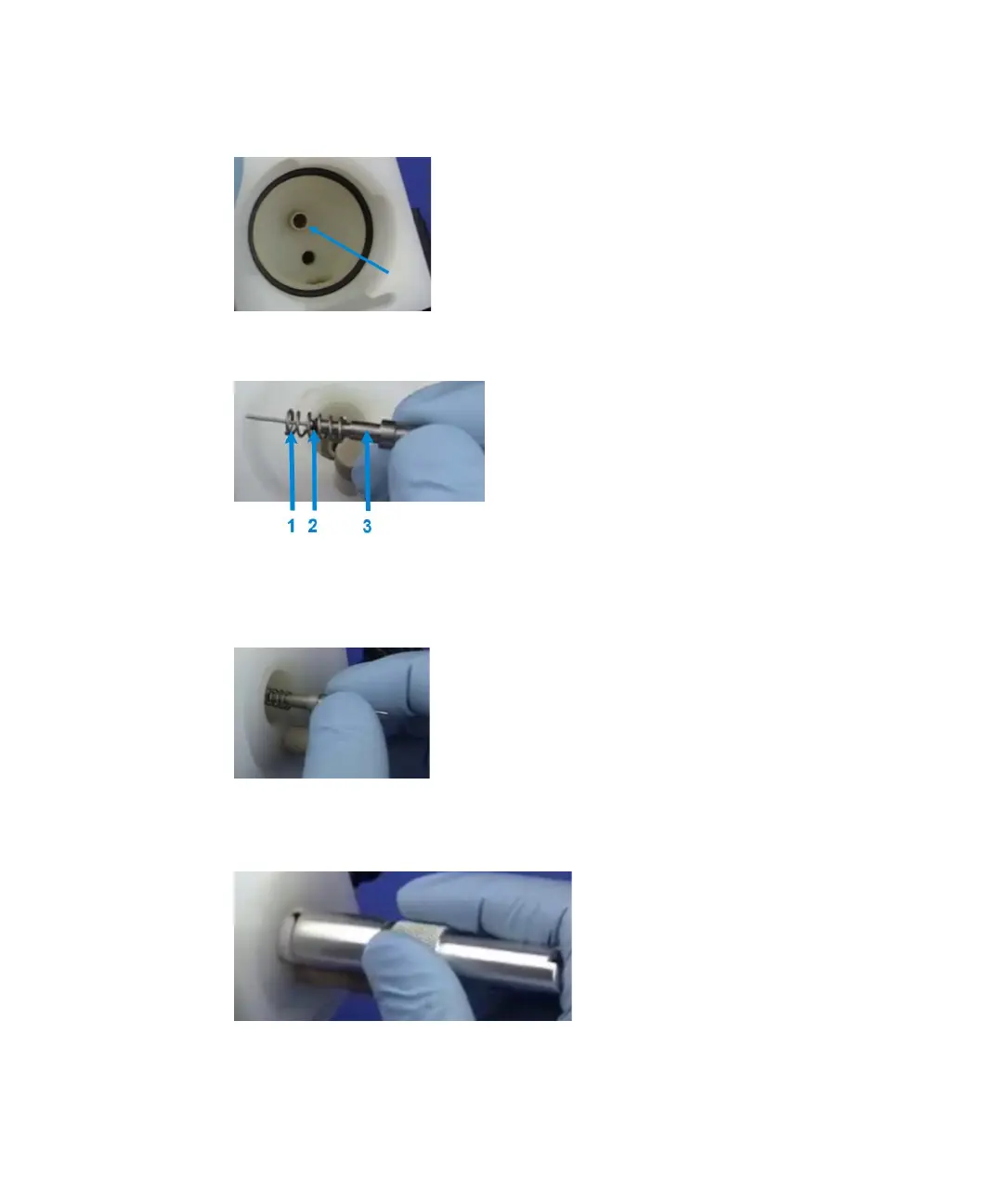

Figure 46. Venturi extending into the back of the Nebulizer Block
5 Insert the O-ring end of the capillary assembly into the spring.
Figure 47. Insert spring over the capillary assembly
1. Spring 2. O-ring 3. Capillary assembly
6 Insert the capillary assembly and spring into the capillary guide.
Figure 48. Capillary assembly and spring being inserted into the capillary guide.
7 Screw the white plastic insert into the nebulizer block using the large end of
the Nebulizer tool.
Figure 49. Screw the white plastic insert into the Nebulizer block
