4 Operating in EI Mode

82 5975/5977 Series MSD Operating Manual

5 Click Set Real-Time Clock or Edit NetConfig, and go to Edit NetConfig (MSD

network configuration). (See Figure 22.)



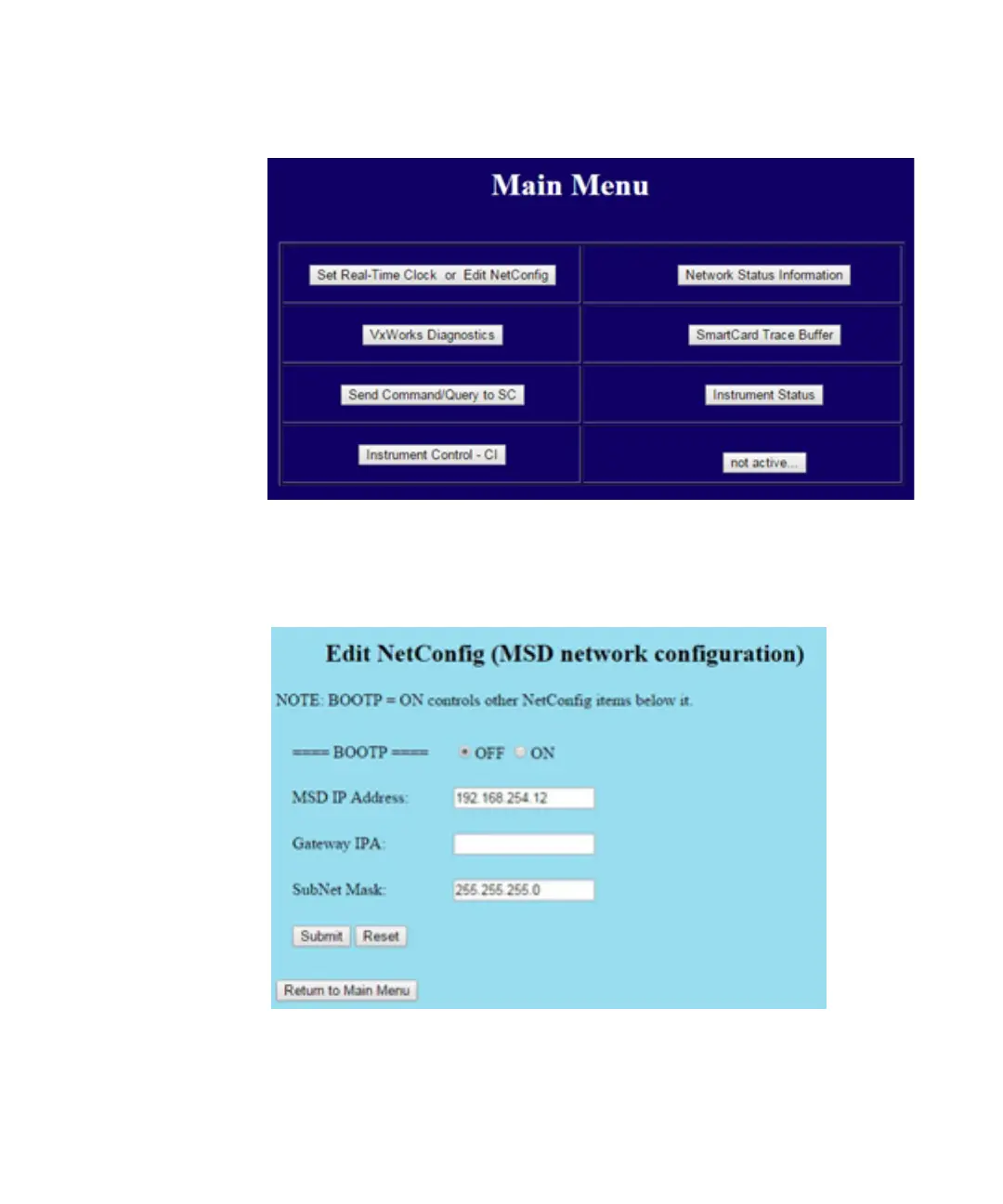

Figure 21. WUI main menu

Figure 22. WUI Edit NetConfig
