163

Signal Handling

Column compensation

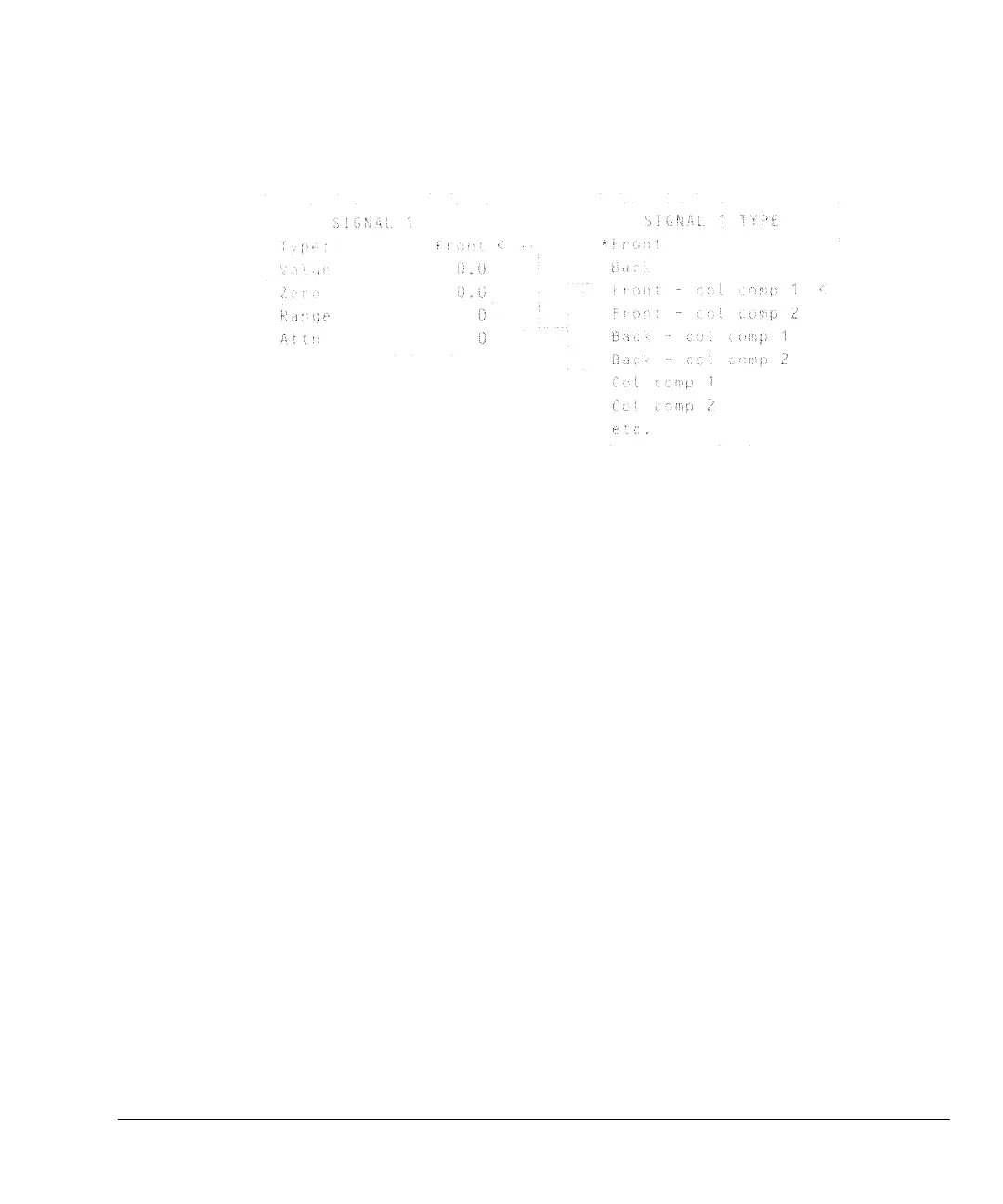

3. Scroll to Type: and press [Mode/Type].

4. Choose Front - col comp 1 or one of the other three column compen-

sation options on the list.

5. Enter setpoints for Zero,

Range, and Attn, if applicable.

6. Start your run.

Press [Signal 1] or [Signal 2] Press [Mode/Type]

Default Chapter3
