The Column Oven
Configuring the oven
86

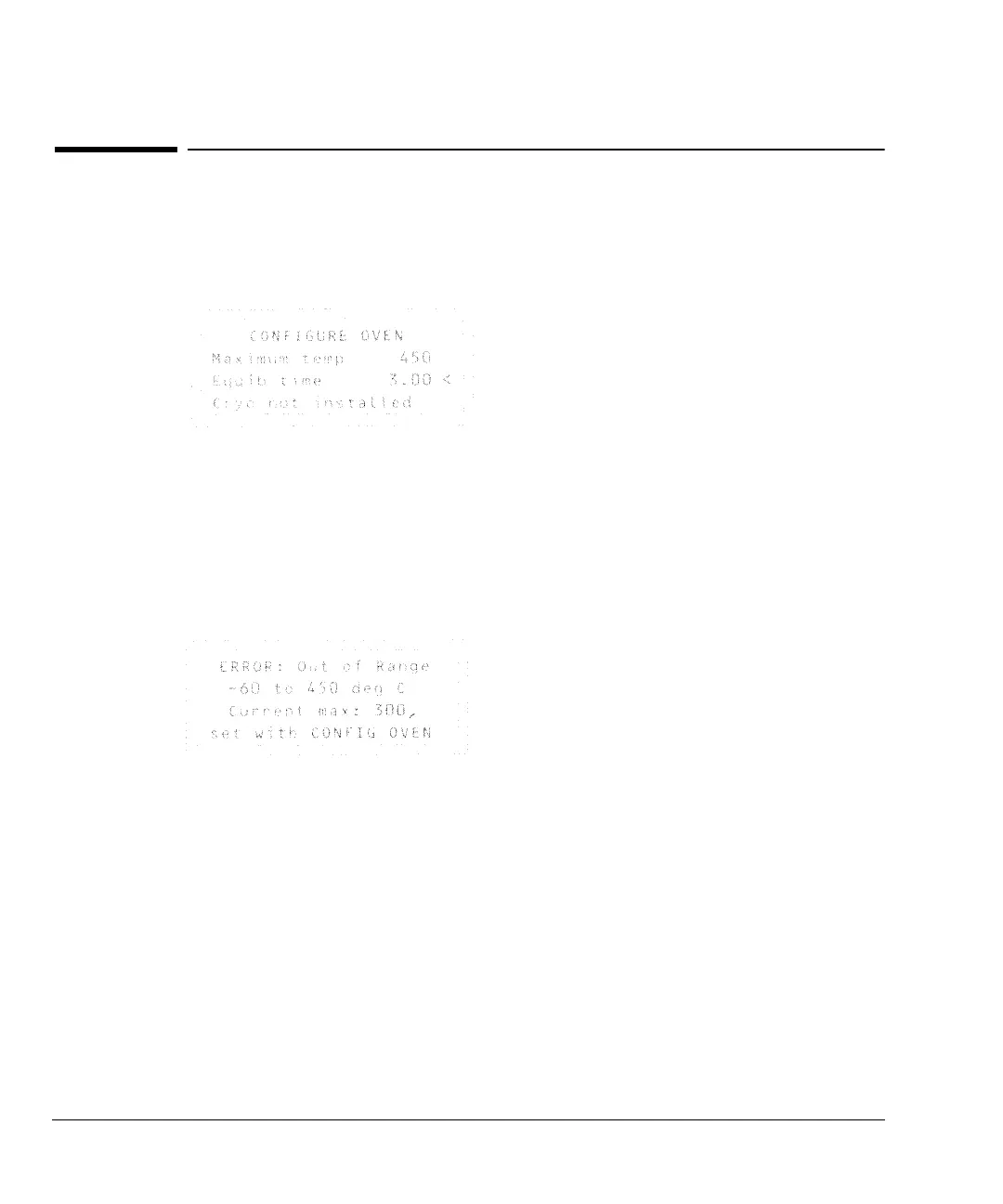

Configuring the oven
Oven configuration sets maximum temperature, equilibration time, and the
cryogenic setpoints, if cryo is installed.
Maximum temp Maximum allowable oven temperature setpoint. Some
accessories, such as the valve box, valves and columns have specific
temperature limits. When configuring Maximum temp, these limits should be
considered so that the accessories are not damaged. Oven setpoints are verified
as they are entered; a message is displayed when an entered setpoint is
inconsistent with a previously defined maximum.
Equib time The time required for the oven temperature to equilibrate after
temperature is modified. Equilibration time begins when the actual oven
temperature comes within 1°C of the oven temperature setting. The Equib
time setpoint can be 0 to 999.99 minutes.
Press [Config] [Oven] Maximum temp setpoint range: 70 to 450°C
