Agilent Technologies 8720E Series Programmer's Guide

Chapter 6 6-3
Error Reporting
Status Reporting
Status Reporting
The analyzer status reporting structure is depicted in Figure 6-1. Refer to Table 6-1,
Table 6-2, and Table 6-3 for a description of each bit within the status reporting structure.

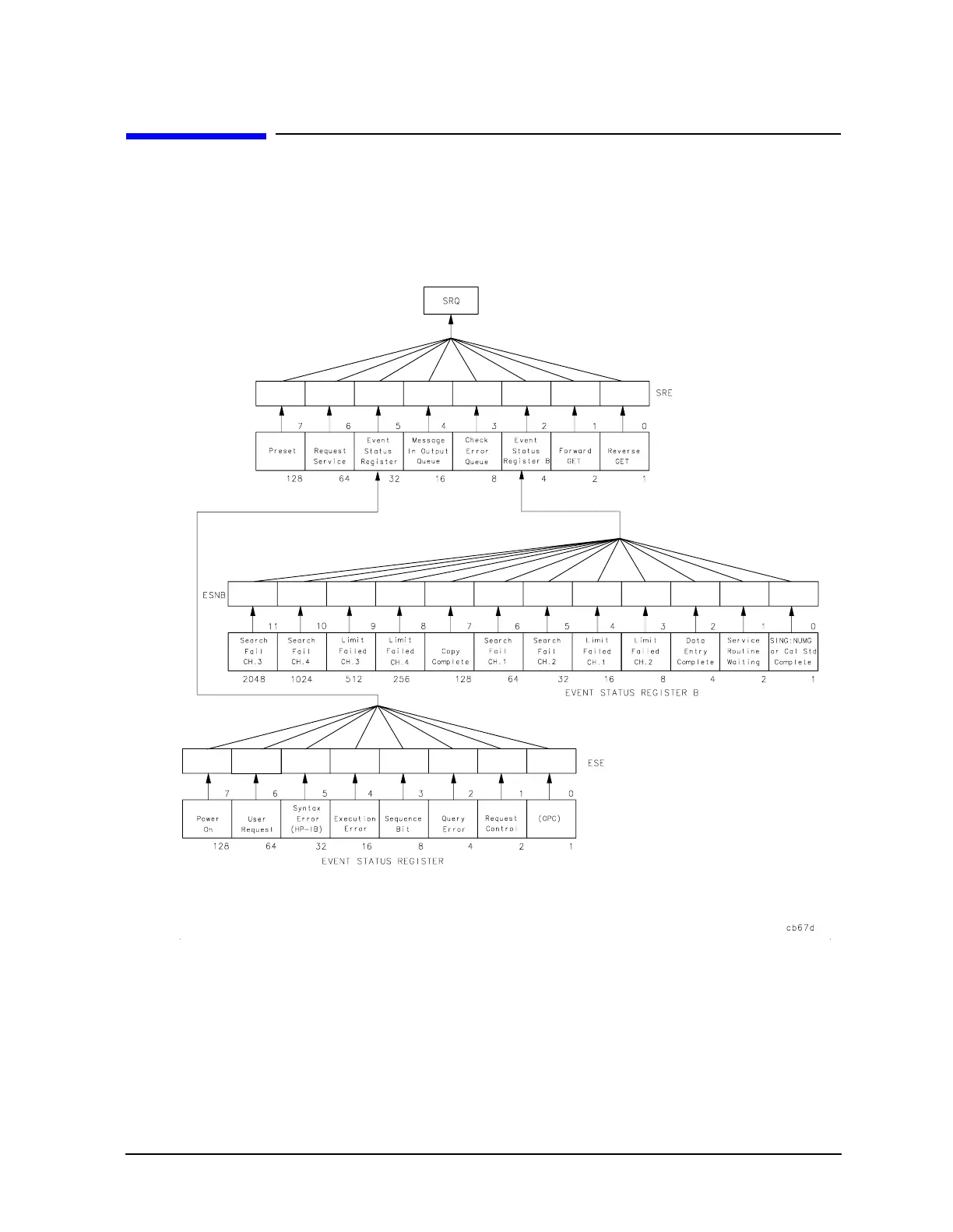

Figure 6-1 Status Reporting Structure
