270 Chapter 9
BERT
Measuring RF Loopback BERT with Option 300

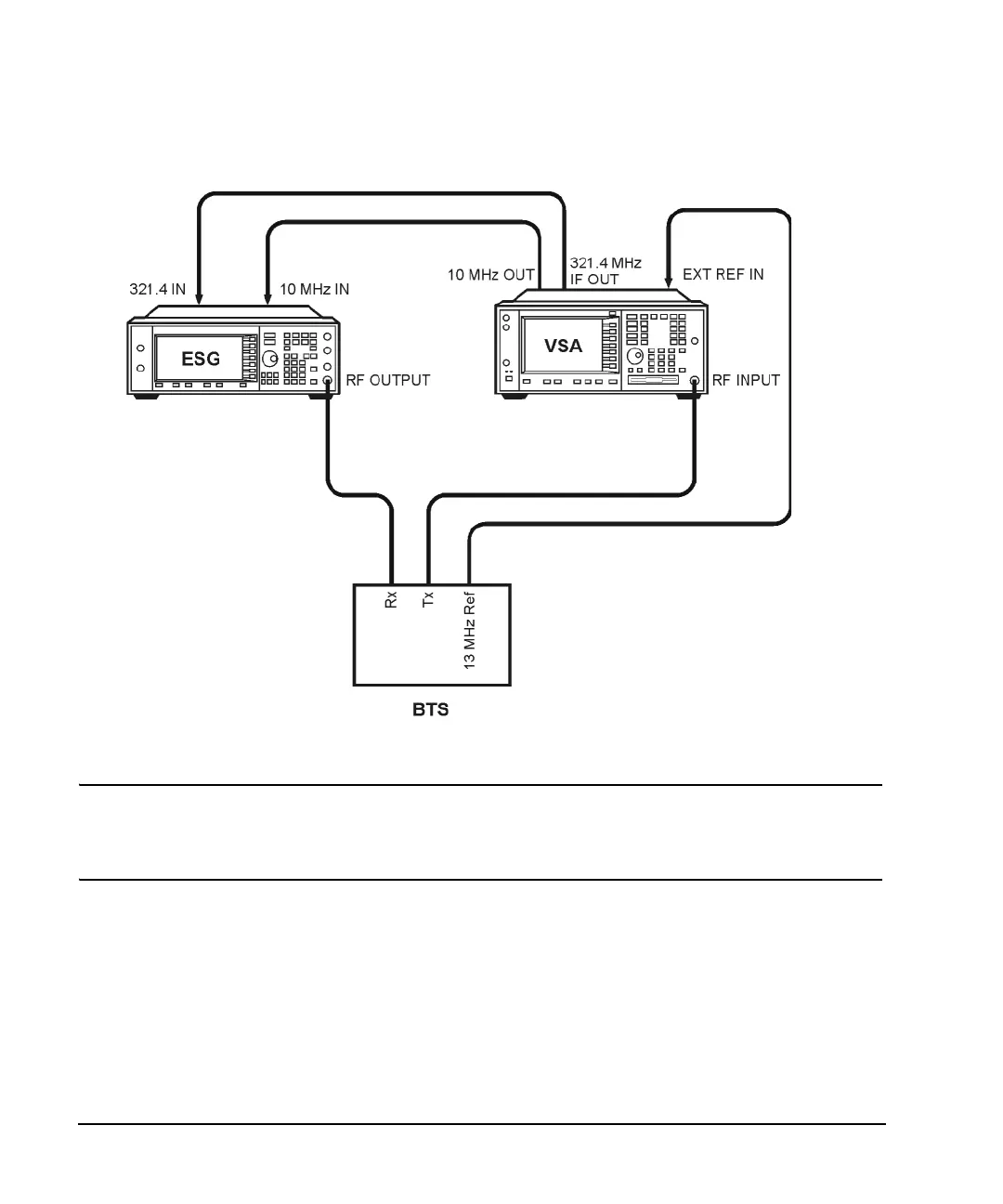

Figure 9-2 BTS Loopback Test Equipment Setup
NOTE This example uses an ARFCN of 124 for the BCH and synchronizes to the TCH midamble
in timeslot 2 on ARFCN 124. You can substitute as appropriate for your BTS.
All key presses assume factory defined defaults at preset.
