Chapter 10 313
CDMA Digital Modulation
cdma2000 Reverse Link Modulation for Component Test
Creating a User-Defined cdma2000 Reverse Link State
This procedure teaches you how to perform the following tasks:
• “Accessing the Table Editor with the Default Reverse Link Setup” on page 313
• “Editing cdma2000 Reverse Link Channel Parameters” on page 313
• “Inserting Additional cdma2000 Reverse Link Traffic Channels” on page 314
Accessing the Table Editor with the Default Reverse Link Setup
1. Press
Preset.
2. Press
Mode > CDMA > Arb CDMA2000.
3. Press
Link Forward Reverse until Reverse is highlighted.
4. Press
More (1 of 2) > CDMA200 Define > Edit Channel Setup.

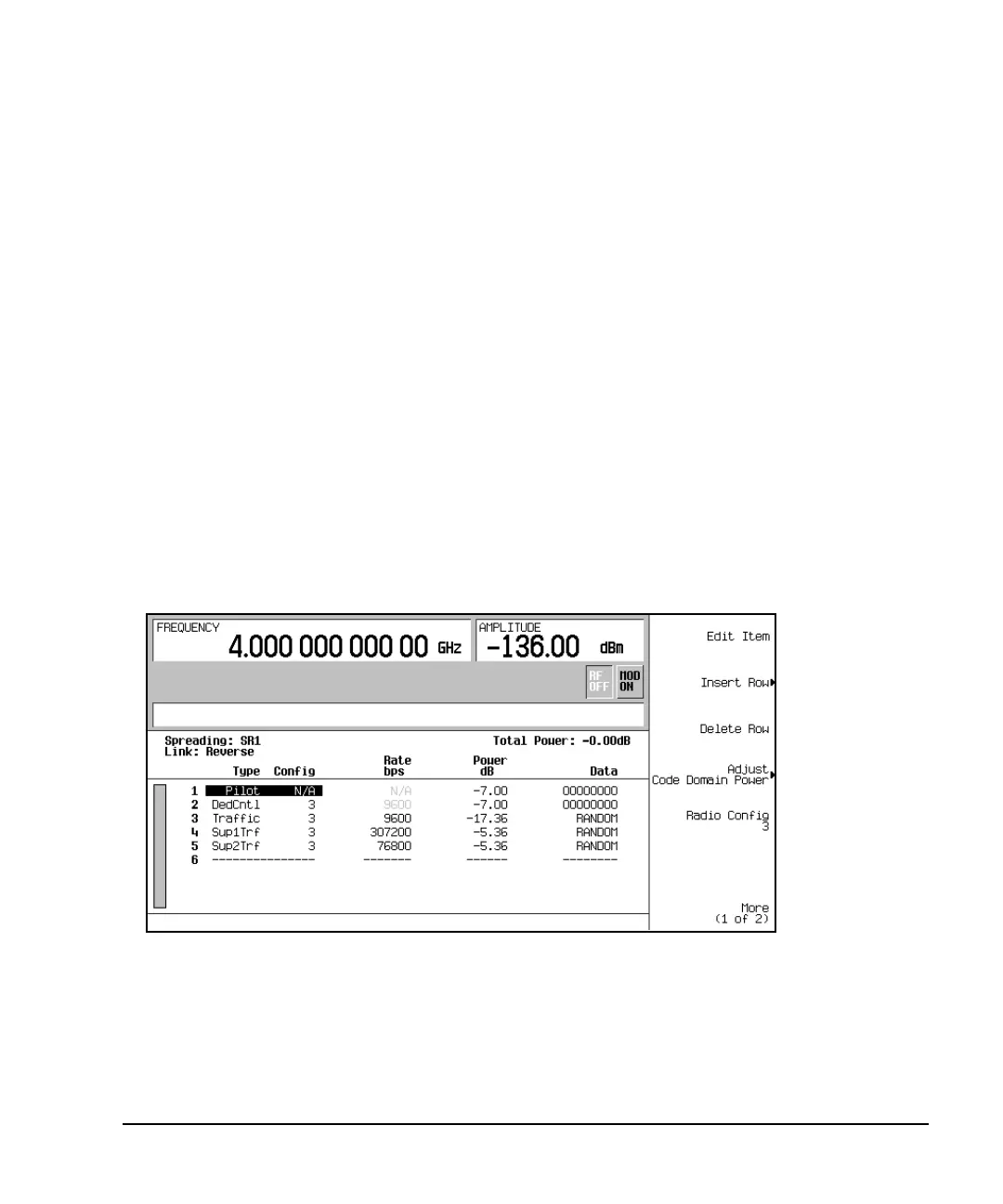

The table editor is now displayed, as shown in Figure 10-4. Notice that the default predefined channel
configuration is reverse link with 5 channels at spread rate 1.
Figure 10-4
Editing cdma2000 Reverse Link Channel Parameters
1. Use the arrow keys to move the cursor to the traffic channel located in table row 3.
2. Highlight the Rate bps value (9600).
3. Press
Edit Item > 4800.
