Assembly Replacement

A24 20 GHz High Band Coupler (E8241A and E8251A Models Only)

2-53

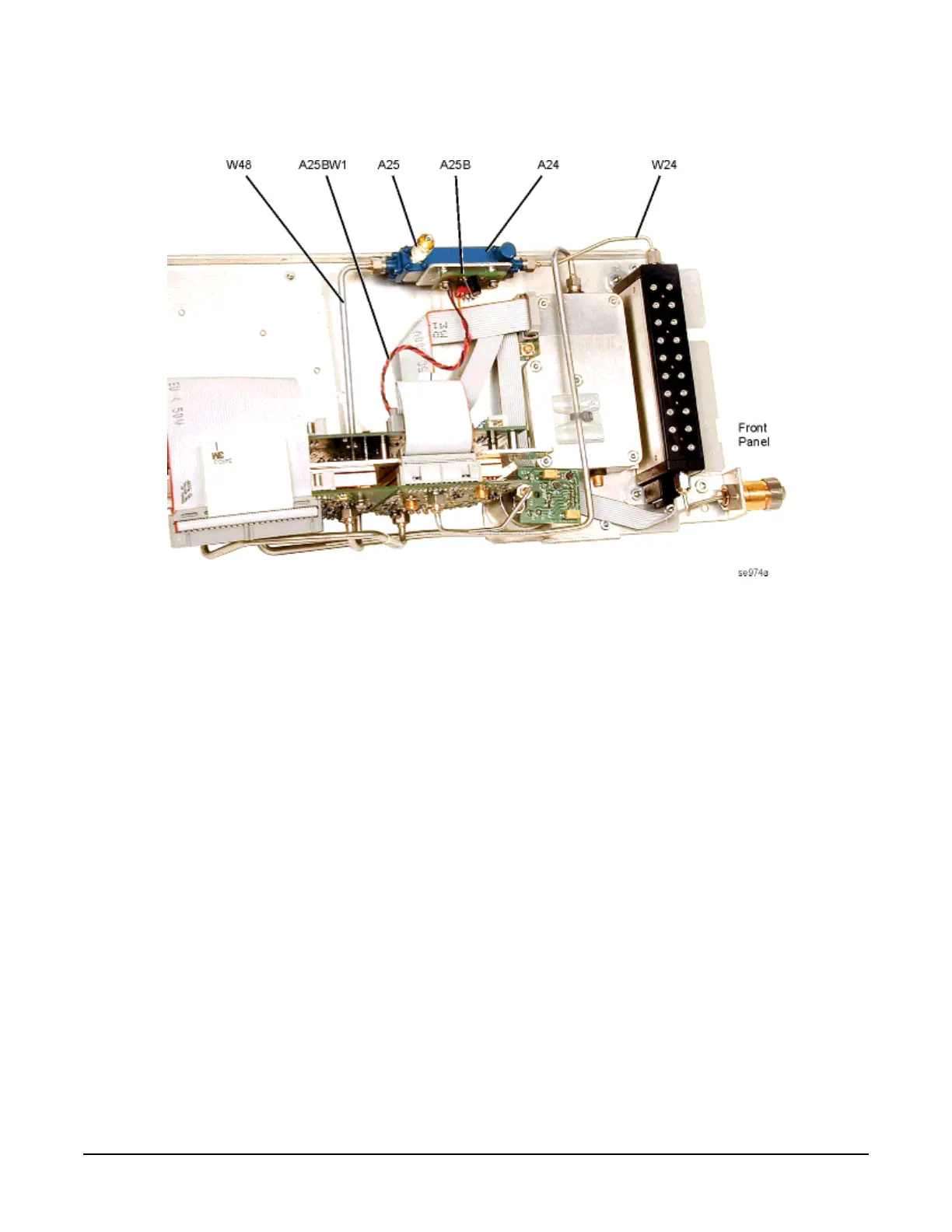

Figure 2-25 A24 20 GHz High Band Coupler
