Main Chassis with Inside Cover and Right-Side Support Wall

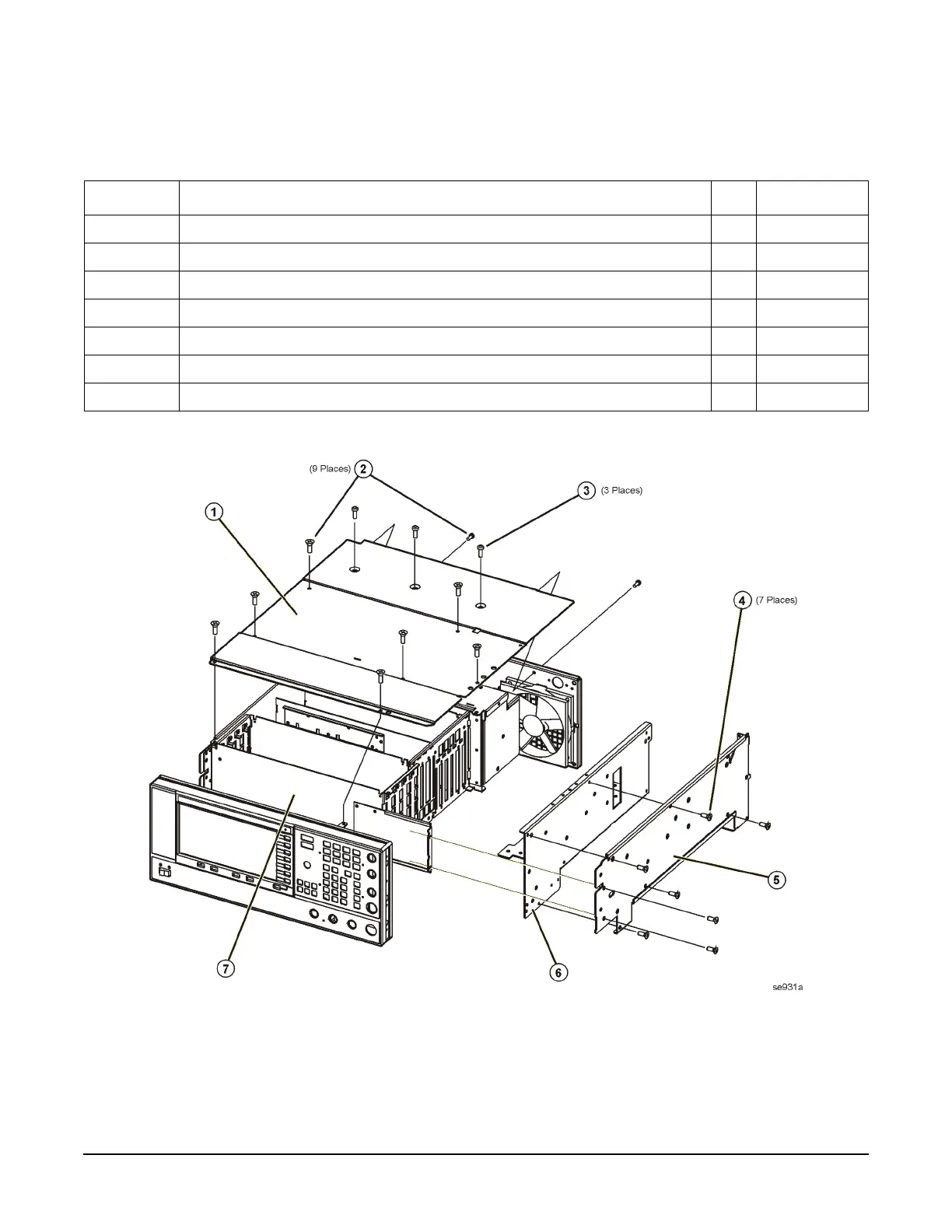

Figure 3-27 Main Chassis with Inside Cover and Right-Side Support Wall
Table 3-27 Main Chassis with Inside Cover and Right-Side Support Wall
Item No. Description Qty Part Number
1 Main Chassis Inside Top Cover 1 E8251-00010
2 Screw-Machine M3.0 x 08 FL-TX (inside top cover to main chassis and rear panel) 9 0515-0431
3 Screw-Machine M3.0 x 08 CW-PN-TX (rear panel to right-side support wall) 3 0515-0372
4 Screw-Machine M3.0 x 08 FL-TX (microcircuit interface deck to right-side support wall) 8 0515-1035
5 Right-Side Support Wall 1 E8251-00014
6 Microcircuit Interface Deck 1 E8251-00004
7 Main Chassis 1 E8251-60030
