Disassembled A24 High Band Coupler and A25 High Band Detector
(E8244A and E8254A Models Only)

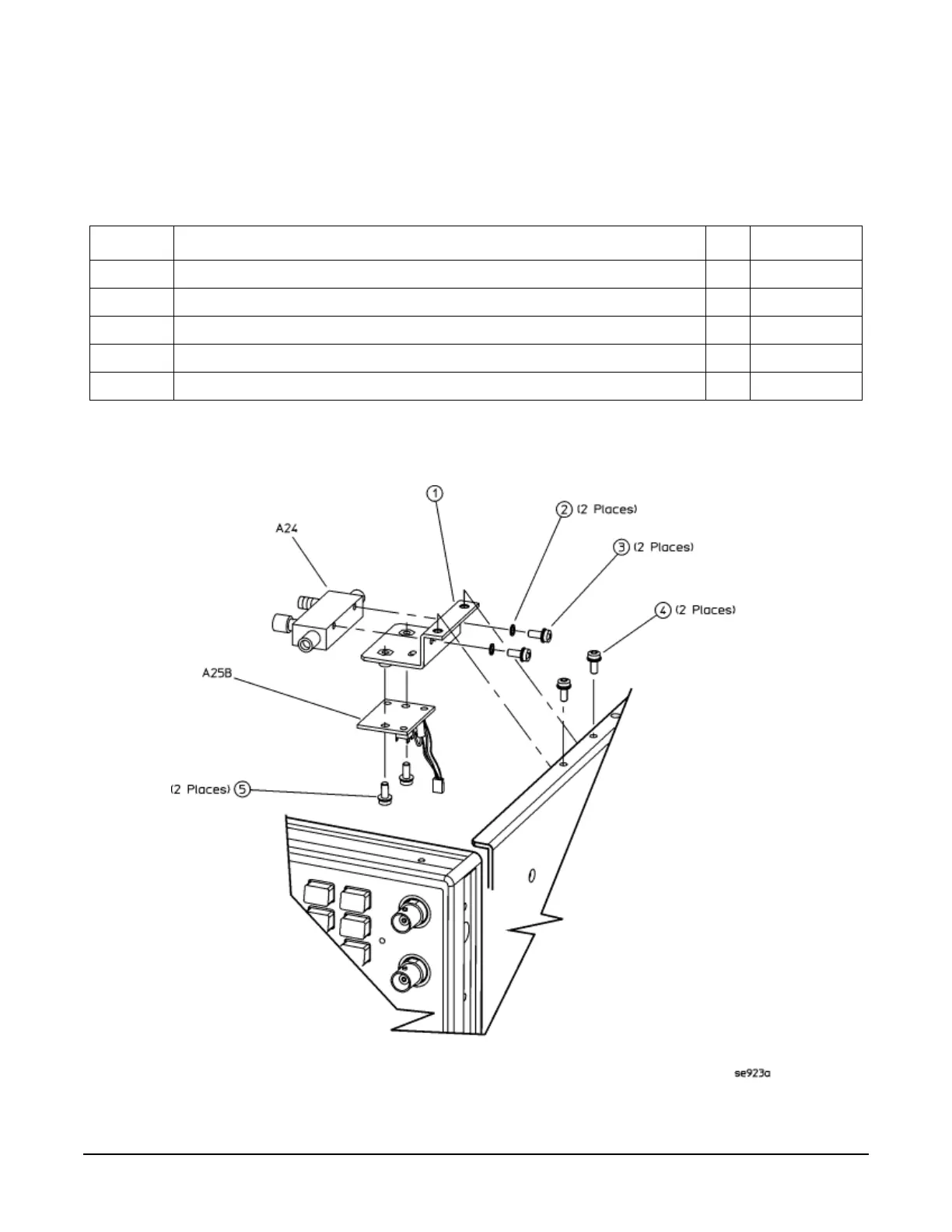

Figure 3-21 Disassembled A24 High Band Coupler and A25 High Band Detector
(E8244A and E8254A Models Only)
Table 3-21 Disassembled A24 High Band Coupler and A25 High Band Detector
(E8244A and E8254A Models Only)
Item No. Description Qty Part Number
1 Coupler Bracket 1 E8251-00039
2 Washer Lock M2.5 2 2190-0583
3 Screw-Machine M4.0 x .312 PN-PN (E8244A and E8254A Models Only) 2 2200-0141
4 Screw-Machine M3.0 x 8 FL-TX 2 0510-1035
5 Screw-Machine M3.0 x 8 CW-PN-TX 2 0515-0372
