Troubleshooting
Troubleshooting Assembly Level Problems
1-29

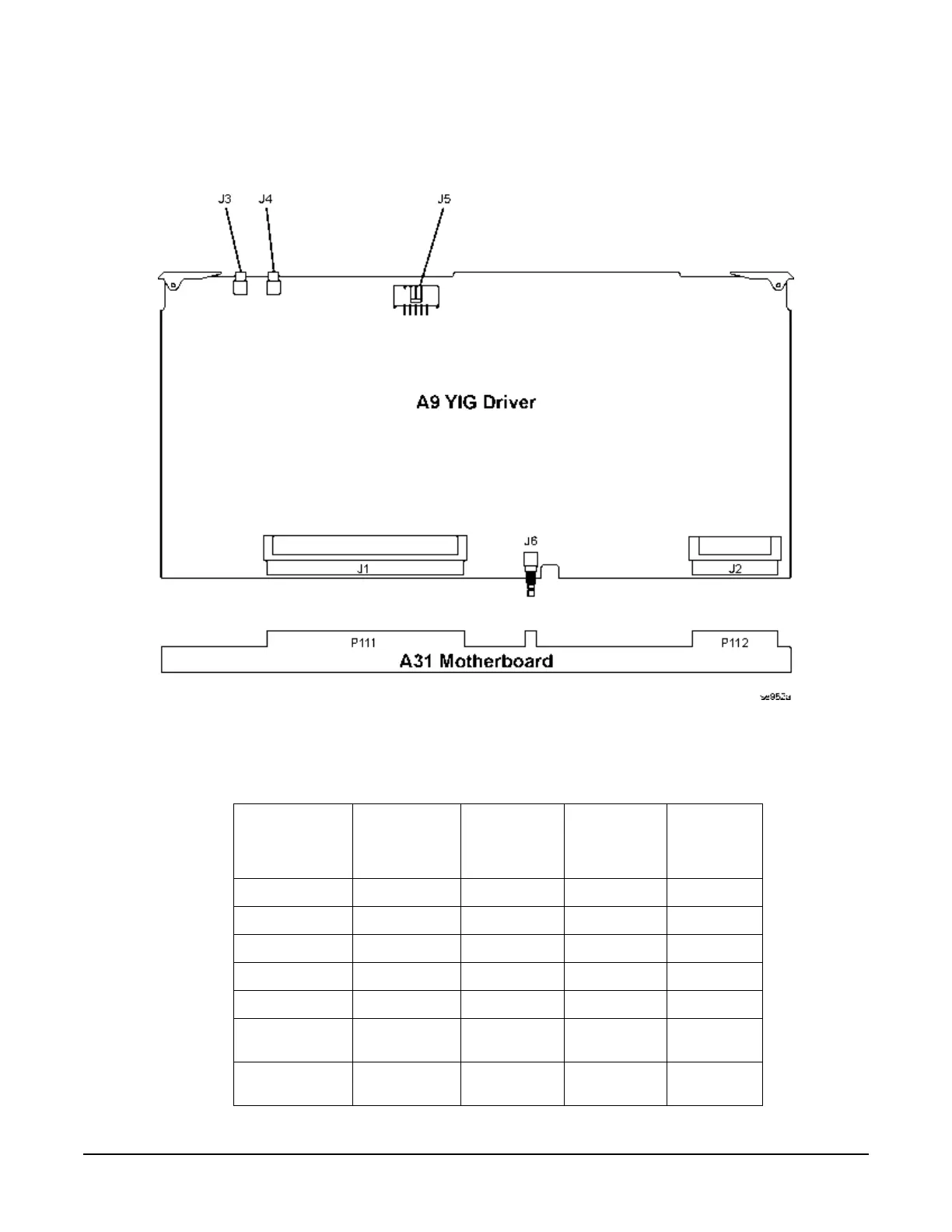

Self-Tests 6xx: A9 YIG Driver Self-Test Errors
Figure 1-5
Before proceeding to the reported self-test error code, check the voltages in Table1-20. If any
voltages are out of specification troubleshoot the supply problem first.
Table 1-20
Supply
Voltage
(Vdc)
Connector
Pins
Minimum
Value
(Vdc)
Maximum
Value
(Vdc)
Origin
+32 P112-6 +31.04 +32.96 Main Supply
+15 P112-5, 30 +14.55 +15.45 Main Supply
-15 P112-4, 29 -14.55 -15.45 Main Supply
+5.2 P112-3, 28 +5.04 +5.37 Main Supply
+10 P112-15, 16, 40 +10 +10.4 Main Supply
-7 P112-11, 12,
13, 14, 30
-6.86 -7.14 Main Supply
+5.2 Digital high P111-64, 65,
129, 130
+5.04 +5.36 Main Supply
