Chapter 2: Unpacking and installation
PlateLoc User Guide
Meeting Lab requirements
About this topic This topic describes the requirements for installing the PlateLoc.

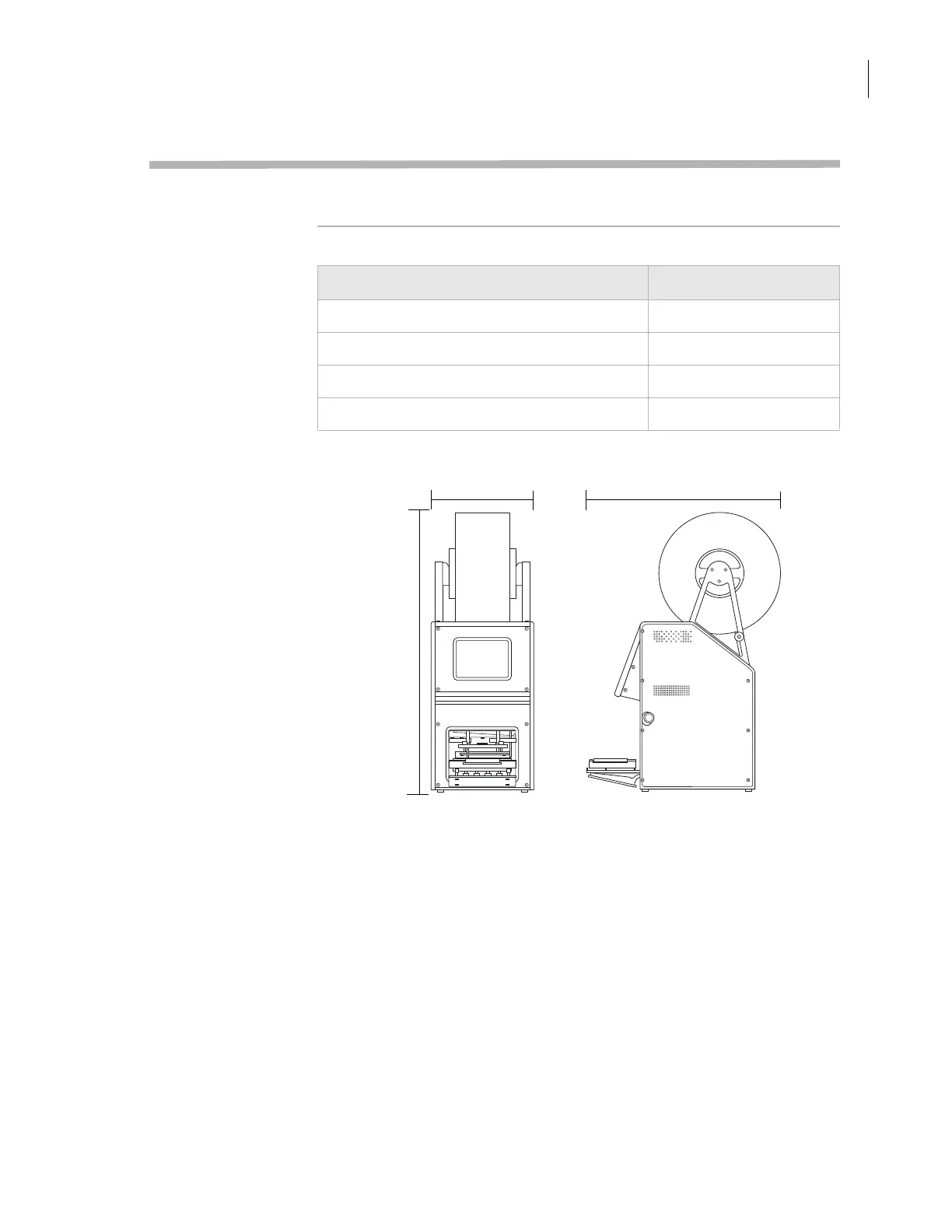

Lab space The weight and dimensions of the PlateLoc are as follows:
When planning lab space for the PlateLoc, you should consider the
following:
❑ Make sure the lab bench can support the weight of the PlateLoc, and
the surface is level.
❑ Provide adequate bench space for the PlateLoc.
❑ Make sure there is sufficient clearance around the PlateLoc so that
you can reach the back of the device to turn off the power and air in
an emergency.
❑ Place the PlateLoc within 1.8 m (6 ft) of the electrical outlets.
❑ Place the PlateLoc within 4.6 m (15 ft) of the air source.
❑ Gas-Purging PlateLocs only. Place the PlateLoc within 4.6 m (15 ft) of
the argon source.
Dimension Value
We i g h t
20
kg (45 lb)
Width
21.6
cm (8.50 in)
Height (with seal mounted)
58.4
cm (23.0 in)
Depth (with door open and seal mounted)
39.9
cm (15.7 in)
21.6 cm (8.50 in)
39.9
cm (15.7 in)
58.4 cm (23.0 in)
