Chapter 3: Getting started
PlateLoc User Guide
Loading and unloading a roll of seal
About this topic This topic explains how to load and unload a roll of seal on the
PlateLoc.
Before you start Make sure you have the supplied seal-loading card.
Loading procedure To warm up or cool down the PlateLoc:
1. Make sure the PlateLoc is turned on.
2. Make sure the air is turned on (the PlateLoc door automatically
opens when you turn on the air).
3. From the touch screen
Main Menu, press Setup.
4. In the Set Parameters Menu that appears, set the Seal Temp at
30–40
°C.
5. Press Done to save the new temperature setting and return to the
Main Menu.
6. Wait for the PlateLoc to warm up or cool down to 30–40
°C.
To assemble a roll of seal on the axle and hubs:
1. Remove the seal roll, seal-roll hubs, and axle from their packaging.
2. Screw one of the hubs onto the axle.
3. Place the axle through the hole at the center of the seal roll. Make
sure the hub fits snugly against the roll.
00206

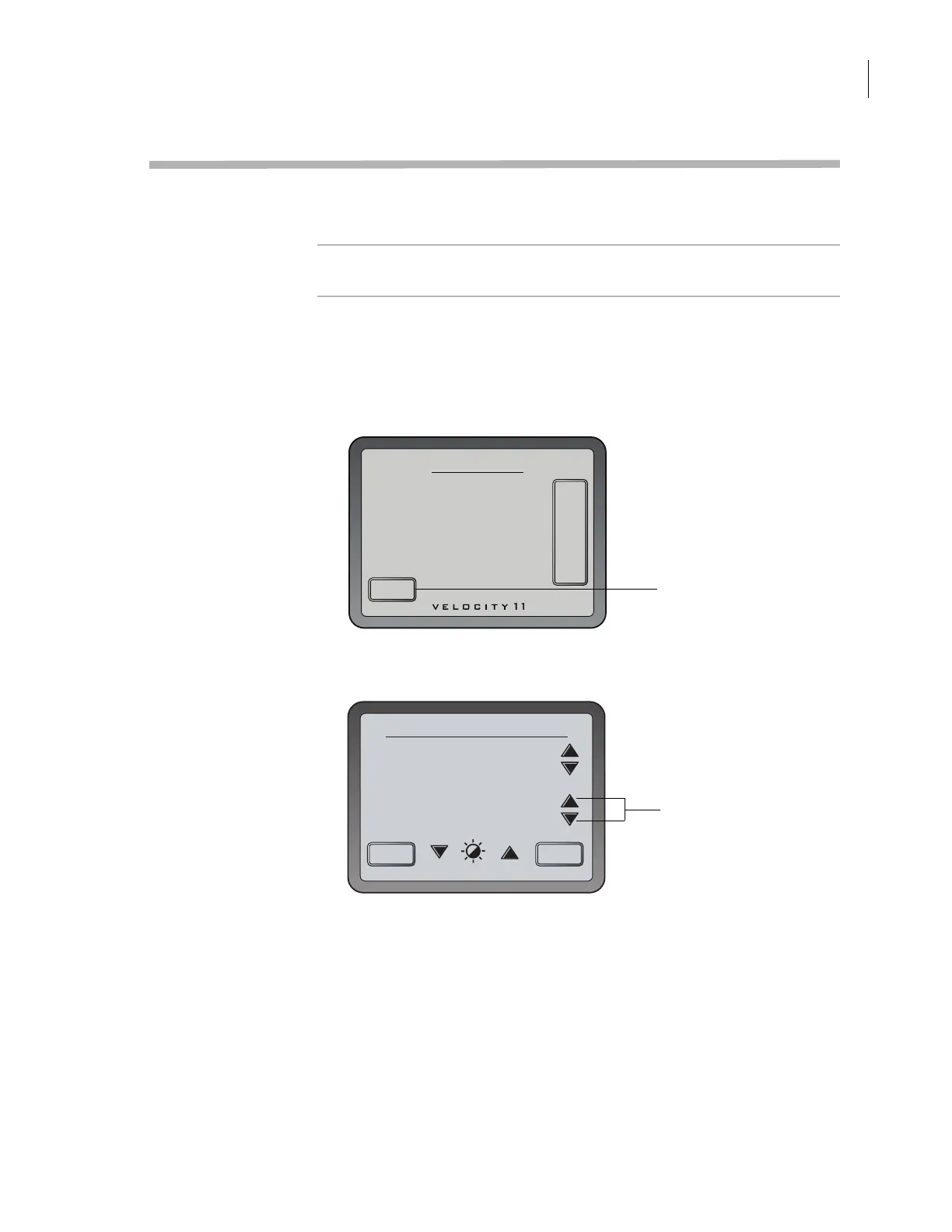

PlateLoc
screen menu 1
Main Menu
Seal Time: 1.8s
Set Time: 1.8 Seconds
Set Temp: 20 Degrees C
Air pressure: 89 psi
Seal Temp: 20°C
Status: Ready
Setup
R
U
N
Press Setup.
Press arrows to
set temperature.
00207
PlateLoc
screen menu 2
00207
PlateLoc
screen menu 2
Set Parameters Menu
Set Seal Time: 1.8s
Version 3.7.2 Cycle count: 63779
Set Seal Temp: 35°C
Service Done
