Chapter 3: Getting started
PlateLoc User Guide
54
4. Screw the second hub onto the axle so that the roll is firmly secured
between both hubs.
5. With scissors, cut off any wrinkled or torn material from the end of
the seal so that the end of the seal has a clean, straight edge.
!! DAMAGE HAZARD !!
The PlateLoc will not seal plates
properly if the seal is wrinkled or torn.
To mount the seal roll on the seal-roll supports:

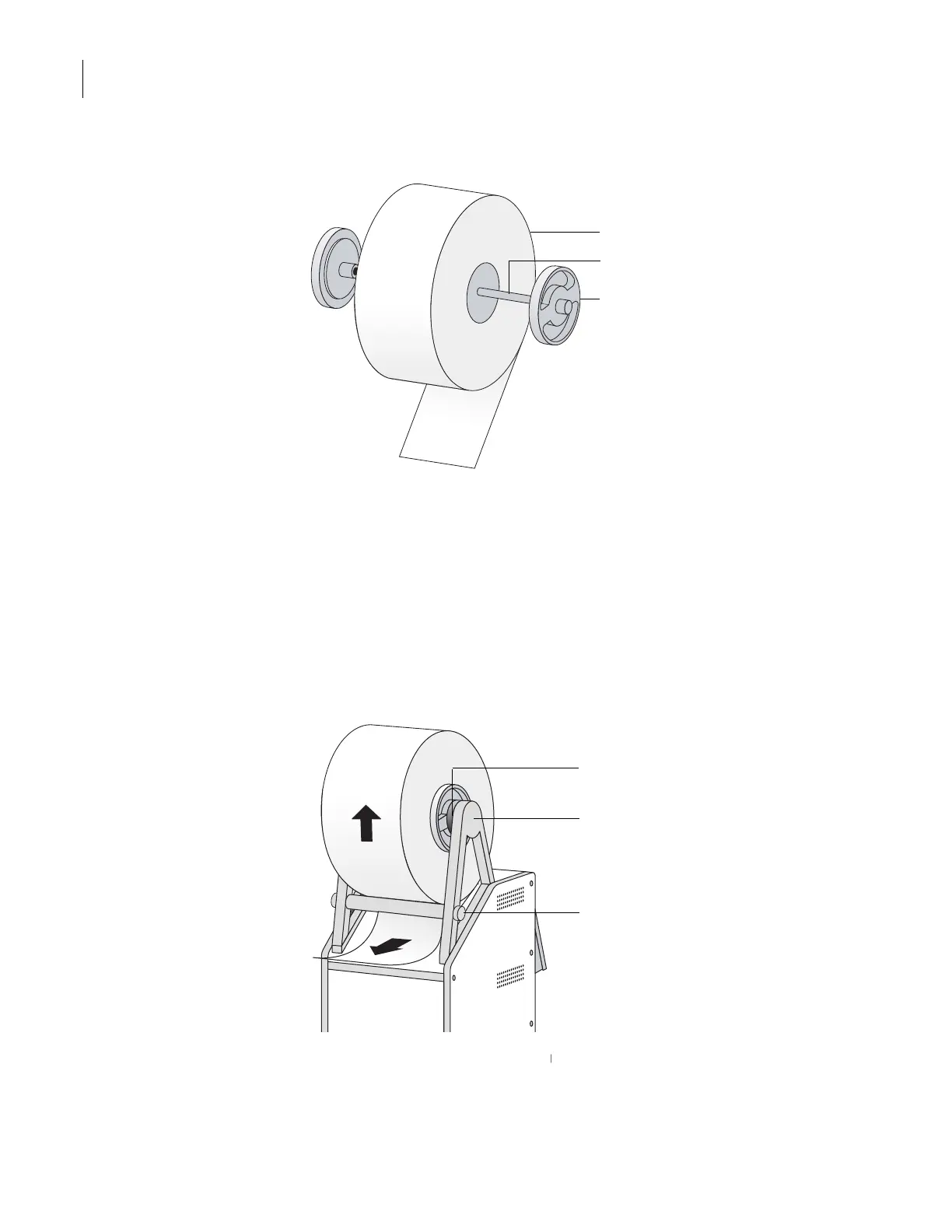

1. Orient the roll and set the assembled seal roll onto the seal-roll
supports as shown in the following diagram. Notice that the end of
the seal material rolls out from under the roll.
2. Pull the seal from under the cross-beam, as the following diagram
shows.
00195
PlateLoc
seal roll
Seal roll
Seal-roll hubs
Seal-roll axle
Back view
Seal-roll supports
Black, spring-loaded
disks
Cross beam
