Chapter 3: Getting started
PlateLoc User Guide
Tilting and stowing the touch screen
About this topic This topic explains how to tilt or stow the touch screen on the front of
the PlateLoc.
!! DAMAGE HAZARD !!
In a lab automation system, the robot
might collide with the tilted touch screen.
If you installed the PlateLoc in a lab automation system, and you do not
anticipate setting parameters or checking status at the touch screen, you
should keep the touch screen stowed.
Tilting the touch
screen
You can tilt the touch screen to better view the contents on the screen.
To tilt the touch screen:
1. Push down the screen-release lever on the right side of the PlateLoc.
2. Pull out the touch screen from the bottom until the screen release
clicks.
Stowing the touch
screen
You can stow the screen so that it is flush against the front of the
PlateLoc. You might want to stow the screen when the PlateLoc is not in
use, to prevent a lab automation robot from colliding into the touch
screen, or when moving or shipping the device.
To stow the touch screen:
1. Push down the screen-release lever on the right side of the PlateLoc.
2. Push the bottom of the screen until the screen release clicks. The
touch screen is in its stowed position.

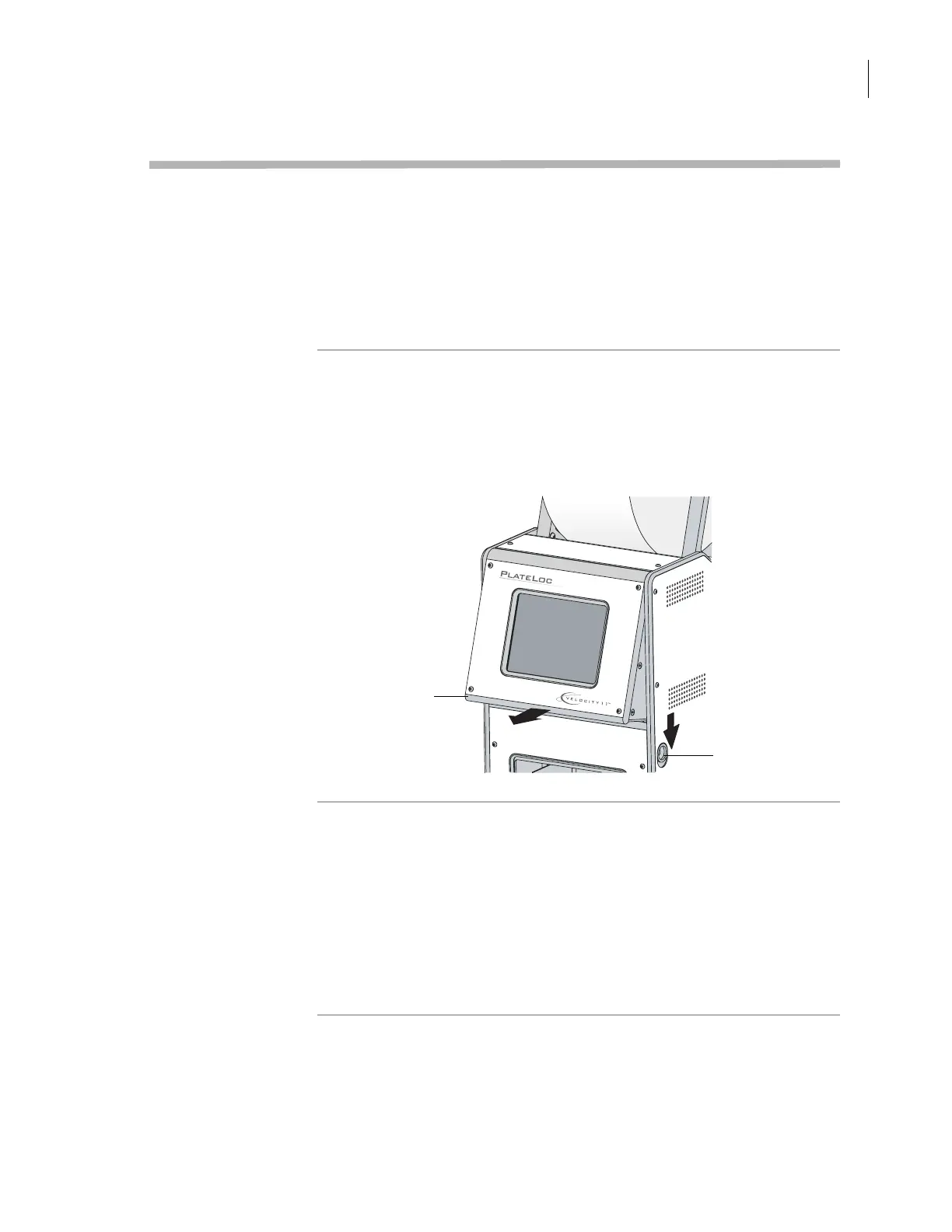

00197
PlateLoc
tilted screen
00197
Push down the lever
.
Pull out the screen.
