Chapter 1: PlateLoc introduction
PlateLoc User Guide
4
Hardware overview
About this topic This topic provides an overview of the PlateLoc hardware features.

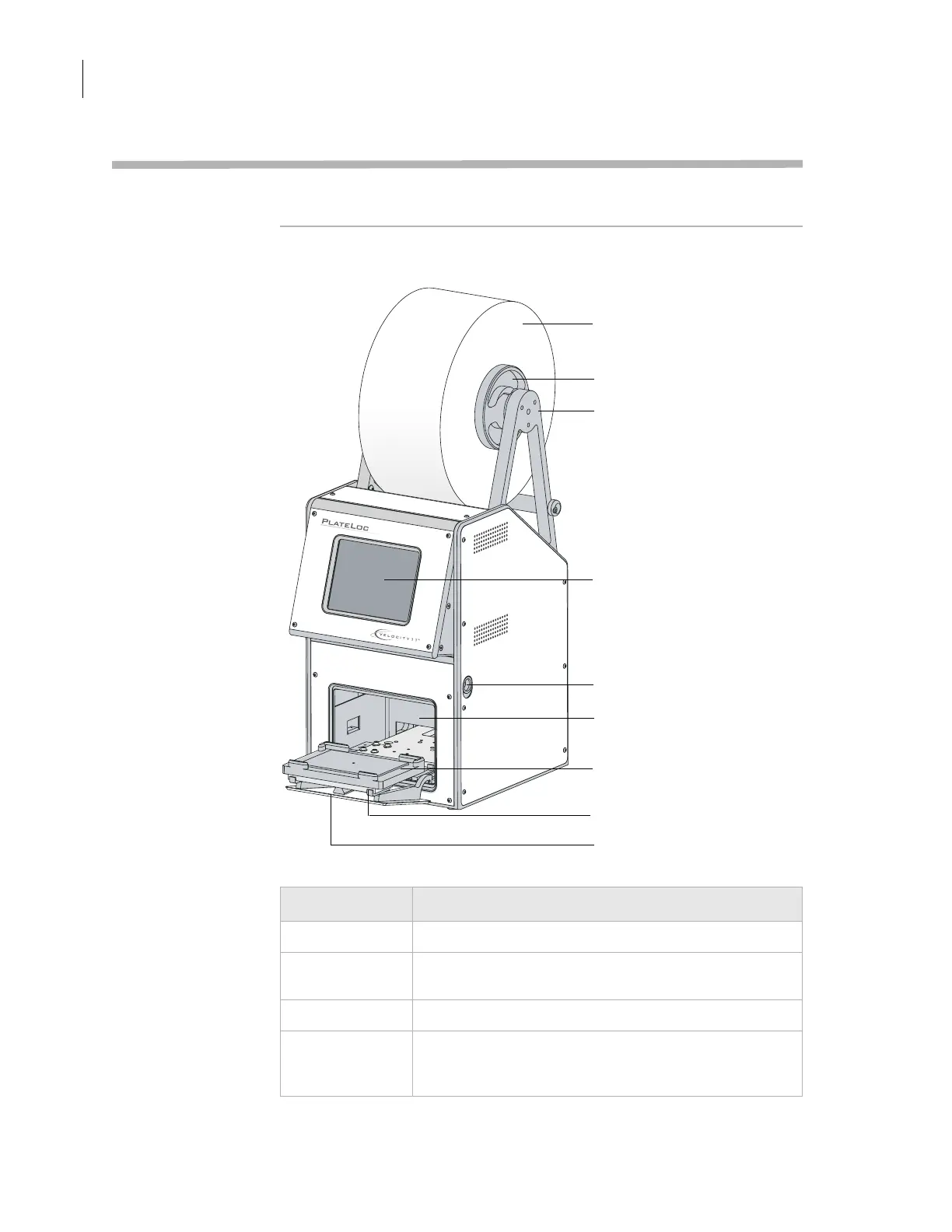

Front features The following diagram shows the front of the PlateLoc. The table below
describes the features shown in the diagram.
Seal roll supports
Touch screen
Sealing chamber
Plate stage
Plate-stage support
Door (opened)
Hub
Roll of seal
Screen release lever
Feature Description
Roll of seal The seal material.
Hubs The structures (together with the axle, not shown) that
hold the roll of seal and allow the roll to rotate.
Seal-roll supports The structure on which you mount the hubs and axle.
Touch screen The interface that allows you to specify sealing
parameters, start and stop the seal cycle, and monitor
the seal cycle for standalone operation.
