135
Settings and Adjustments
Configure on the device.
4
■ Relay Output 1 - Relay Output 2

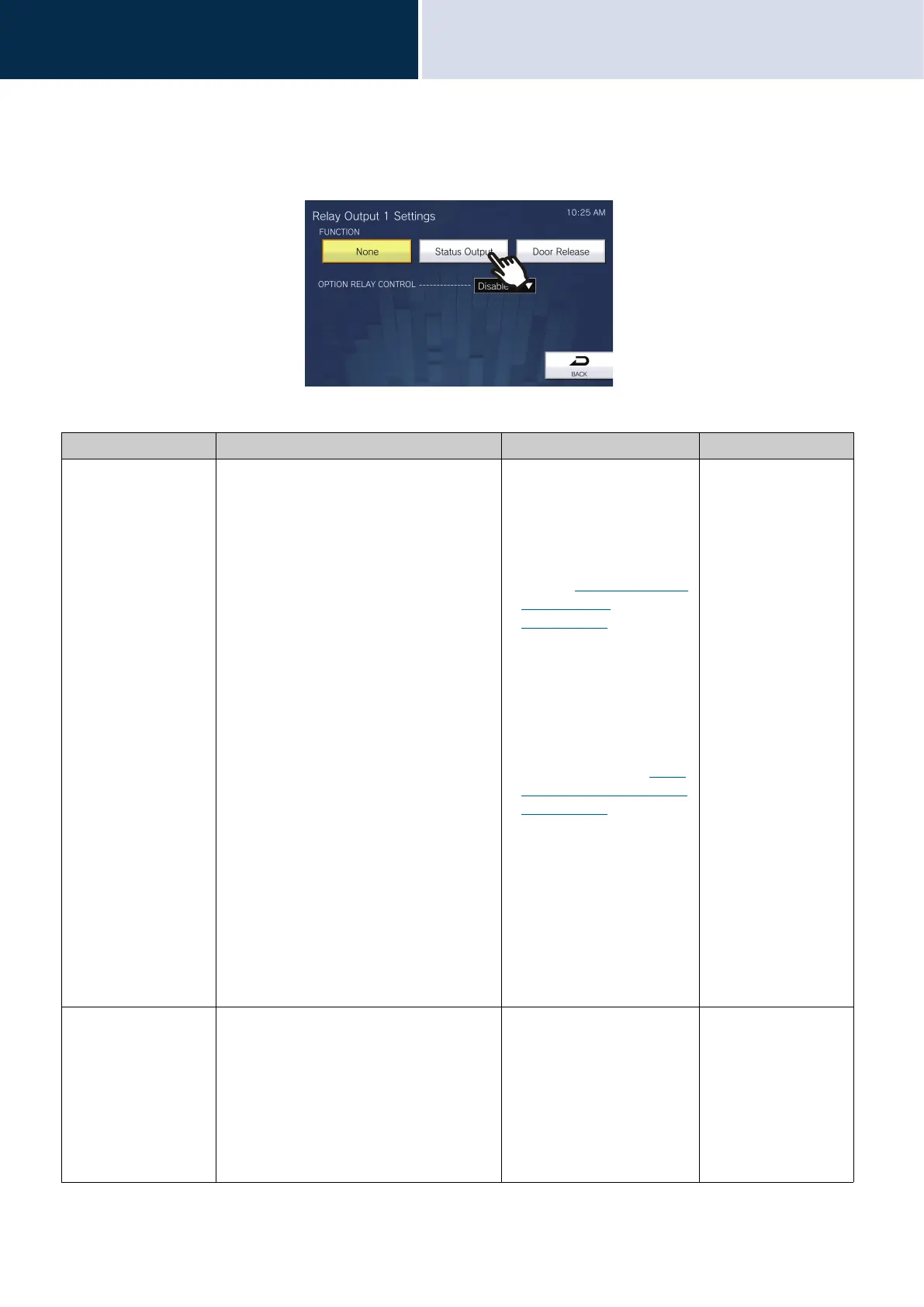

On the Relay Output Settings screen, tap [Relay Output 1] or [Relay Output 2].
• The Relay Output Settings (Advanced) screen is displayed.
Entry Description Settings Default values
FUNCTION Configure the relay output function. • None
• Status Output: Relay output
is performed based on the
operation of the station.
The setting will continue to
output during operation.
Refer to
“How to configure
Status Output
(→page 137)” for
information on how to
configure this.
• Door Release: Relay output
is performed when the Door
Release button is pressed
or the door release key is
input on the ten-key pad on
this station. Refer to
“How
to configure Door Release
(→page 138)” for
information on how to
configure this. If a door
release operation is
performed on another
station, the electrical lock
will not be released unless
"Code" is configured. Be
sure to configure "Code" via
Web configuration or the IX
Support Tool.
None
OPTION RELAY
CONTROL
Configure whether to enable control if output
terminals are controlled by operating the
Speed Dial buttons on IX-MV7-*. This can
be controlled as optional relay if set to
"Enable." If "Option Relay Control
Authentication Key" is not configured, this
will not operate even if set to "Enable." Be
sure to also configure "Option Relay Control
Authentication Key" via Web configuration.
• Enable
• Disable
Disable
To Next Page
