34

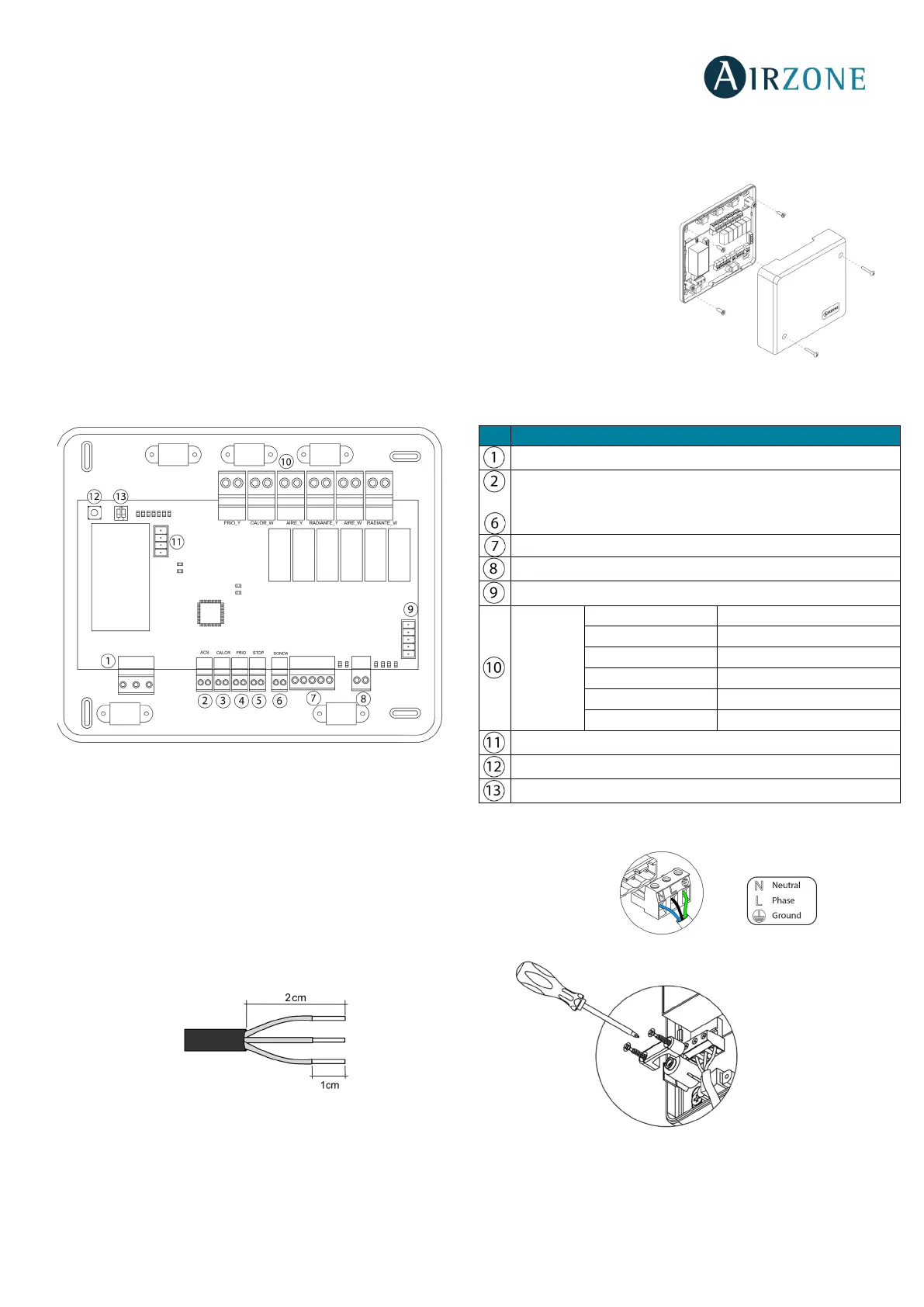

AIRZONE PRODUCTION CONTROL BOARD (AZX6CCP)
Assembly
The production control board is supplied in a patters that is screwed to Wall for a better fixing
(Fig. 64). It is should be placed and mounted in accordance with the current electrotechnical
regulations. For the mounting of the main control board, follow the following steps:
• Locate the production control board near the unit to control.
• Unscrew the cover securing the back part to the wall.
• Make all the connections and screw the cover again.
Connection
It connects to the domotic bus of the main control board (Fig. 65).
Fig. 65
Power supply connector
This connector powers the main control board and all the elements connected to it.
Externally powered at 110/110/230 Vac. It is connected through a 3-pin terminal.
Attach the wires with the terminal screws following the color code (Fig. 66). For
added security, secure the wires using the turret (Fig. 67).
Fig. 67
Important: According to the current local and national regulations, it is mandatory to add a switch (or other element to
disconnect the system) to the external supply wiring so that a constant separation between poles is guaranteed. The system
will restart automatically if the supply is eventually turned off.
…
Digital inputs
Control
relays
