Chapter 13: Appendix
Page 191
Installing the Options—To Service Technicians
CAUTION: .
These servicing instructions are for use by qualified personnel only. To reduce the
risk of electric shock, do not perform any servicing other than that contained in the
Operating instructions unless you are qualified to do so. Refer all servicing to quali-
fied service personnel.
The MPC2000XL can accommodate several options. These are the IB-M208P 8 individual out-
puts digital Input/Output, the IC-M2TC SMPTE I/O, the EB16 multi-effects processor and memory
expansion.
Important Note:
Consult your AKAI professional dealer on installation of any options (including memory) to
the MPC2000XL. Self-servicing may cause malfunction of components or the instrument
itself. AKAI professional does not guarantee against the unit's malfunction, damage or any
loss caused by self-servicing or improper operation.

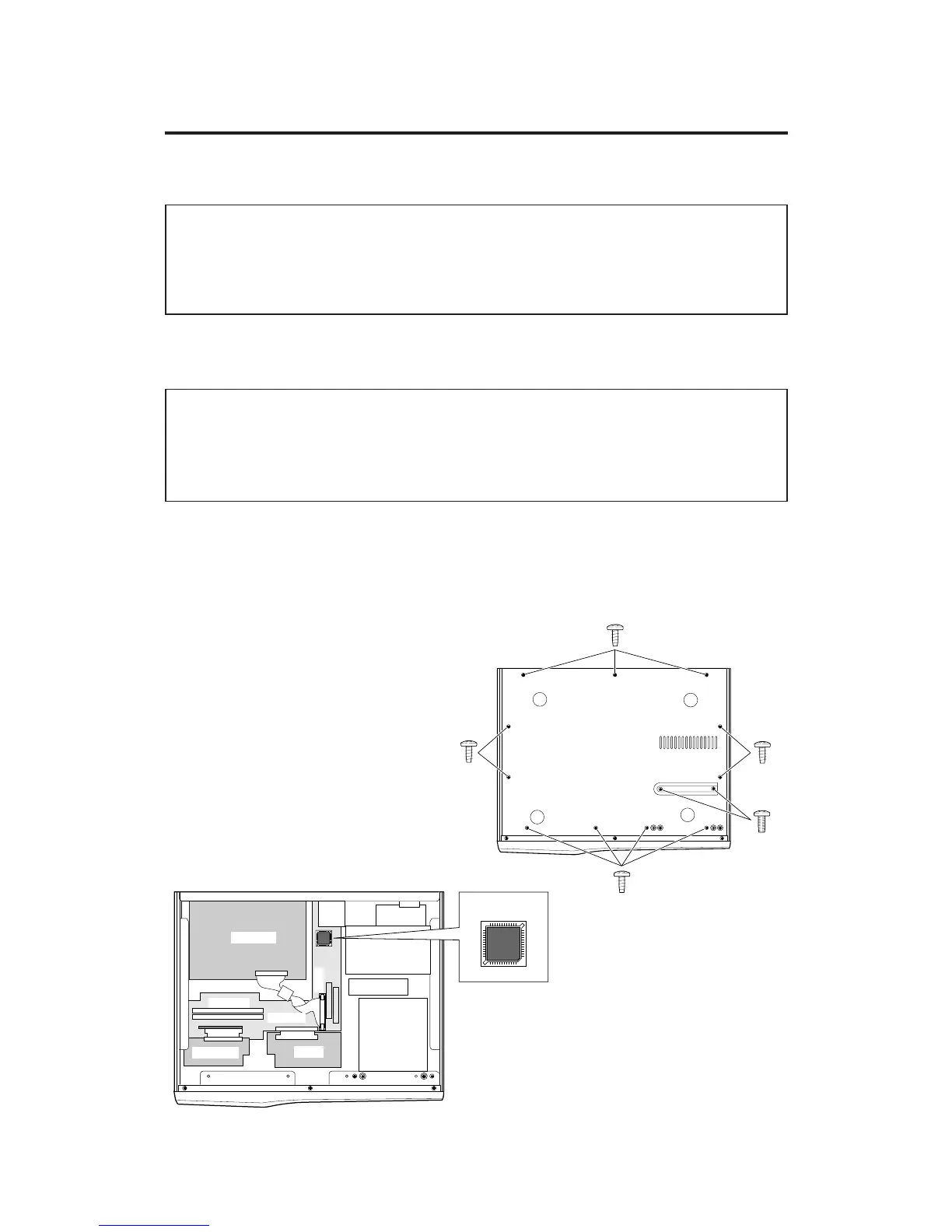

Locations of the MPC2000XL Option Boards
SMPTE IC chip (IC-M2TC), Effect Board (EB16), Flash ROM (FMX008M), 8 Individual Output with
digital I/O (IB-M208P), Simm Memory Board (S3SM16).
Disconnect the power cable from the MPC2000XL before doing any work on the
MPC2000XL!
PC MAIN
FMX008M
EB16
IB-M208P
PC POWER
SUPPLY
Floppy Disk
Drive
SIMM Slot
PC Power
switch
SMPTE
(IC-M2TC)
P340
Undo the screws on the bottom plate and
remove it.
To Next Page
