Chapter 8: Mixer Functions
Page 135
Setting Up the Mixer
Hold down SHIFT and press MIXER (numeric key 7), then select “DRUM 1-4”.
The mixer display will appear.

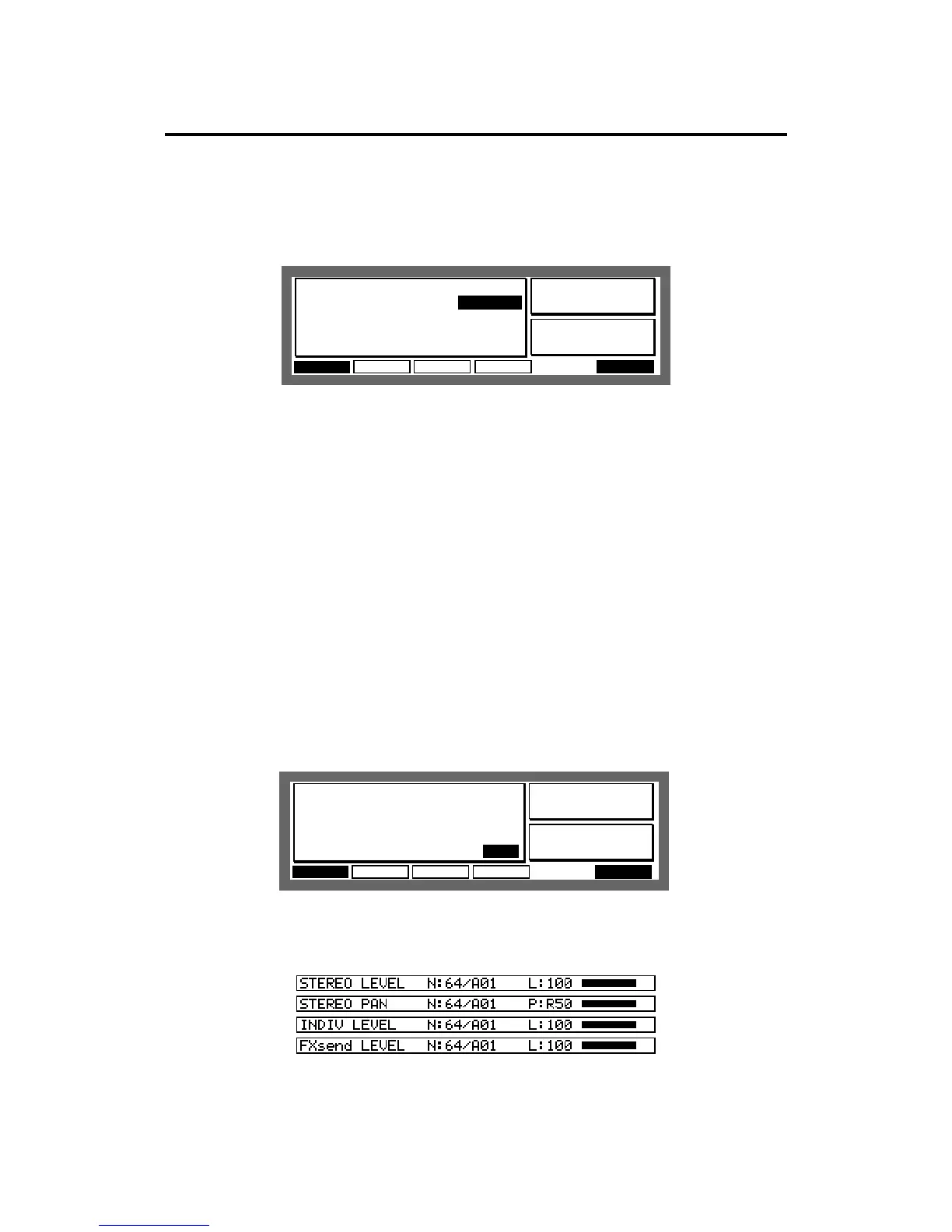

Press SETUP [F4] to display the mixer setup screen.
DRUM 2DRUM 2 DRUM 3DRUM 3 SETUP FXeditDRUM 4DRUM 4DRUM 1DRUM 1
......................................................................
.....................................
.....................................
Mixer setupMixer setup
Stereo mix sourch:Stereo mix sourch:PROGRAM
INDIV/FX source:PROGRAMINDIV/FX source:PROGRAM
Copy pgm mix to drum:YESCopy pgm mix to drum:YES
Record mix changes: NORecord mix changes: NO
Master LevelMaster Level
0dB
FX drum
Drum:1
In the Stereo mix source: field set the Stereo Output mixer and in the Indiv/FX
source: field set the Individual Output mixer. The following parameters can be selected for
either one.
PROGRAM
When you select this mode, the mixer or individual output settings change to the settings of
each program.
DRUM
This records the mixer or individual output settings within ALL PROGRAMS (the data exten-
sion when saved is .APS) which applies to all programs and sequences. When you select
this mode, the mixer or individual output settings will not change when the program or
sequence is modified and the DRUM settings will always be applied.
Copy on pgm mix to drum:
To COPY the mixer settings of the program to DRUM when the program assigned to drum
is to be changed by Program Change.
Recording a Mixer Setting to a Sequence
Record Mix Change: enables you to record the revised mixer settings to a sequence
during sequence recording.
By selecting YES in this field, you can record the mixer setting changes to the sequencer. The
mixing data recorded in the sequencer is displayed as follows in the Step Editing page and can be
edited as another MIDI event.
Mix Change data will be recorded as MIDI Exclusive. The following are the contents of the exclu-
sive data.
F0 47 00 44 45 (Event Type) (Pad Number) (Value) F7
DRUM 2DRUM 2 DRUM 3DRUM 3 SETUP FXeditDRUM 4DRUM 4DRUM 1DRUM 1
......................................................................
.....................................
.....................................
Mixer setupMixer setup
Stereo mix sourch:PROGRAMStereo mix sourch:PROGRAM
INDIV/FX source:PROGRAMINDIV/FX source:PROGRAM
Copy pgm mix to drum:YESCopy pgm mix to drum:YES
Record mix changes: Record mix changes: NO
Master LevelMaster Level
0dB
FX drum
Drum:1
