User Guide
6
1.2.2. Platform Connector Panel
There is a connector panel specifically devoted to the platform ports. This panel
includes capabilities like remote control and external device connection. A more
detailed description is given below:
• Power connector: The input must be 12 V DC, 4 A. A suitable external AC / DC
adapter for your country is provided with the tester.
• RJ-45 printer or console. Console connector. Currently there is no envisaged
application for this interface in the test equipment
• USB Master: Use a USB cable with a Master type connector (Type A, Host) for
this port. Currently this port is used for software upgrades and connection of exter-
nal storage devices.
• RJ-45 platform LAN connector: This is a general purpose Fast Ethernet connector
(10/100BASE-T). It is used for remote management of the test unit or to access to
the configuration, report and trace files through a web interface.
1.3.The Graphical User Interface
The xGenius graphical user interface is based in a 800 x 480 colour touch screen that
can be used to browse the different panels, configure the unit and start / stop tests.
1.3.1. The Home Panel
To display the Home panel, users must press the Home button (square icon on the top
right corner of the screen). The Home panel contains two sub-panels with
miscellaneous information. The main panel enables the user to configure a test, modify
the port settings or check results from the current or a past test, the auxiliary panel

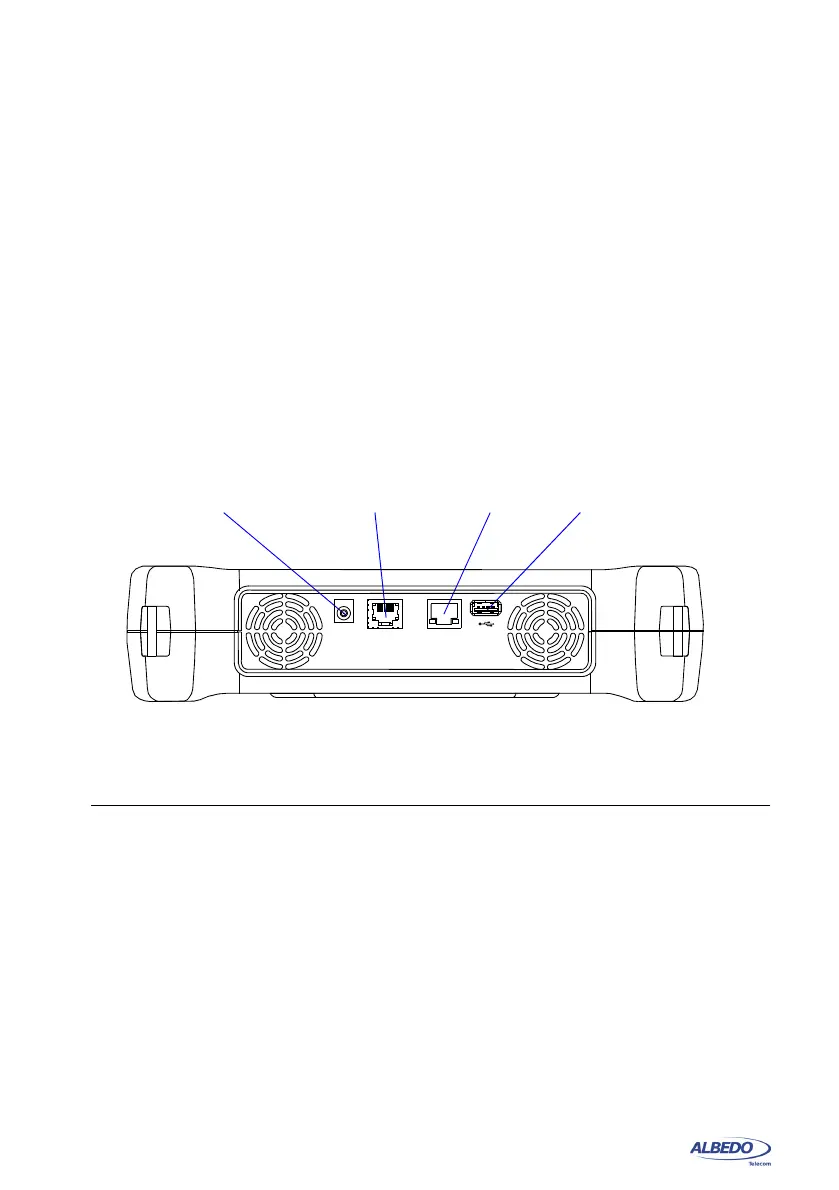

Figure 1.3: Platform connector panel. This panel includes connectivity to USB devices,
Ethernet networks and power source.
Power
connector
RJ-45
printer or console
connector
RJ-45
general purpose
LAN connector
USB
DC IN
15V Max.
P/C
Ethernet
