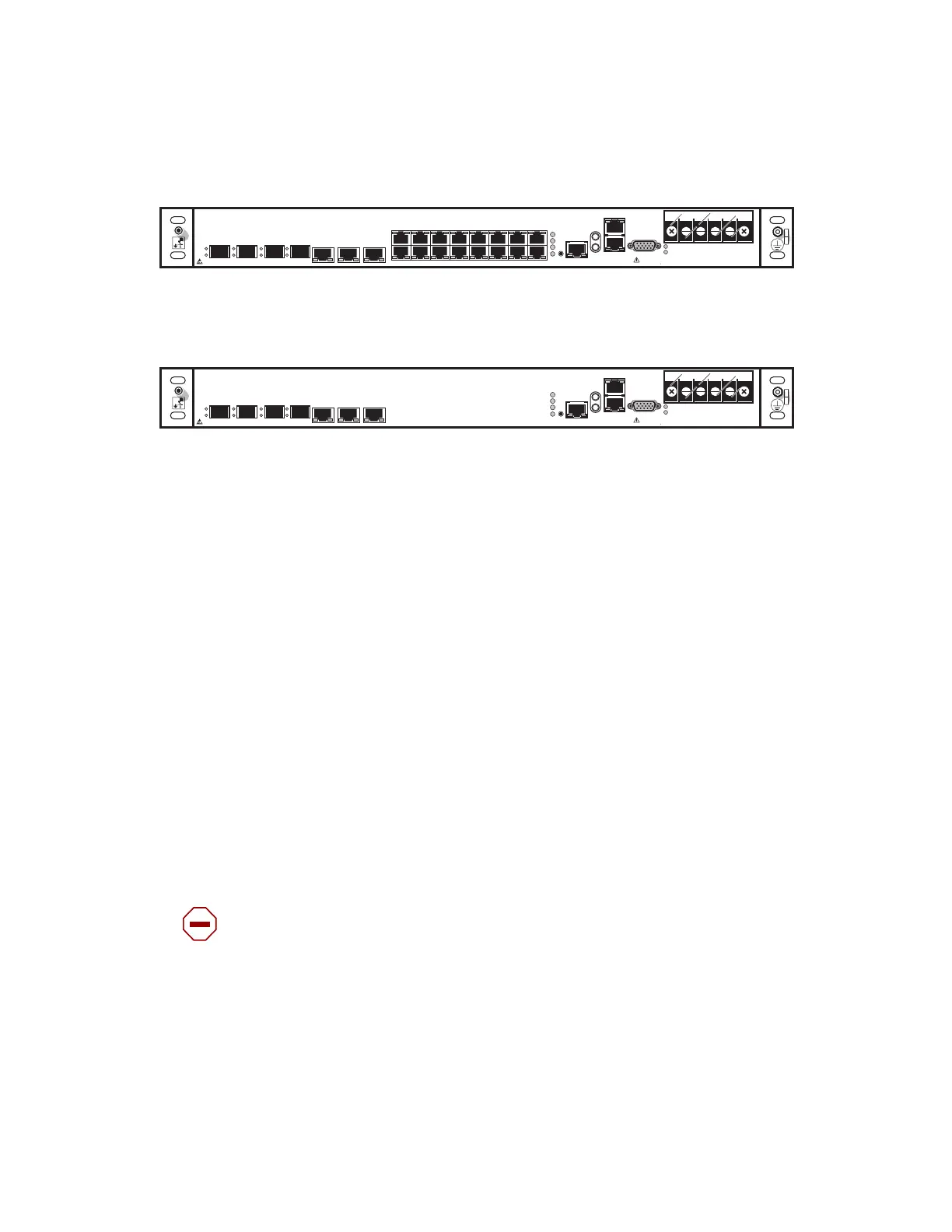

Figure 8: Faceplate: 7705 SAR-M Chassis Variant with No Module Slot and 16 T1/E1 Ports
Figure 9: Faceplate: 7705 SAR-M Chassis Variant with No Module Slot and No T1/E1 Ports
Control and Switching
Control and switching on the 7705 SAR-M provides the following main functions:
• node management interfaces to the 7705 SAR-M (Management (Ethernet) and
Console; see Figure 10)
• system synchronization and alarm interfaces for external inputs and outputs (see
Figure 10)
• routing, switching, and services functions for the entire system
Each variant of the 7705 SAR-M chassis is shipped with a 256 Mbyte compact flash memory
device that stores system boot software, OS software, and configuration files and logs. The
compact flash device is accessible via an access cover that is positioned on the left side of the
rear chassis plate. Accessing the compact flash device facilitates the commissioning process
as the device can be installed pre-programmed with the desired software and configuration
files.
22684
Crit.
7705 SAR-M
Maj.
Min.
Stat
ACO/
LT
External Alarms
Max. 50 mA
-48/+24
VDC
Mgmt
To D
Lnk Act
Sync
In
Sync
Out
BATT A
BATT B
+Batt A -Batt A +Batt B -Batt B
Console
Alarms
Link
Act
7
Link
Act
6
Link
Act
5
4321
Link
Act
Link
Act
Link
Act
Link
Act
1Stat 3Stat 5Stat 7Stat 9Stat 11Stat 13Stat
15
Stat
2Stat 4Stat 6Stat 8Stat 10Stat 12Stat 14Stat
16
Stat
22711
Crit.
7705 SAR-M
Maj.
Min.
Stat
ACO/
LT
External Alarms
Max. 50 mA
-48/+24
VDC
Mgmt
To D
Lnk Act
Sync
In
Sync
Out
BATT A
BATT B
+Batt A -Batt A +Batt B -Batt B
Console
Alarms
Link
Act
7
Link
Act
6
Link
Act
5
4321
Link
Act
Link
Act
Link
Act
Link
Act
Caution: Only qualified installers following ESD practices should access the compact flash
device. All power to the chassis must be disconnected while attempting to access the
compact flash device. The access cover must be fully secured in place before power is
applied to the chassis.
