Table 1 summarizes the physical specifications for the OA-780 chassis.
Table 1: OA-780 Chassis Physical Specifications

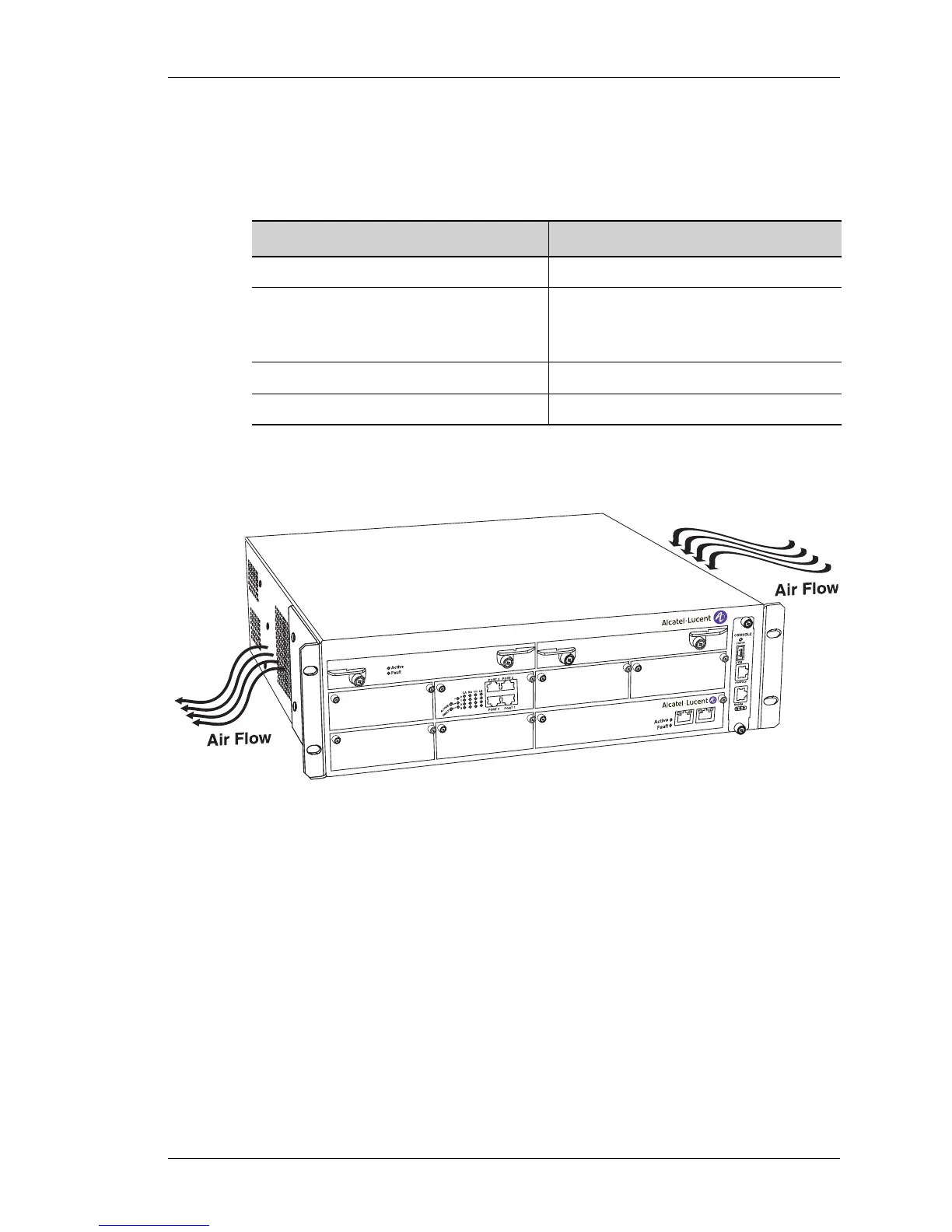

Figure 2 shows the air flow pattern through the OA-780 chassis.
Figure 2: Air Flow Through the OA-780
Parameter Value
Chassis height 5.2-inch (13.3 cm)
Chassis width 17.5-inch (44.5 cm)
19.5-inch (48.3 cm) with rack mount
brackets
Chassis depth 17-inch (43.2 cm)
Chassis weight 50 lbs (22.7 kgs) maximum configuration
OmniAccess 780
OA7-SF
OA7-T1E1-4
OA7-SE
Port 0
Port 1
