T
HE OA-780 CHASSIS
The OA-780 chassis is a rigid sheet metal structure that houses the other
hardware components. The 3 rack-unit (RU) chassis has a front panel, a rear
panel, and perforated side panels for air flow.
The chassis is of 5.25-inch (13.3 cm) height, 17.5-inch (44.5 cm) width, and 17-
inch (43.2 cm) depth. It weighs approximately 50 lbs (22.7 kgs).

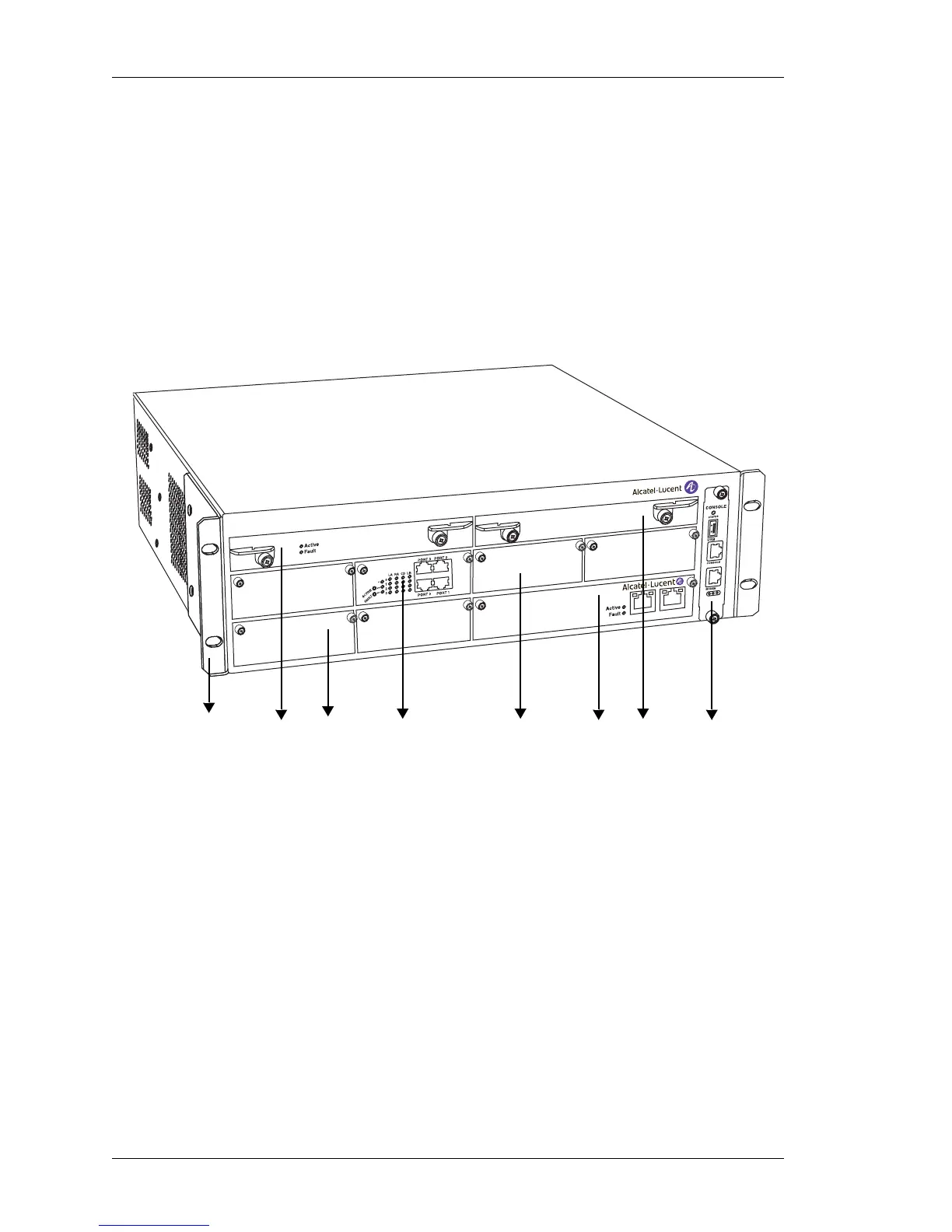

Figure 1 shows a OA-780 chassis.
1. Switch Fabric
2. Switch Fabric Filler
3. T1E1 Line Card
4. Line Card Filler
5. SE
6. Fan Tray
7. Rack Mount Flange
Figure 1: The OA-780 Chassis
OmniAccess 780
OA7-SF
OA7-T1E1-4
OA7
-SE
Por
t 0
Port 1
7
4
1
2
4
5
6
3
