Hardware Overview
Except on the first page, right running head:
Heading1 or Heading1NewPage text (automatic)
13
Alcatel-Lucent
Beta Beta
OmniAccess 780 Hardware Users Guide
SLOT NUMBERS
The slots in front panel are numbered 0 through 3, from left to right on the top row,
4 through 7 from left to right on the bottom row, 24 and 25 for the left and right
Switch Fabric cards. The slots in rear panel are numbered 22 and 23 for each
power tray on the rear panel.
The table below lists the slot number and the component associated with it.

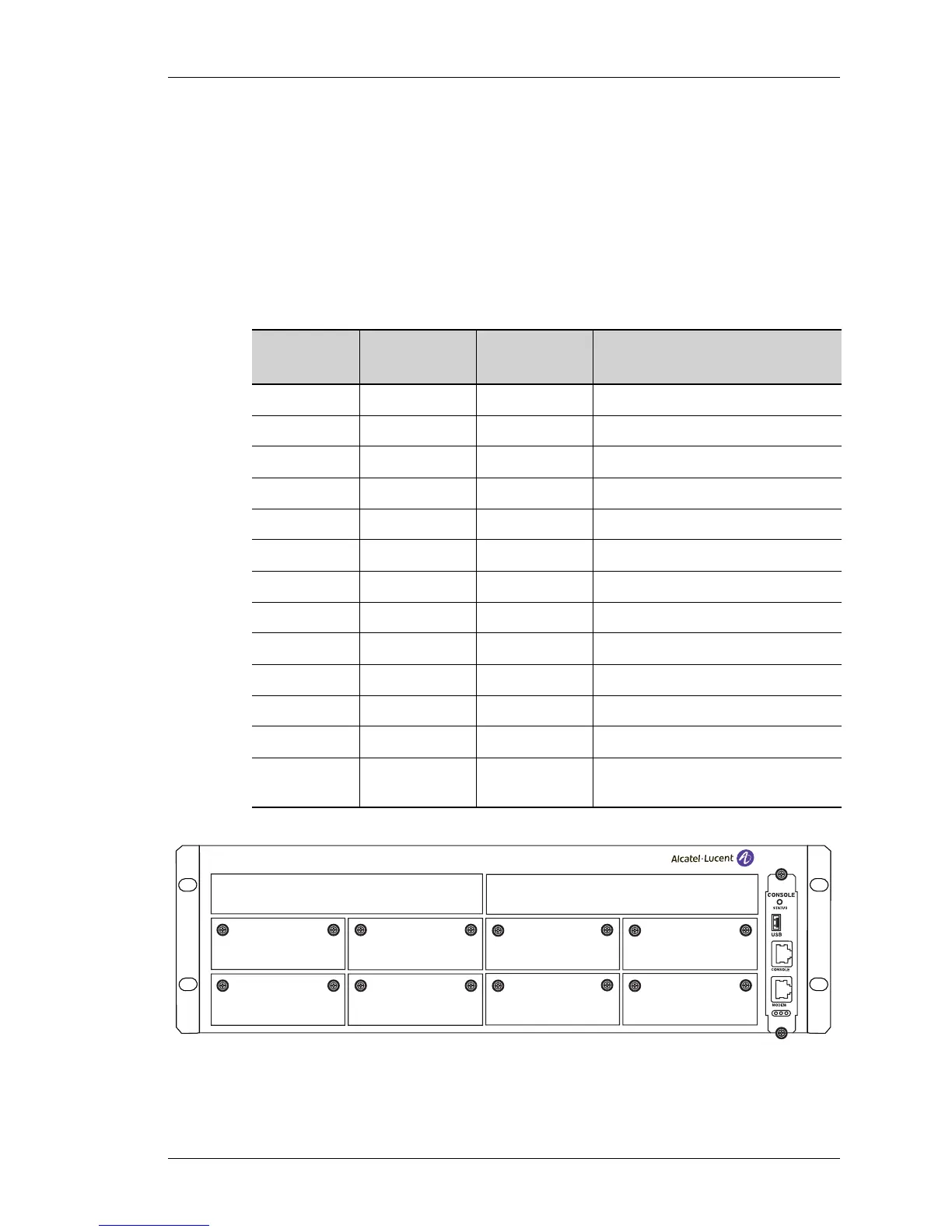

Table 2: Slot Numbers
Figure 5: OA-780 (8-Slot Chassis)
Slot Number Location Slot Type
Card Associated With the Slot
Number
0 Front Panel Single Line Card
1 Front Panel Single Line Card
2 Front Panel Dual SE
3 Front Panel Dual SE
4 Front Panel Single Line Card
5 Front Panel Single Line Card
6 Front Panel Dual SE
7 Front Panel Dual SE
22 Rear Panel — Power Supply
23 Rear Panel — Power Supply
24 Front Panel Dual Switch Fabric
25 Front Panel Dual Switch Fabric
26 Front Panel–
Fan Tray
——
01 2 3
7654
24
25
OmniAccess 780
