Hardware Overview
Except on the first page, right running head:
Heading1 or Heading1NewPage text (automatic)
30
Alcatel-Lucent
Beta Beta
OmniAccess 780 Hardware Users Guide
POWER TRAY
The power tray manages all the power requirement of the OA-780. The
OA-780 can accommodate two power trays in the rear panel. Each power supply
can handle up to 350 Watts of power consumption. Normally, the chassis will be
shipped with a single power supply tray mounted on the top row of the rear panel.
An additional power supply tray can be used for load sharing or to meet
redundancy requirements.
The power tray has two semi-circular holders on its face which helps in inserting
and removing the power tray. The power tray also has a plug and an ON/OFF
switch. The power tray is secured to the chassis using three thumb screws.

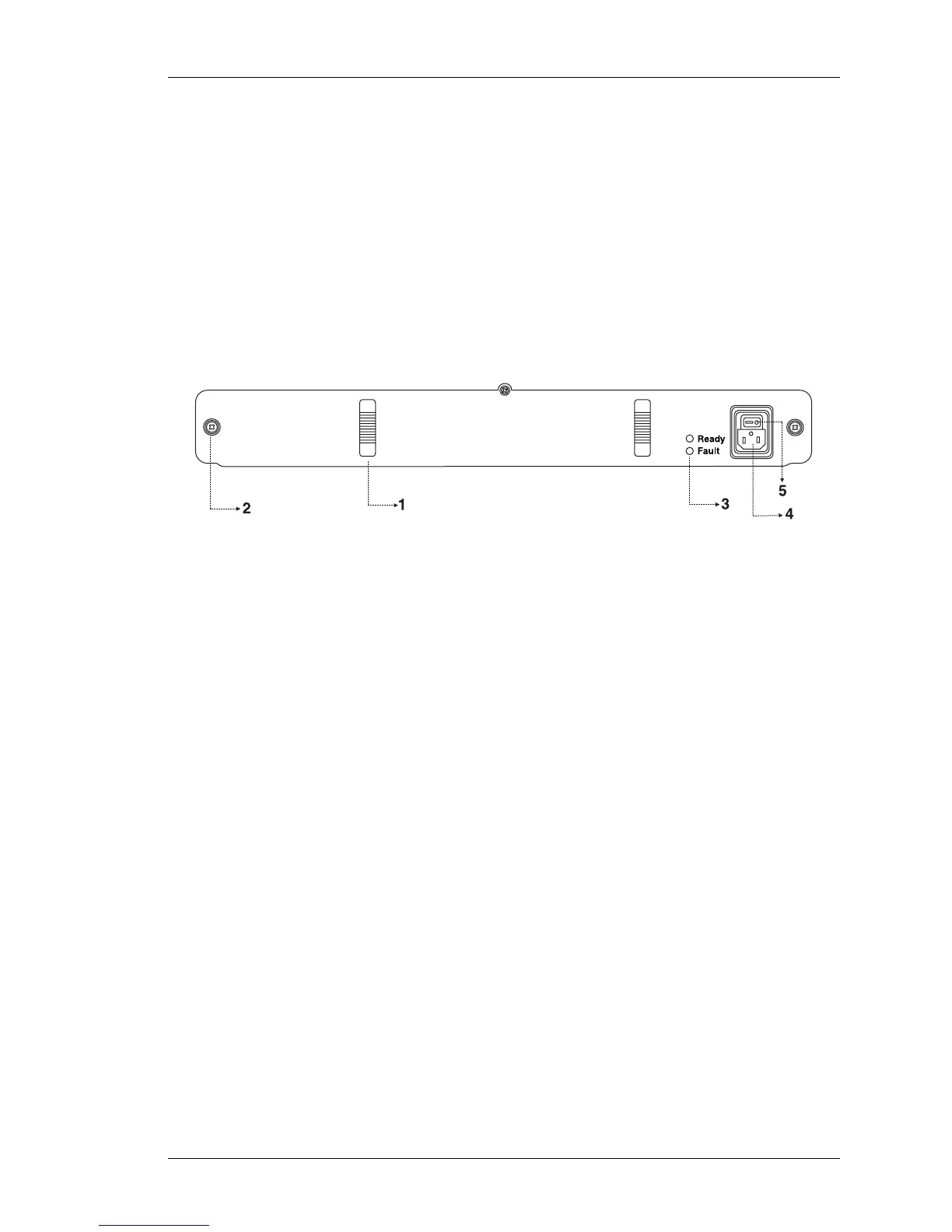

1 Semi-circular Holder
2 Thumb Screw
3 Power Tray LEDs
4 Power Plug
5 Power ON/OFF Switch
Figure 13: Power Tray
OA7-PS - AC
