OmniAccess 780 Hardware Users Guide
Alcatel-Lucent
The front panel houses Switch Fabric, SE, line cards, fan tray, status LEDs,
communication ports, and card ejectors. The communication ports on the front
panel provide LAN/WAN and console connectivity to the system. The LEDs on the
front panel show the status of connectivity and activities of the system
components. All the cards in the front panel dock into the respective slots in the
back plane. The front panel also houses rack-mount flanges that help the system
to be loaded on to a 19-inch rack.

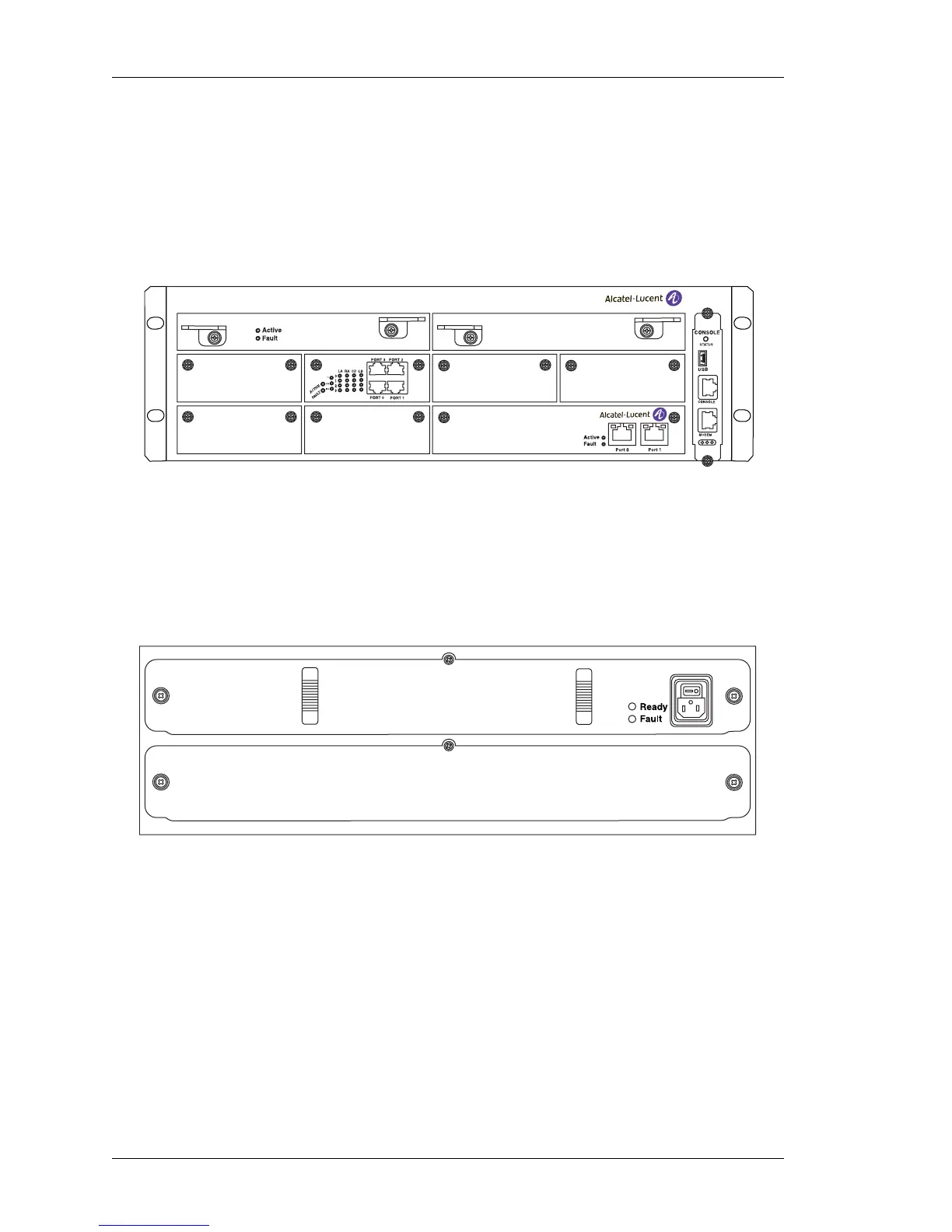

Figure 3: Front Panel
The rear panel houses the power supply tray and provides the power supply
connectivity to the system. The rear panel accommodates two power trays for
load sharing and power redundancy.
Figure 4: Rear Panel
OmniAccess 780
OA7-SF
OA7-T1E1-4
OA7-SE
OA7-PS-AC
