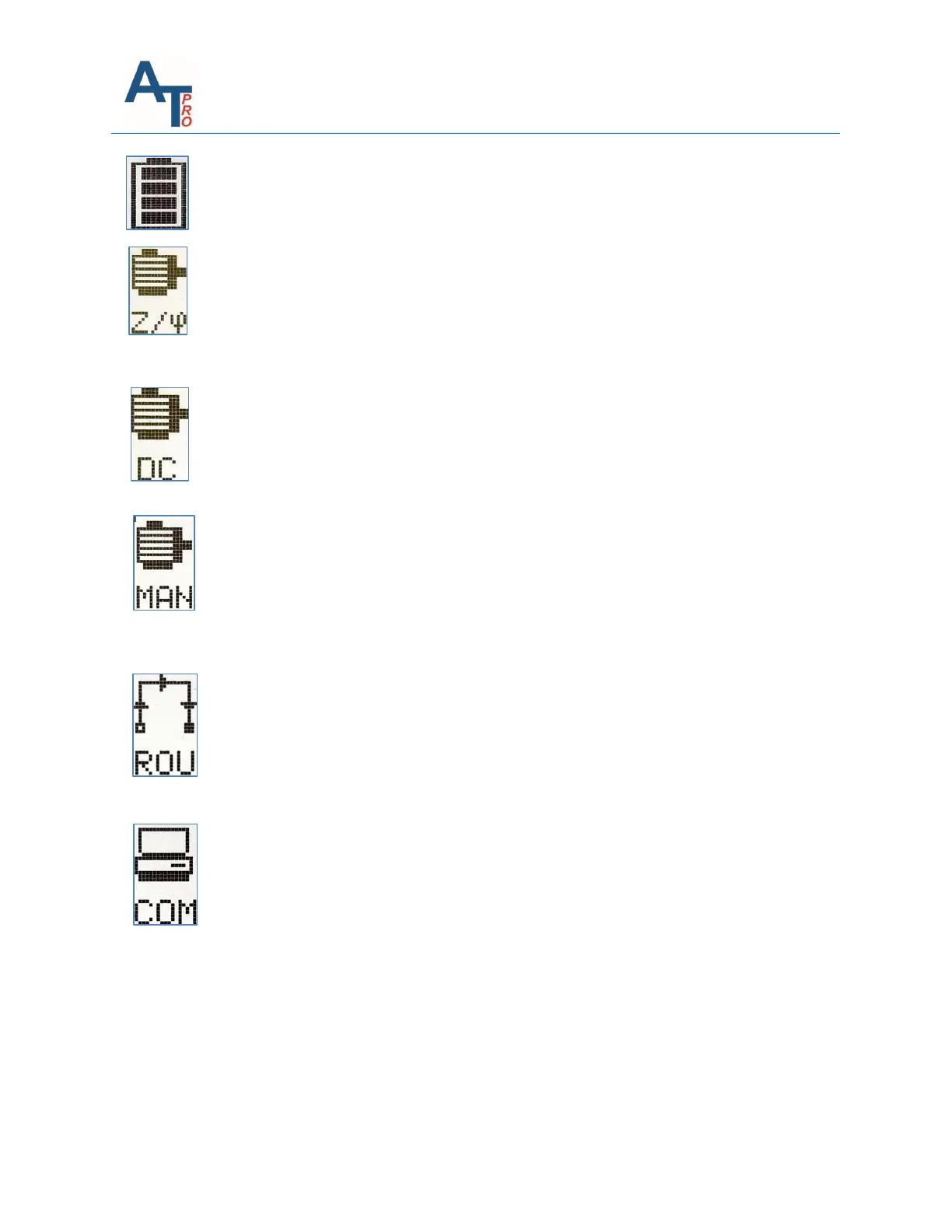

Battery Charge Indicator – Provides indication of the status of the battery charge. See the
Battery section for further information about battery care.
Z/ – Performs deenergized winding tests, insulation resistance to ground, DF &
capacitance of winding to ground tests on all types of AC 3 phase motors, generators, and
rotor compensation test. *Transformers only available with
ALL-TEST PRO 7 PROFESSIONAL.
DC – Performs deenergized winding tests and insulation to ground tests on various types of
DC motors. *DC motors and coil test only available with ALL-TEST PRO 7 PROFESSIONAL.
Two test options. "1-Phase" test accesses DF and capacitance of winding to ground,
insulation resistance to ground and other physical quantities on any single-phase motor.
"Rotor test" provides convenient way of performing rotor test for rotor problem
diagnostics for 3-phase motors. *Rotor test only available with
ALL-TEST PRO 7 PROFESSIONAL.
ROU – Directly accesses the test screens to perform motor testing using predetermined
routes setup downloaded from the MCA PRO software. *Route based testing standard
with ALL-TEST PRO 7 PROFESSIONAL.
COM – Sets up the instrument into the communication mode to communicate with the
MCA software on a computer.
